27" non tilt channel

Home Owner from Toledo oregon

Jul 4, 2019 1:27 pm

Need help identifying replacement part, No no numbers on unit, metal channel 27" long, 1/2" channel width (5/8 overall width) 24# window. Photos of ends attached

2 user uploaded images

4 Replies

Bob from SWISCO

Jul 9, 2019 10:58 am

Thanks for writing in. Can you show us your balance's bottom shoe from a different angle? I want to confirm whether or not it has wings like your top nylon fitting. Also, is there any stamp code on the metal channel? If so, could you show us a picture of the stamp code? If there is no stamp, we will need the exact weight of your window sash. Many thanks.

Home Owner from Toledo oregon

Jul 12, 2019 8:22 pm

Markings:
26 4 CALDWELL

Also weighed window, 24#

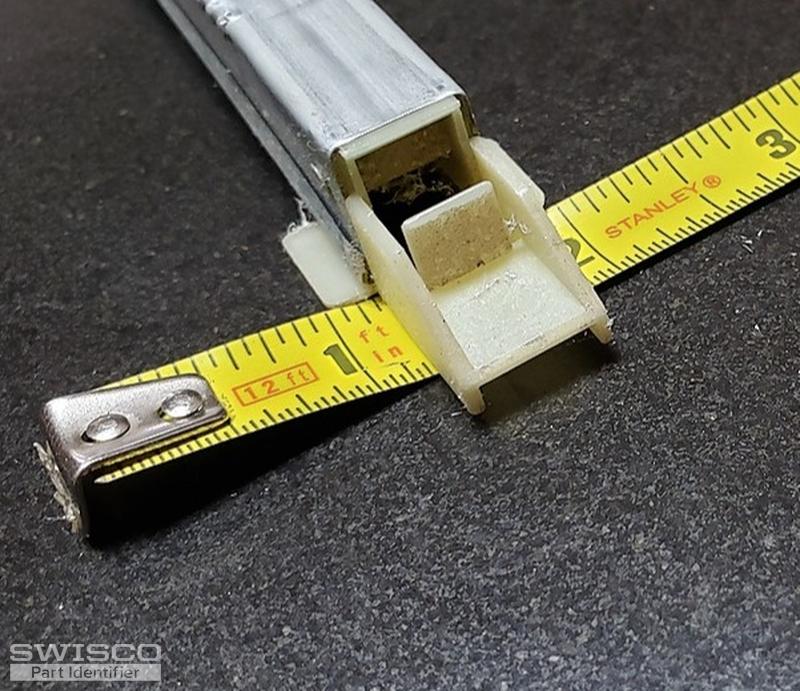

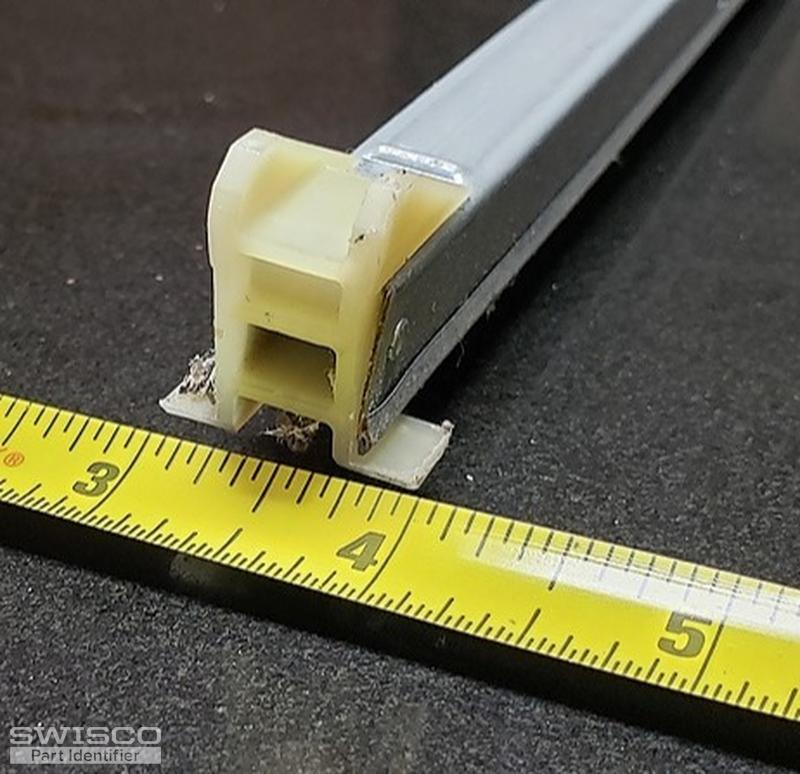

3 user uploaded images

Bob from SWISCO

Jul 15, 2019 11:49 am

Thanks for getting back to me. This is what I needed to see. This is either a S380-27 or S385-27. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You will need a stamp option of 2640.
