2730 BSI

Start a new Discussion

Quick Learner from Tigard, OR

May 20, 2025 5:31 pm

2730 BSI
28 Inches
I need to sets (fixing two windows) for a total of 4 balances

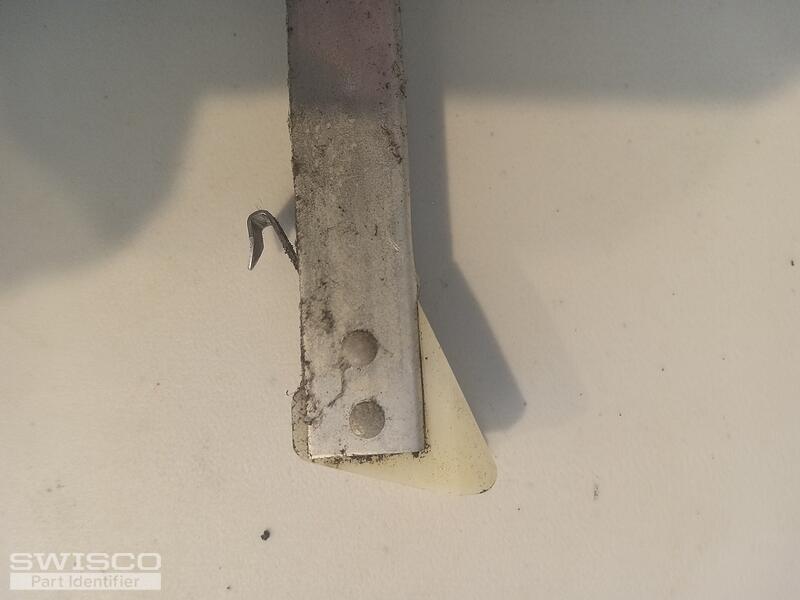

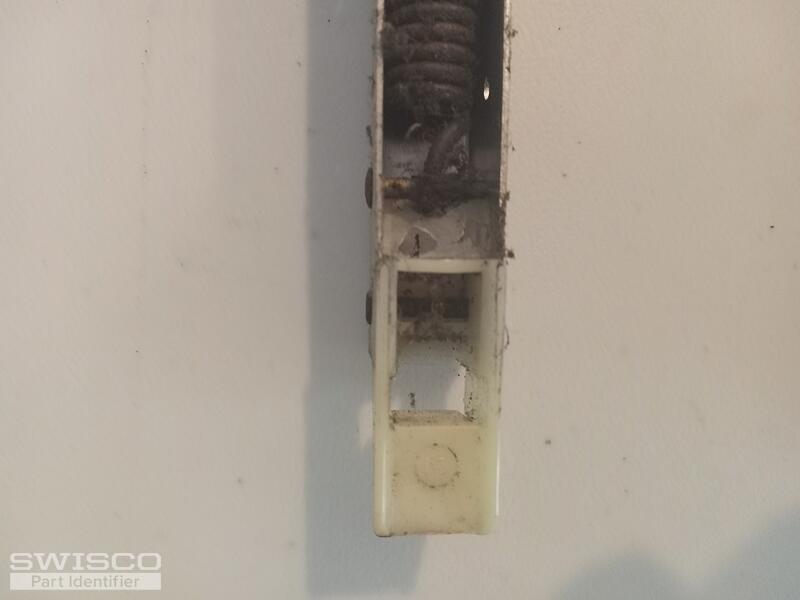

5 user uploaded images

8 Replies

Jasmine from SWISCO

May 21, 2025 1:03 pm

Hey there,

Thanks for reaching out! You'll need either the S351-28 with a 1" shoe or the S390-28 with a 1-1/8 shoe to replace your balances. You'll need to confirm the shoe's depth to determine which series is the correct replacement. Take a look at the diagram below for reference.

The stamp would be the same 2730 stamp you have.

Comparison of the S351 and S390 balance shoes.

Quick Learner from Tigard, OR

Jun 4, 2025 12:05 pm

Ours is a 1-1/8 inch foot.
I need to replace these in two windows, so I guess I need to order four?
Thanks,

Jasmine from SWISCO

Jun 4, 2025 12:54 pm

Yes, that would be correct. It is advised to replace both balances in a window at the same time.

Quick Learner from Tigard, OR

Jun 4, 2025 1:03 pm

Thanks. I ordered four, for the two windows.
I appreciate your help!

Jasmine from SWISCO

Jun 4, 2025 1:20 pm

Okay, great! It was my pleasure to assist. Please don't hesitate to reach out with any additional hardware repair questions you might have.

Have a great weekend!

Quick Learner from Tigard, OR

Jun 5, 2025 6:19 pm

Hi Jasmine,

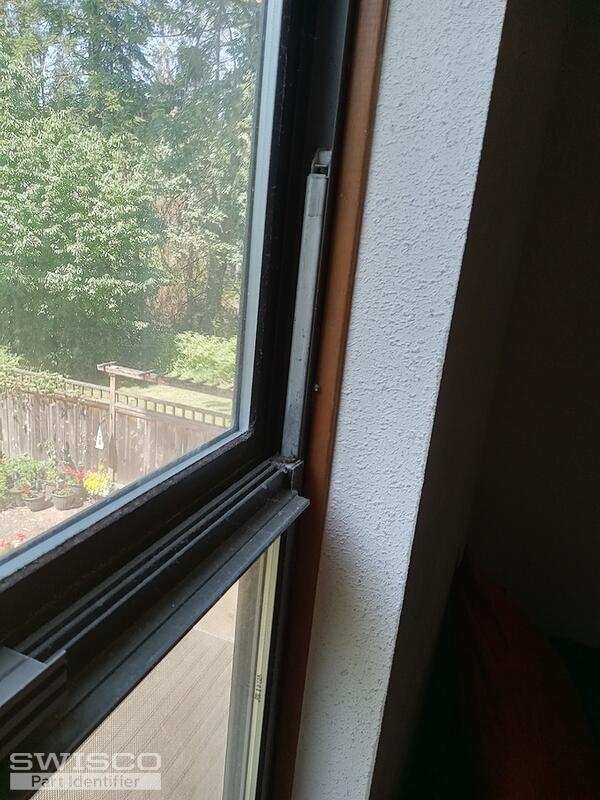

I placed the order but have a question. The old channel balance in one of the windows is jammed. Please see picture. Any suggestions on dealing with this? The window barely opens.

1 user uploaded image

Jasmine from SWISCO

Jun 6, 2025 8:43 am

You'll need to replace the top sash guide in the window, since it is likely to be damaged. There are two video tutorials below with instructions on how to repair the jammed window and replacing the top sash guides.

I'm happy to recommend replacements for the guides, but I will need to see the front and side profile of an undamaged one to identify it.

Feel free to reach out with any other questions.
