27c window channel balance

A quick learner from Granbury Tx says:

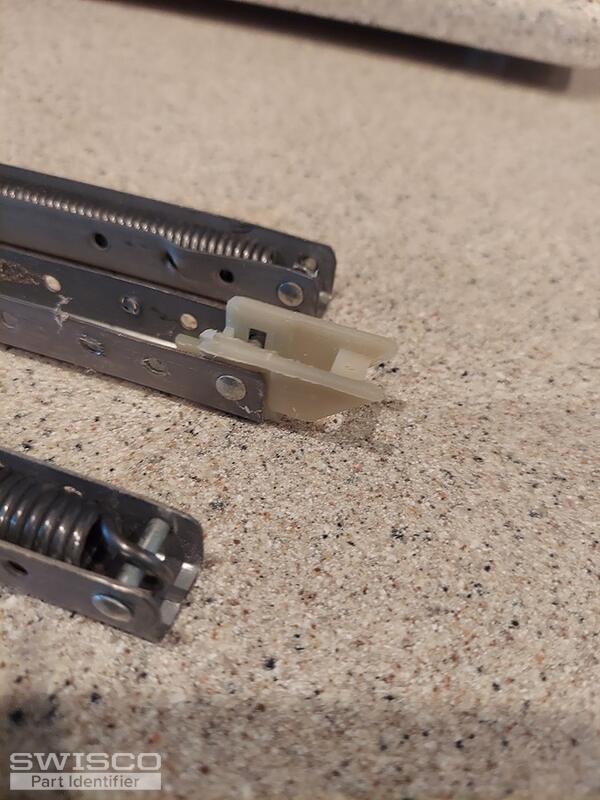

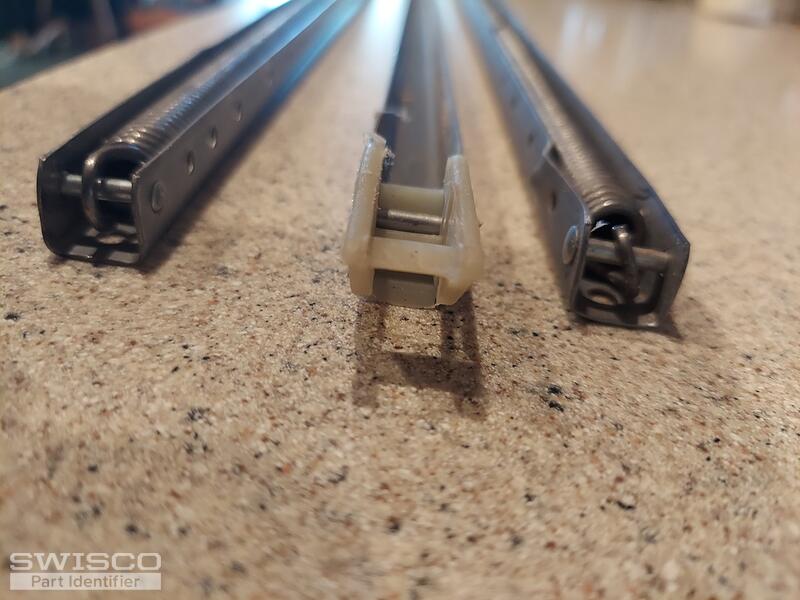

I HAVE 11 WINDOWS IN NEED OF REPAIRS
Thumbnail of the uploaded file named 20231009_121423.jpg
Thumbnail of the uploaded file named 20231009_121428.jpg
Thumbnail of the uploaded file named 20231009_121434.jpg
Thumbnail of the uploaded file named 20231009_121439.jpg
Thumbnail of the uploaded file named 20231009_121451.jpg
A quick learner from Granbury Tx says:
Channel balances # 27c 11 windows in need if repair

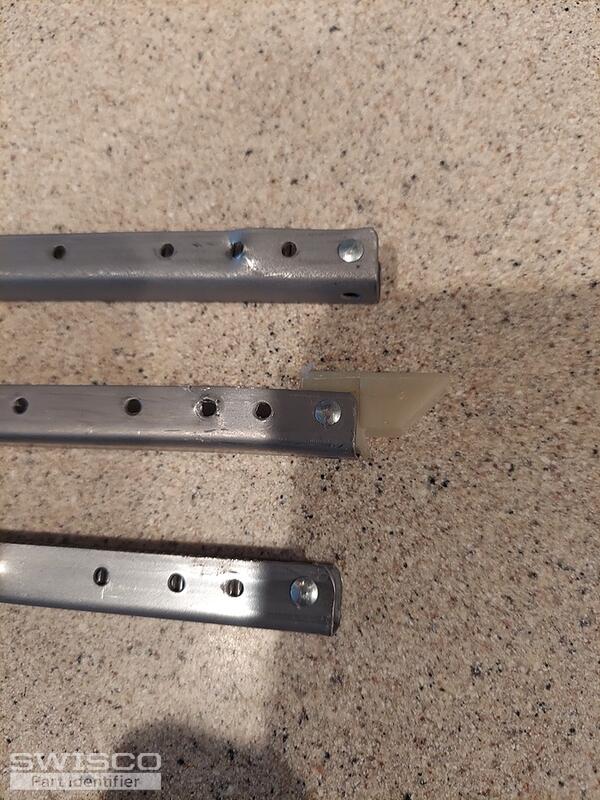

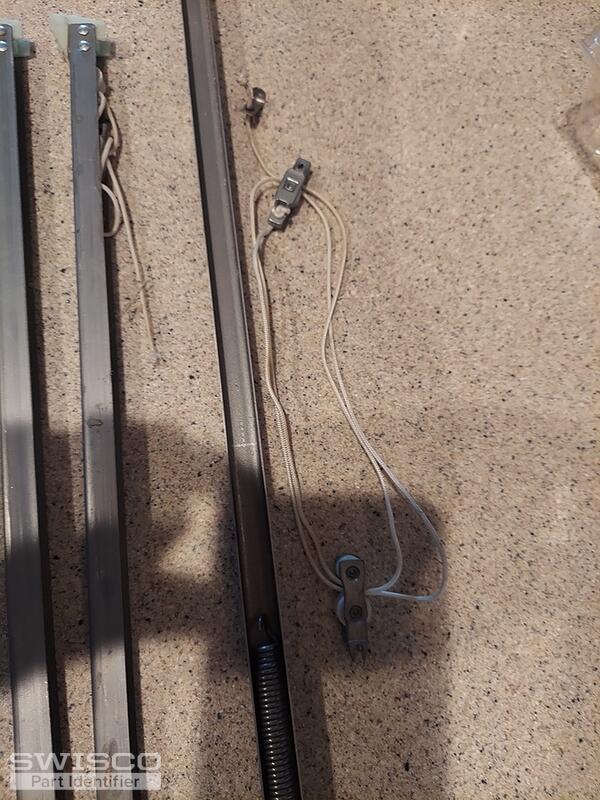

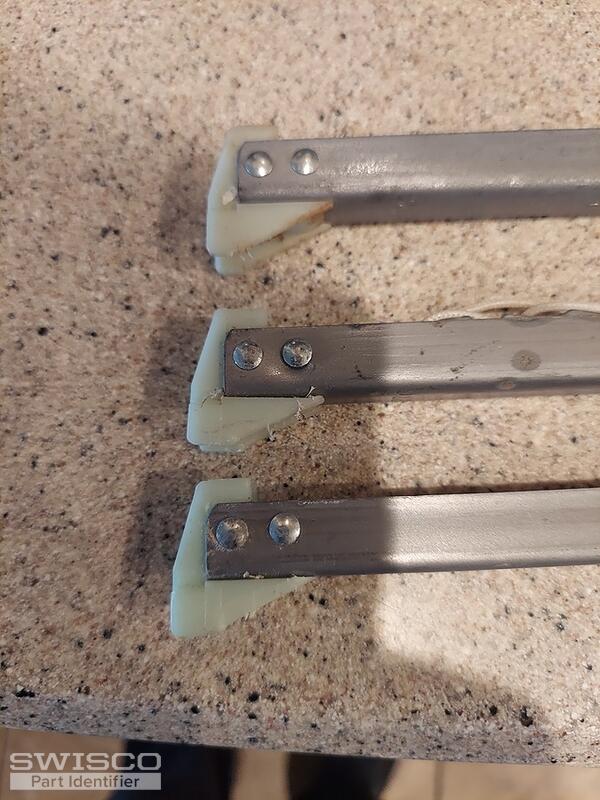

Thumbnail of the uploaded file named 16968722970901042277001439722309.jpg
Thumbnail of the uploaded file named 16968723631975534839767005074480.jpg
Thumbnail of the uploaded file named 16968724345837560769558422199285.jpg
A quick learner from Granbury Tx says:

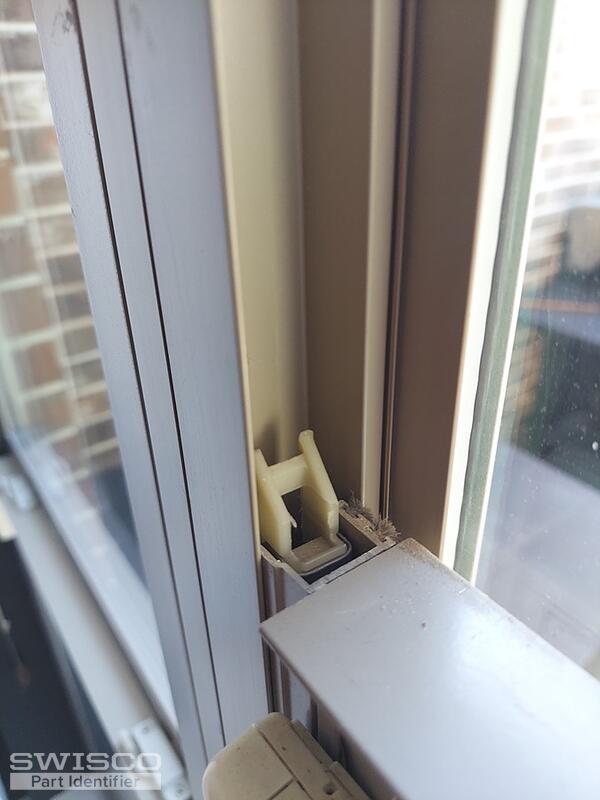

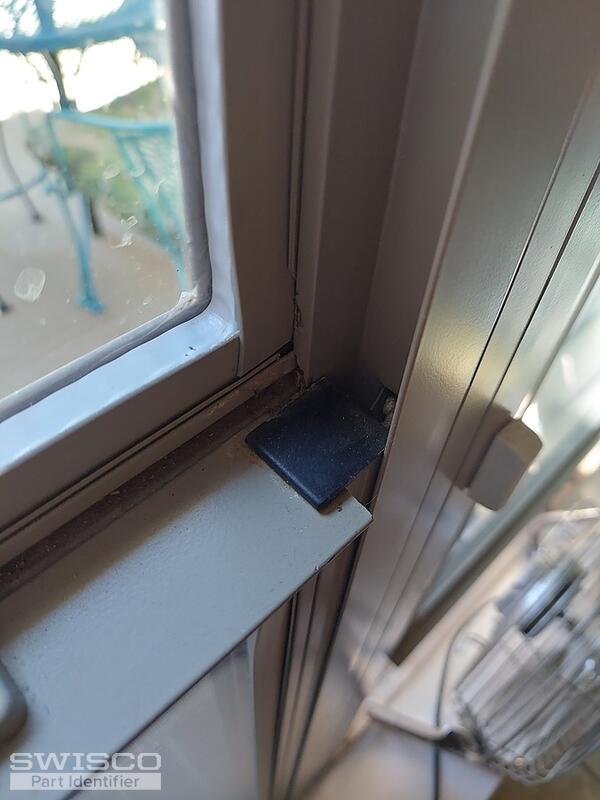

IM ALSO GOING TO NEED THE BLACK TOP COVERS TO HIDE CHANNEL BALANCE

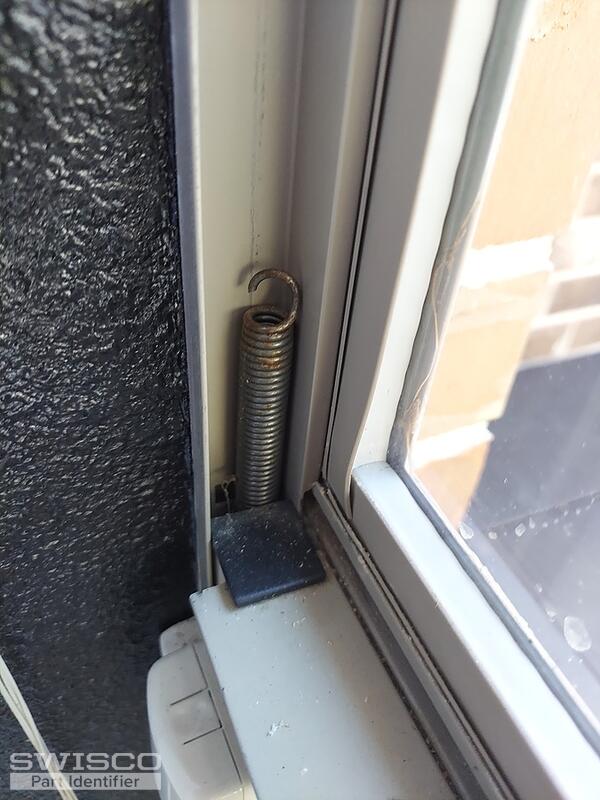

Thumbnail of the uploaded file named 16968726200183516099092066950429.jpg
Thumbnail of the uploaded file named 16968726478247100718824667536636.jpg
Thumbnail of the uploaded file named 16968726863112022667243430098329.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have either our S351-28, with a 15-002 bottom attachment, or S390-28, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. Based on your 27C stamp code, you'll also need a 2730 spring strength option for your replacement balances.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

There's a good chance that we can supply a replacement for your top sash guide as well but we would need to see an undamaged version removed from the window to compare to our inventory. Thank you!
