28 3 GK Caldwell window balance

Handy Person from Arizona

Apr 27, 2023 4:44 pm

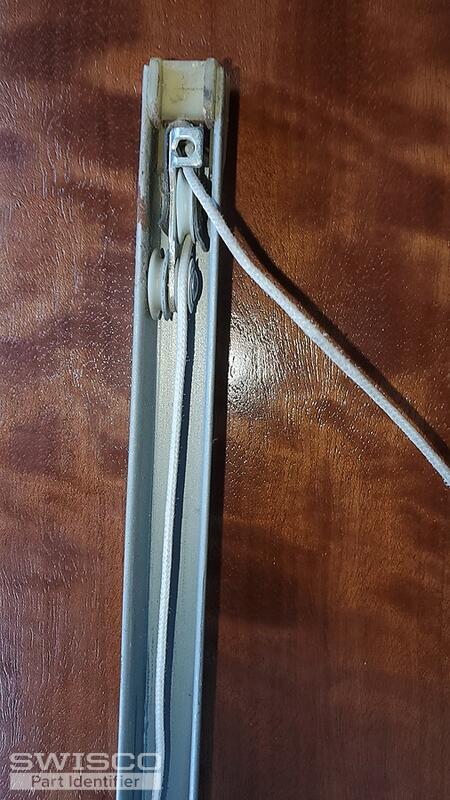

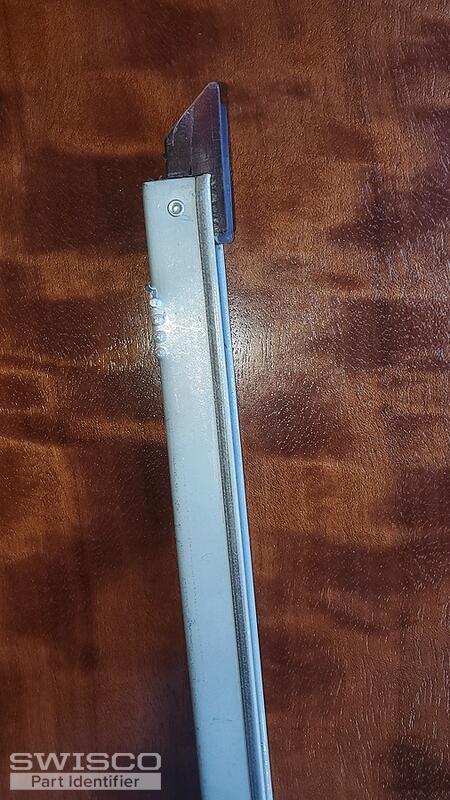

I'm looking for replacements for both sides of window. I have additional photos if needed. The metal channel measures 1/2 inch and 29 inches long.
Thanks!

5 user uploaded images

2 Replies

Casey from SWISCO

Apr 28, 2023 8:34 am

Hello,

It looks like you have either our S351-29, with a 15-002 bottom attachment, or S390-29, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2830 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.
