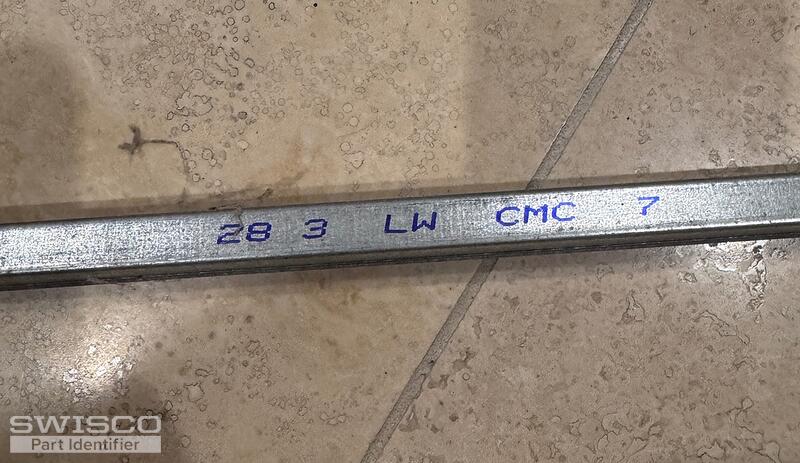

28 3 LW CMC 7

Handy Person from Arizona
Hello,

Please advise the part number to order.

Thank you.

Aaron

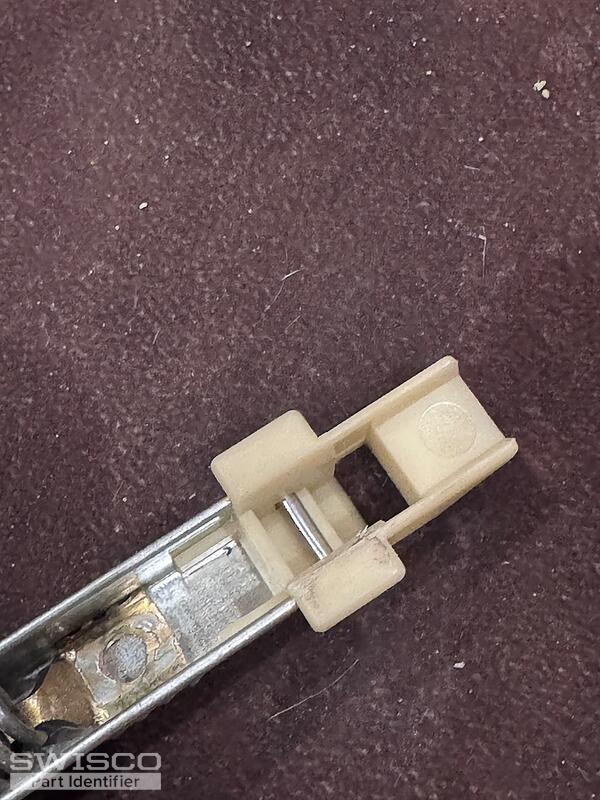

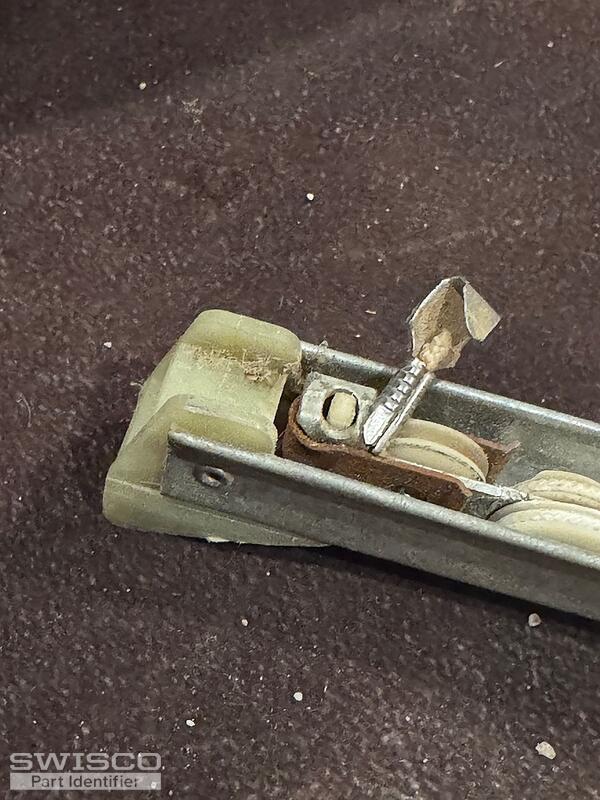

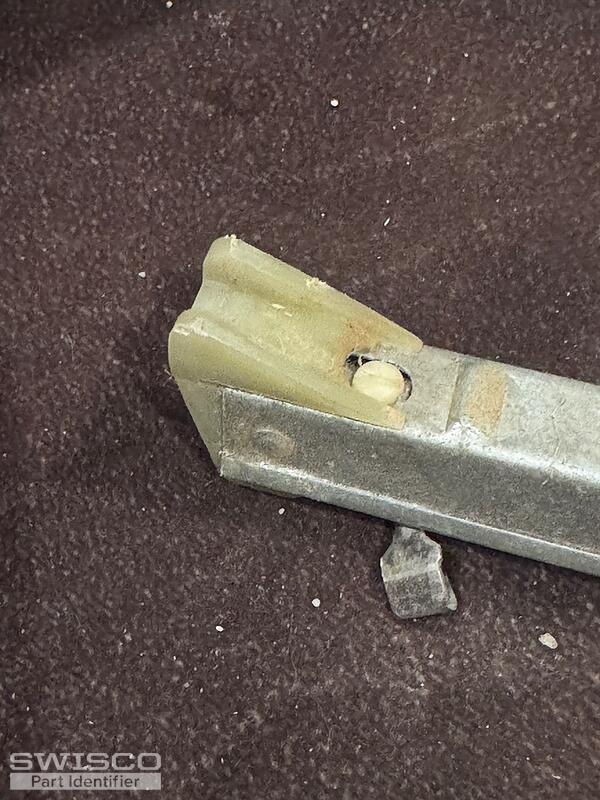

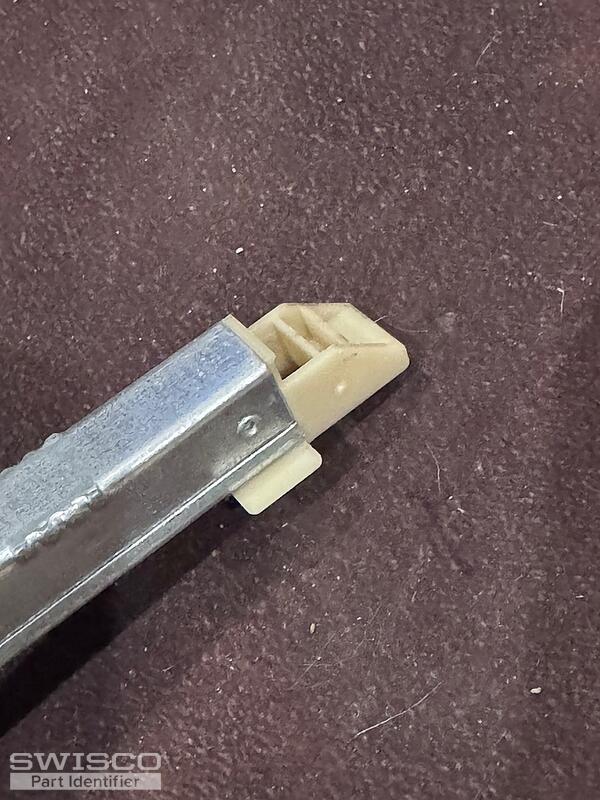

5 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Aaron,

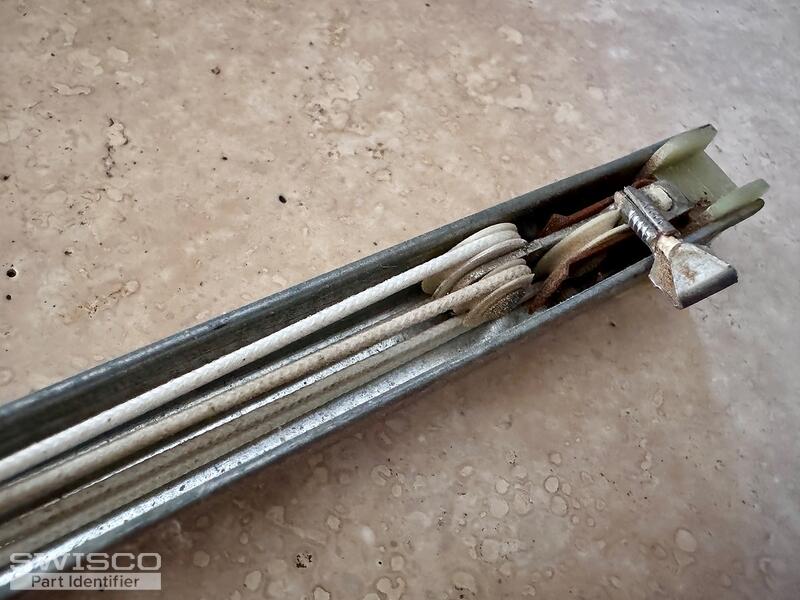

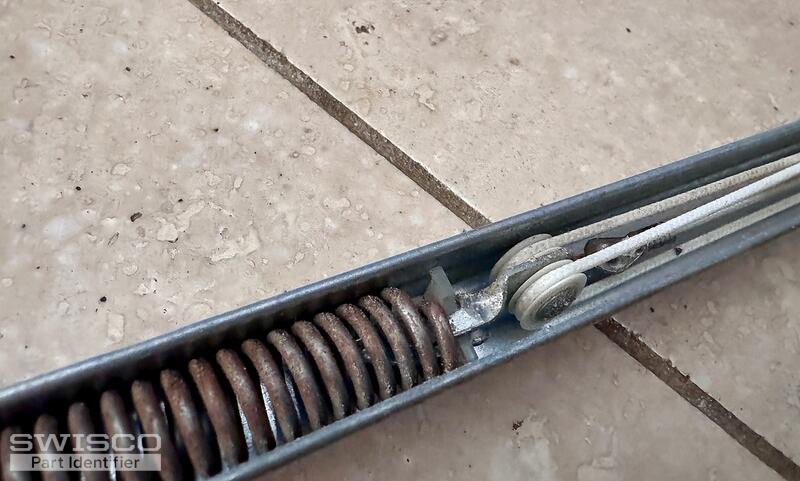

I was able to narrow down your balance to two possible replacements. To determine which of the two is the correct one for your window, I'll need to see a photo of the bracket that connects the spring and the string. This is in the center of the balance.

Please don't hesitate to reach out with any questions you might have.

Handy Person from Arizona
As requested.

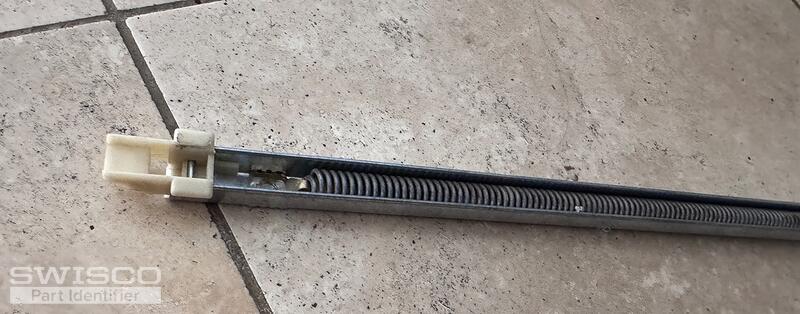

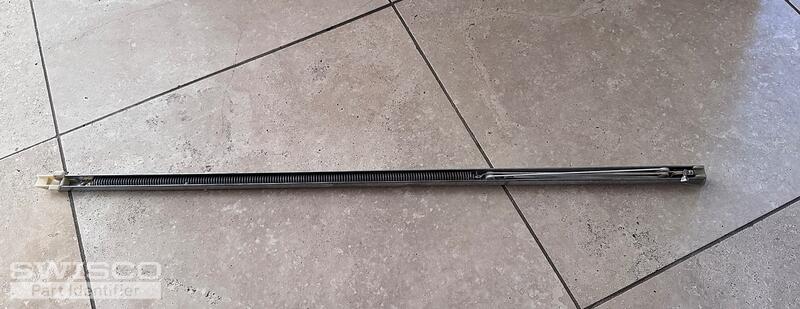

4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for providing the additional photos. Your balance can be replaced with the S395-29 Channel. You can likely choose the 2830 stamp option but it may be a good idea double check that your sash weighs 16 to 23lbs.

Handy Person from Arizona
Thank you so much! You are the best.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

I'm happy to help! We appreciate your business.

Please don't hesitate to reach out with any other hardware repair projects you might have.

Have a great weekend!
