28" block and tackle for milestone windows
Home Owner from Florida
Feb 8, 2019 1:39 pm
I have a Milestone non-tilt window that needs a new block&tackle balance. It measures 28"long, 9/16"wide at open channel side, 1/2"wide at back of channel, and depth of channel is 1/2". It has a 27C stamp as shown in the attached picture and the end connection as shown in the attached picture. I had tried one kind already, but it measured 9/16" in channel depth, and that did not fit because that extra 1/16" did not allow for a plastic cover that fits over the channel to blend in with the window. So I want to make sure I order the right part. Suggestions?
2 user uploaded images
6 Replies
Bob from SWISCO
Feb 8, 2019 2:44 pm
Thanks for posting. I think we can help you replace this balance, but I will need more information. First, could you show us a picture of the entire balance? And can you confirm the length of the metal channel, not including any end attachments? Thanks.
Home Owner from Florida
Feb 10, 2019 2:00 pm

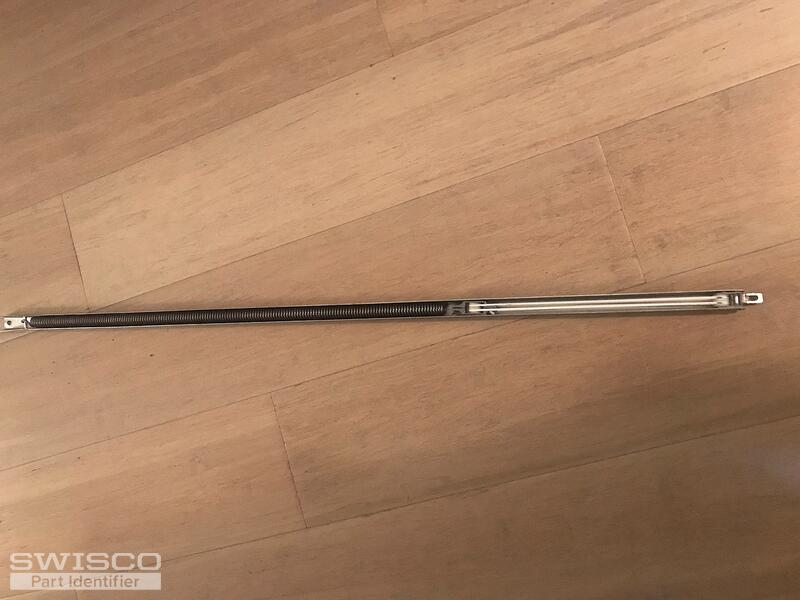

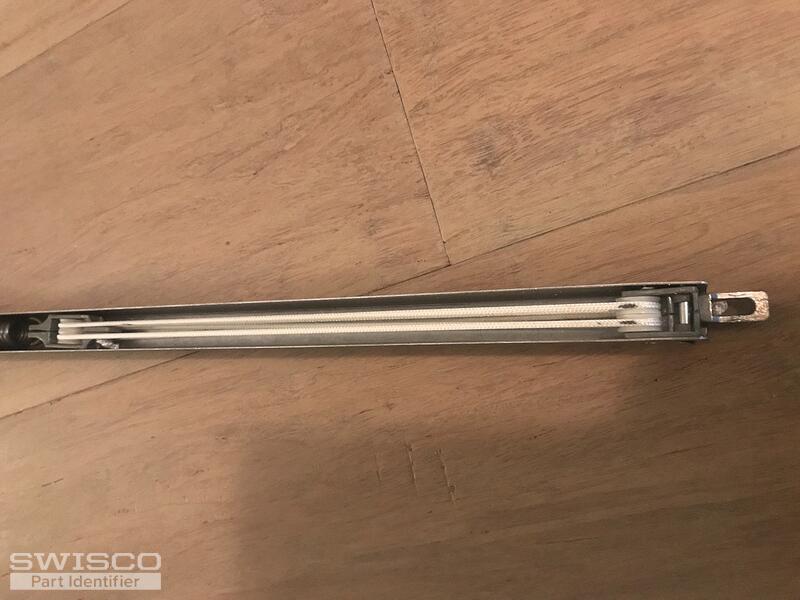

Here are some more pictures. The metal channel is 28" NOT including any attachments
3 user uploaded images
Bob from SWISCO
Feb 12, 2019 9:11 am
Ah, thank you. Your exact balance isn't made anymore, but you should be able to use our S770-28 as a replacement. I don't think there are any major design differences between your older balance and ours. Look it over and see what you think!
Home Owner from Florida
Feb 12, 2019 10:09 am
Perfect. Thank you.
Bob from SWISCO
Feb 12, 2019 12:03 pm
You're very welcome. Let us know if there's anything else we can help with!
