28 inch channel balance for non tilt window

Quick Learner from San Diego

Feb 11, 2021 9:19 pm

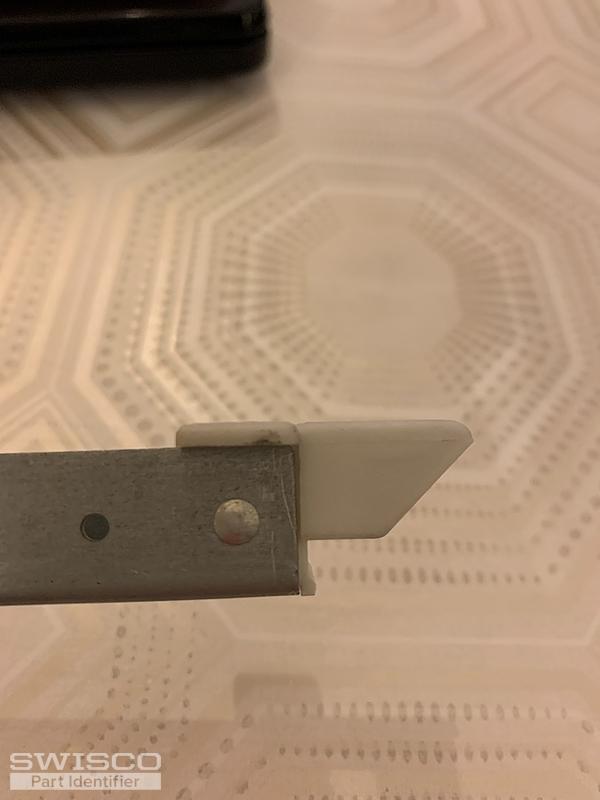

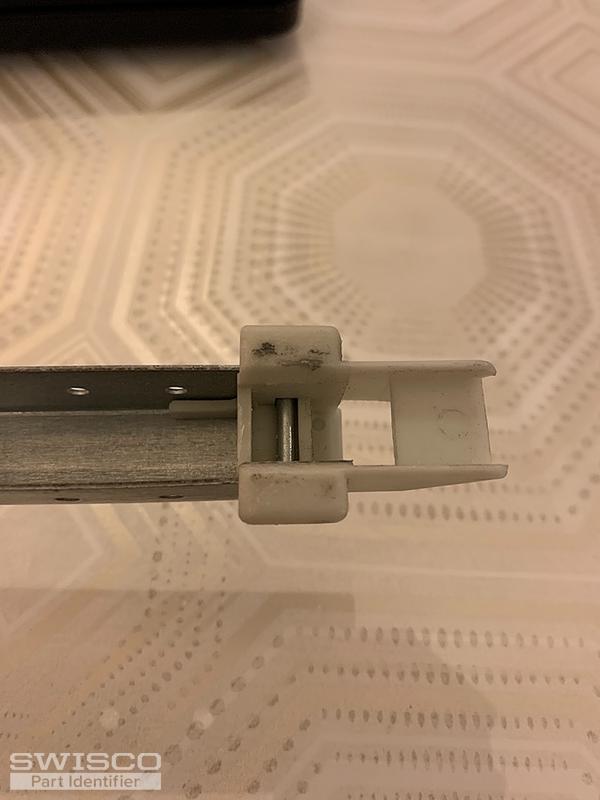

I need a replacement 28 inch window balance for a non-tilt window. The width is 1/2 inch, and the imprint says 27 4. Can you please advise which part I need to order? Thank you

5 user uploaded images

5 Replies

Tom from SWISCO

Feb 15, 2021 1:54 pm

This is a bit of an odd one. Your balance looks to be a stock product at first glance, but I've never seen a balance in this style with that type of hook. Would it be possible for you to move that hook aside and show me a picture of the underside of the shoe? I just want to be 100% sure of what you're working with.

Quick Learner from San Diego

Feb 16, 2021 10:21 am

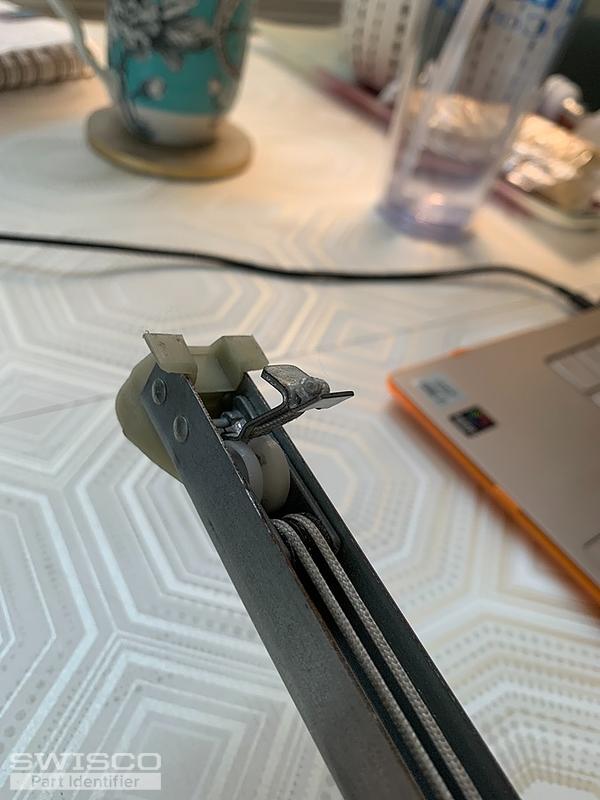

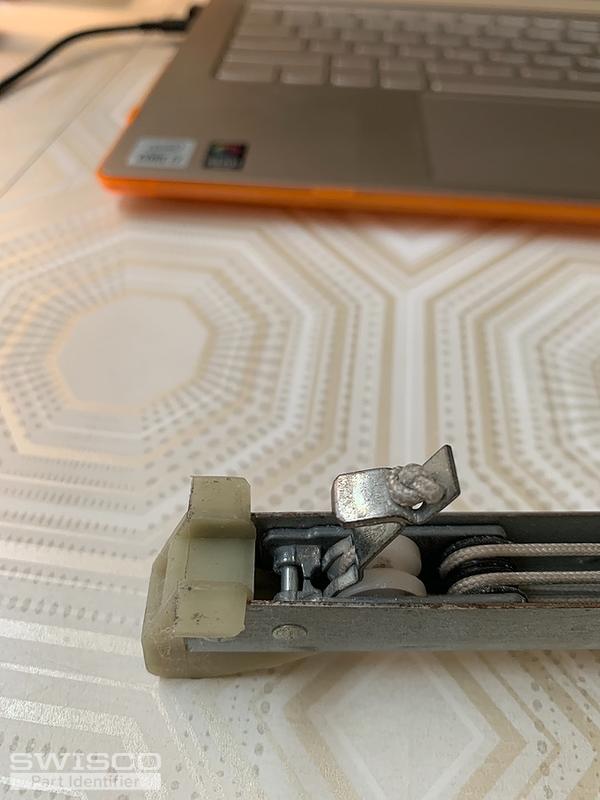

Is this what you mean?

2 user uploaded images

Tom from SWISCO

Feb 16, 2021 11:17 am

Yes, that's perfect. Please give me a little more time to solve this mystery and I'll get back to you ASAP!

Tom from SWISCO

Feb 18, 2021 10:43 am

Thanks again for your patience while we researched this. We can supply this balance, but it will have to be a custom order since it's not a stock configuration. Basically we'll be using a Series 385 channel balance, but we'll be swapping the metal hook it comes with for the 62-108.

The 62-108, for your reference, is the modern version of the metal hook you have on your balance now. The design is a little different but I promise that they work the same way.

If that sounds good to you, please let me know how many you wanted to buy and I will email you a purchase link and price quote for that quantity.
