28 x 38 inch double hung window

A quick learner from Toms River, NJ says:

Good afternoon,

Not sure how many coils for this window. About 21 years old, vinyl replacements. No markings found on either top or lower piece or the spring. I would guess single coil. Spring width is 0.5 inches, lock / lowner end has a 'T' and a round 3/16" hole about a half up the coil. Would prefer to replace the entire assemblies.

Thanks, John

Thumbnail of the uploaded file named 6.jpg
Thumbnail of the uploaded file named 7.jpg
Thumbnail of the uploaded file named 8.jpg

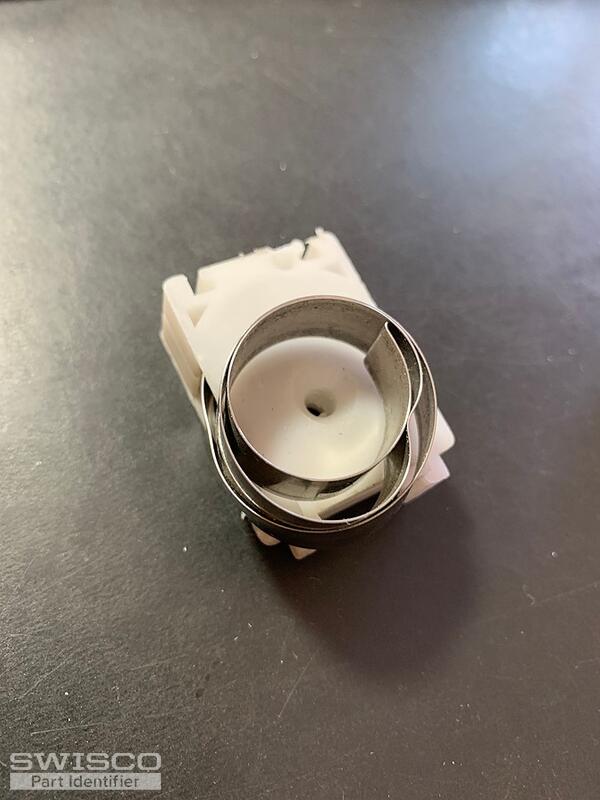

Thumbnail of the uploaded file named 9.jpg

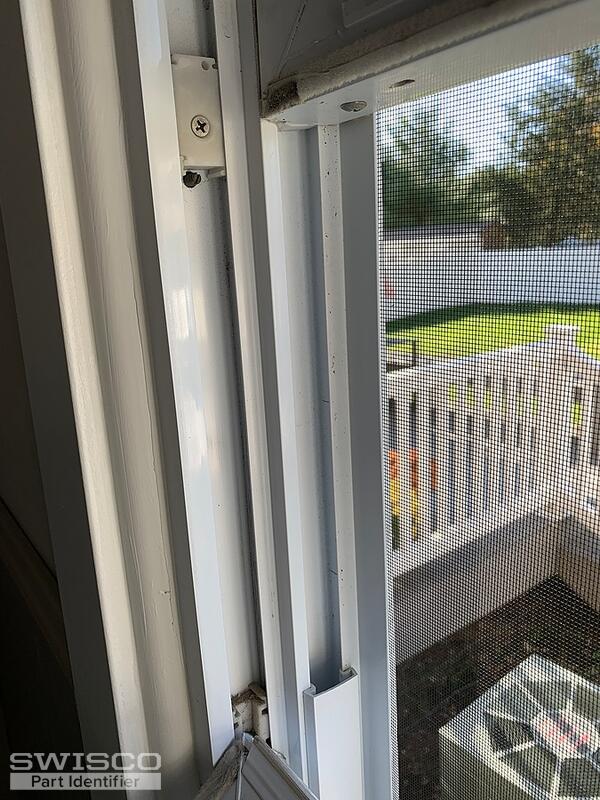

Thumbnail of the uploaded file named 1.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi, John.

We don't sell this exact pivot shoe but we believe you can use the 15-228 pivot shoe which is compatible with the 1/2" Series 160 coil springs. For a new single coil support, see the 15-150S . Review the specifications for these parts and see what you think.

To know what spring weight you'll need, check the band of your old spring for a stamped code.
