2830A

Home Owner from Vineland,New Jersey
Jul 11, 2024 2:40 pm
Need to order

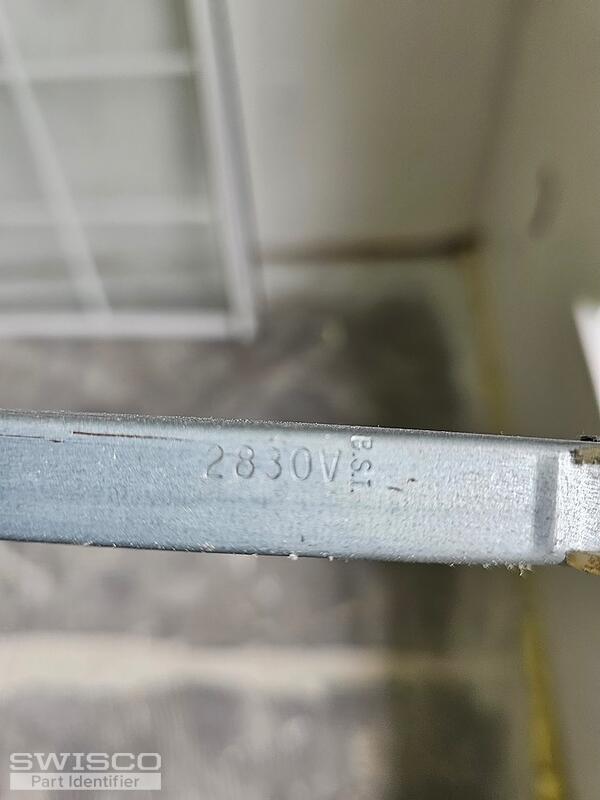

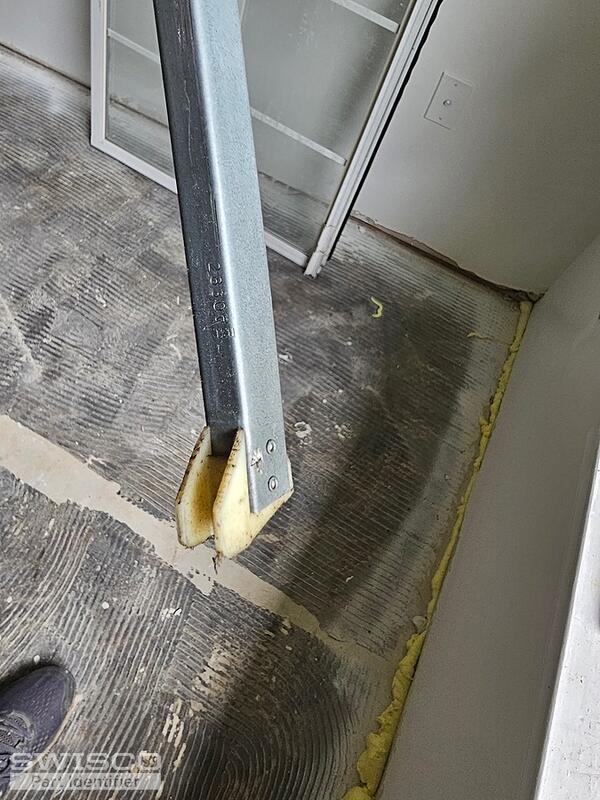

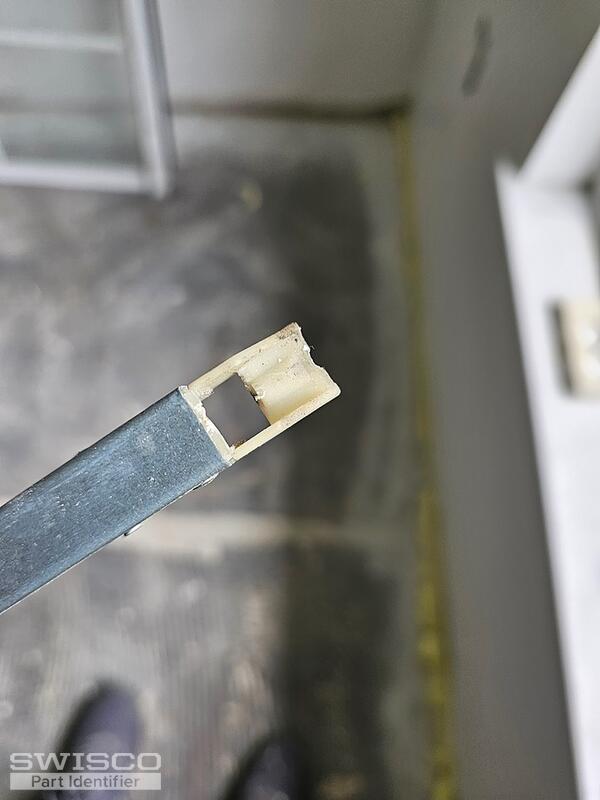

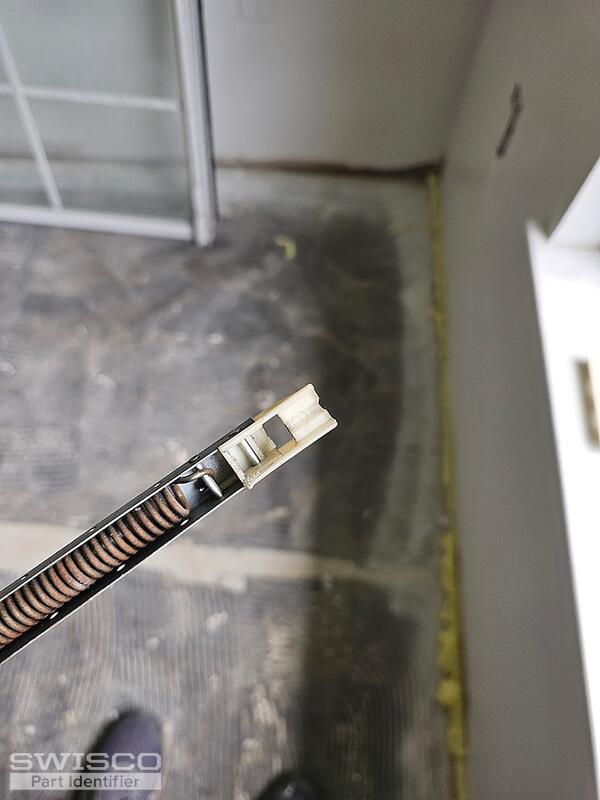

123_1 123_1 123_1 123_1
4 user uploaded images
3 Replies
Home Owner from NJ
Jul 11, 2024 3:23 pm
I previously sent photos with reference # D331398. I was instructed over phone to include dimensions. It's either 28 and 1/4 or 28 and 3/4" hoping that helps
Bob
Bob from SWISCO
Jul 12, 2024 1:35 am
SWISCO
EXPERT

Thanks for posting. This looks like either an S351-29 or S390-29 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the heel-to-toe measurement. See the diagram below for reference. Compare both balances with your old hardware to see what matches best. For a stamp option choose 2830.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Bob
Bob from SWISCO
Jul 12, 2024 11:26 am
SWISCO
EXPERT

Hello,

I see that you had another post regarding the dimensions. Can you provide the exact length of the metal channel excluding the nylon attachments? If it is 28-1/4" or 28-3/4", unfortunately we cannot provide either of those lengths. Let us know!
