29 1 caldwell window channel balance

Handy Person from Florida

Dec 22, 2018 2:10 pm

Hi

I need help identifying my bottom window channel balance. Hard to read but the info on the back looks like: 29 1 FO CALDWELL

I measured 30", excluding the plastic attachments.

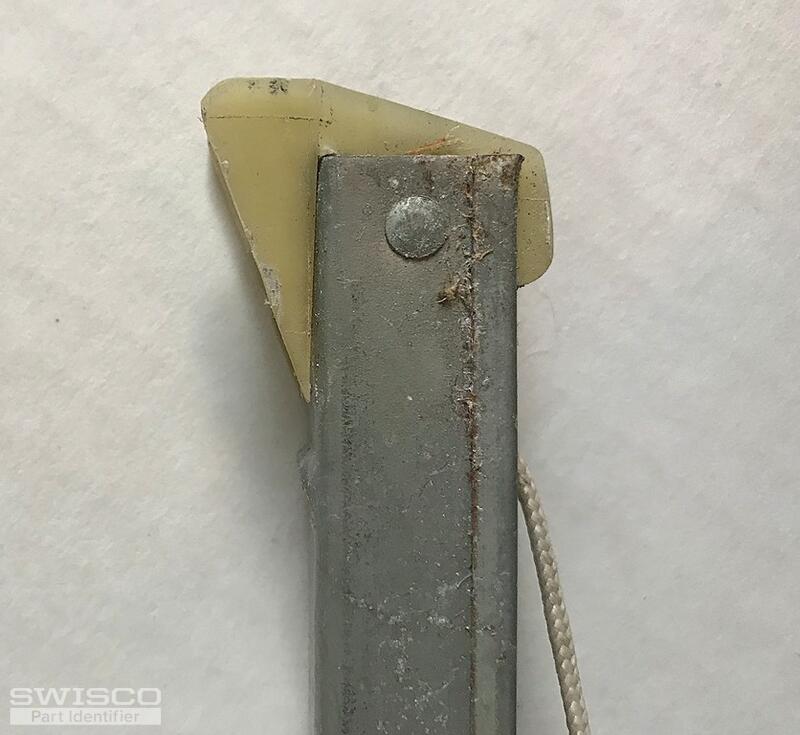

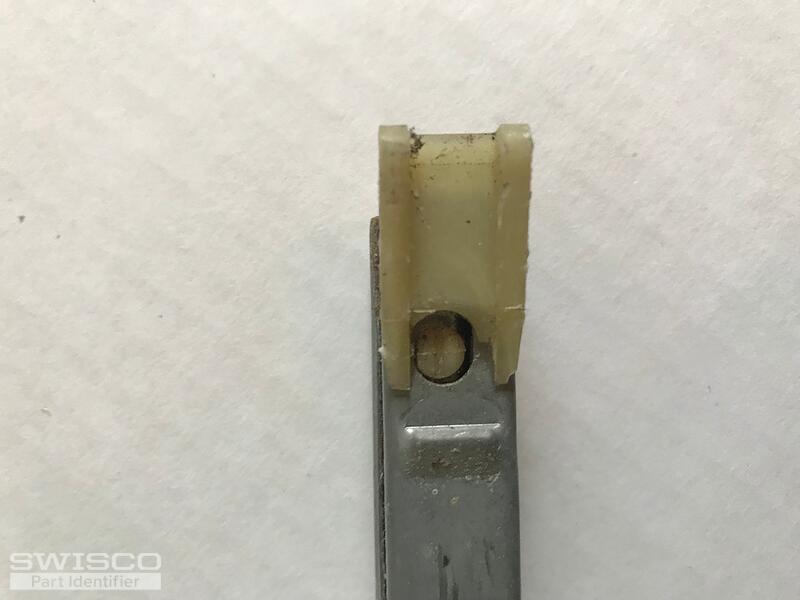

Photos of both ends of the plastic attached.

Thank you!

5 user uploaded images

6 Replies

Bob from SWISCO

Dec 26, 2018 1:22 pm

Thanks for contacting SWISCO. Take a look at our S395-30, with a stamp option of 2910. Compare with your old part and see what you think.

Handy Person from Florida

Jan 2, 2019 12:04 pm

Thank you for your help. The new channel balances fit perfect. Unfortunately, they do not hold up the window. As soon as I let go the window slowly moves back down.

What is the method to determine the correct sash weight range?

Bob from SWISCO

Jan 2, 2019 12:38 pm

Good question. You will remove the window sash and weigh it on a scale. From there, you refer back to the sash weight chart on the product page to choose the appropriate option. I hope this helps.

Handy Person from Florida

Jan 5, 2019 6:15 pm

Thank you for the quick response.

The window weighs 28 pounds, exactly between 2940 and 2950.

What would you recommend?

Bob from SWISCO

Jan 7, 2019 9:21 am

In this case, you could go with either option. Personally I would go with 2940, but you wouldn't have a problem with either option you choose.
