29-3 ga2 cmc 24

Home Owner
Need to find replacement for this channel balance. Part 29-3 ga2 cmc 24.

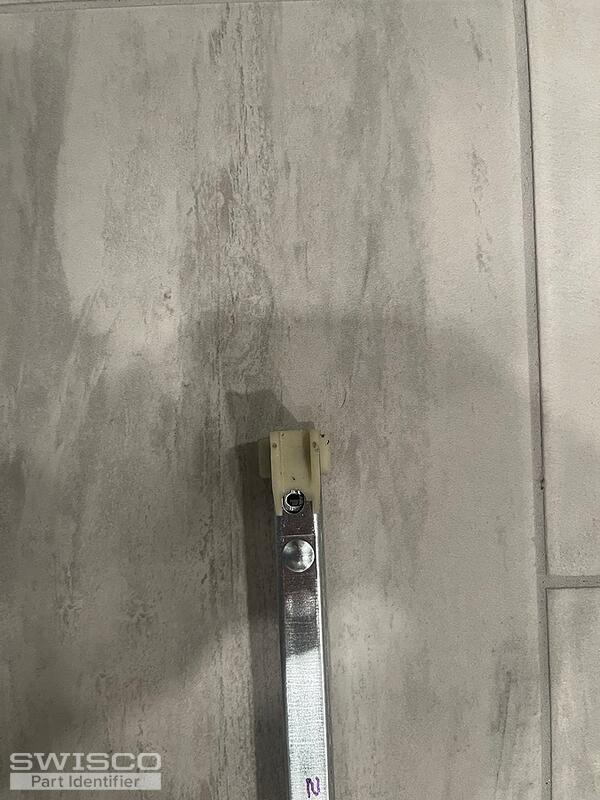

Bottom Guide: Guide I have is one 1” and winged

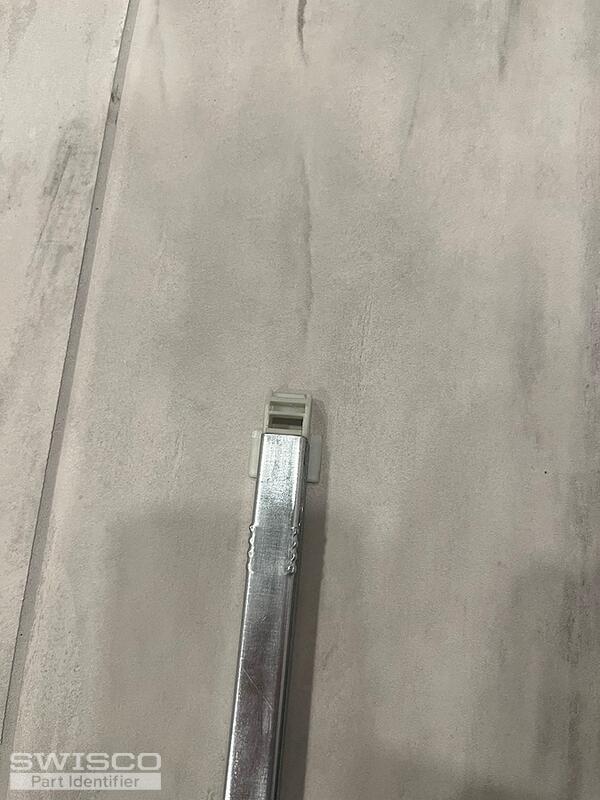

Top Guide: Guide seems to measure 1 and 1/8” and winged
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! I'm confident we can provide you with a replacement recommendation for your balances but there is just one more detail I'll need to see.

Please provide a photo of the bracket that connects the spring and pulley system string. This should be located in the middle of the balance. Since this balance appears to be missing the string, you may need to look for this piece on an undamaged balance.

Please don't hesitate to reach out with any questions.

Home Owner

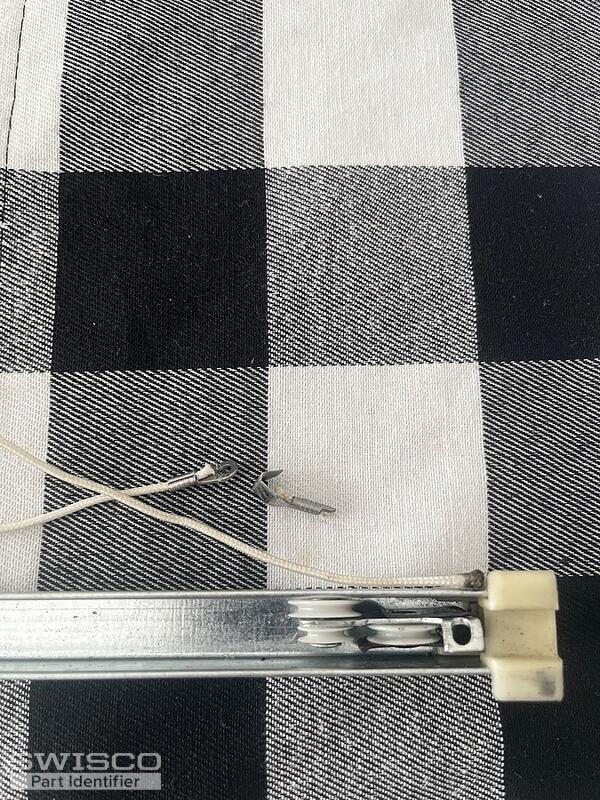

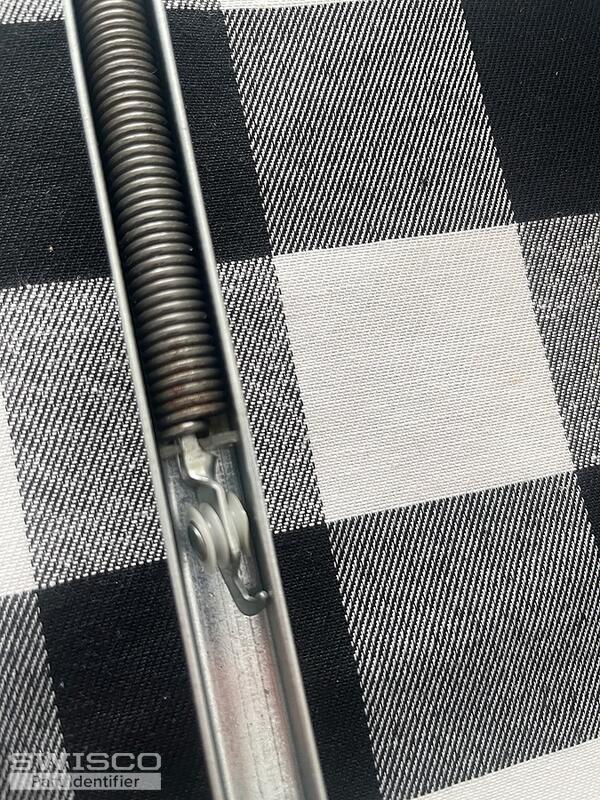

Thanks Jasmine! Let me know if these photos work. If not I can take photos of a channel balance that is on the other side in the window and isn't broken
2 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the requested photo. Your balance can be replaced with the S380-30 Channel Balance with a 2930 stamp option. Be sure to double check the depth of your shoe.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
