29 4 NM BSI

Question

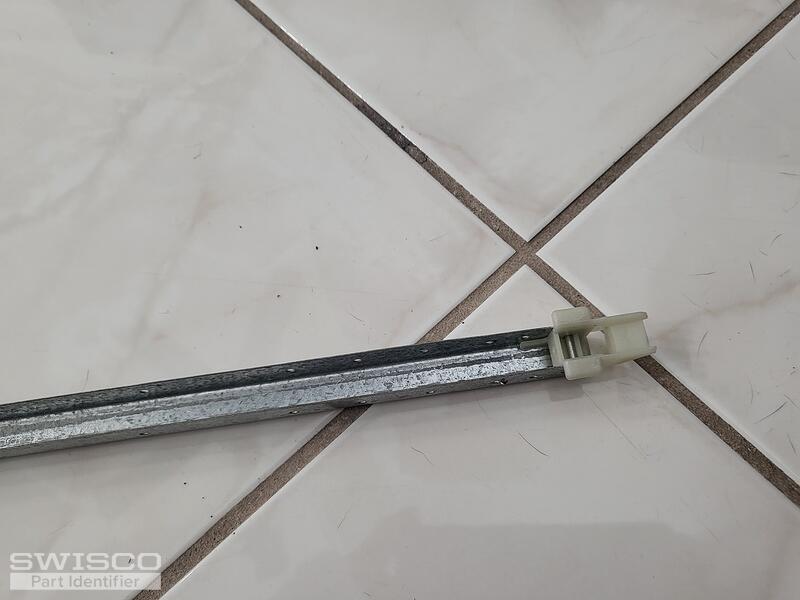

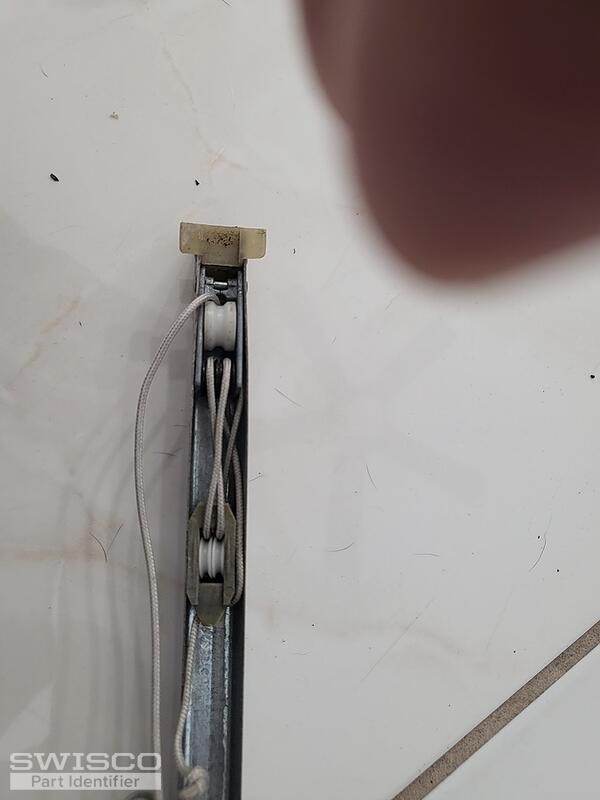

We are trying g to identify this so it can be replaced.

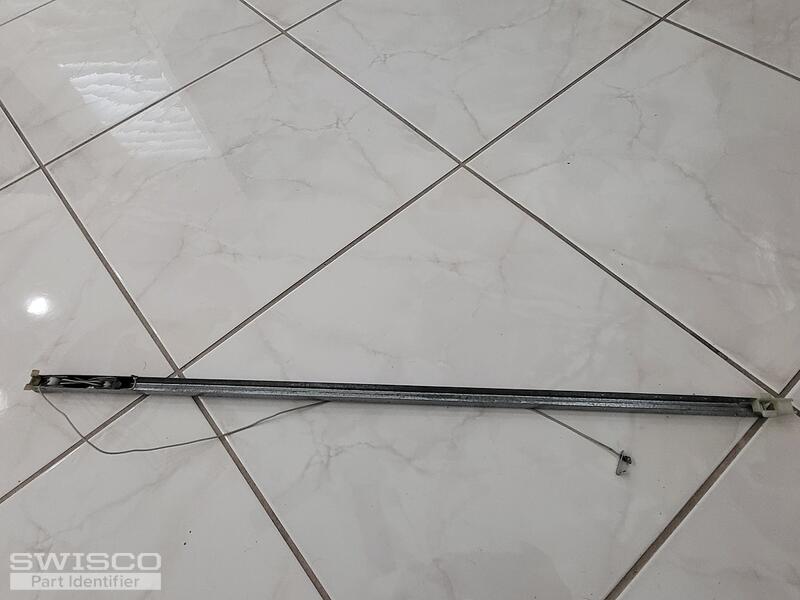

30long x 1/2 wide
Top clip is 1 3/16?

Jasmine · Accepted Answer

Hey there,

Your balance assembly can be replaced with either the S380-30 with a 1" shoe or the S385-30 with a 1-3/32" shoe. To confirm which of these is the correct replacement, you'll need to confirm the depth of the bottom shoe (front to back measurement), rather than the measurement of the top attachment; see the diagram below for reference.

You can select the 2940 stamp option which will support a sash weighing 23 to 28 lbs.

Comparison of the S378, S380 and S385 balance shoes.
