29-4 Window Balance

A handy person from Los Angeles says:

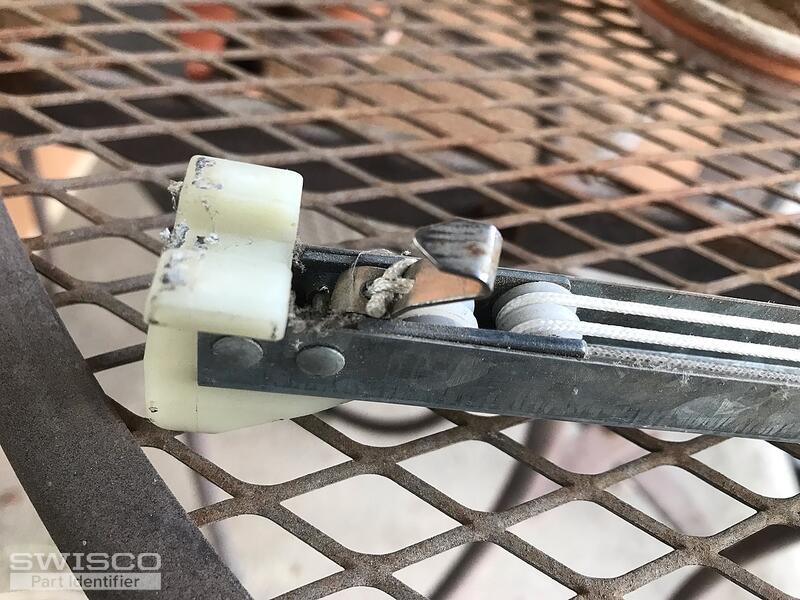

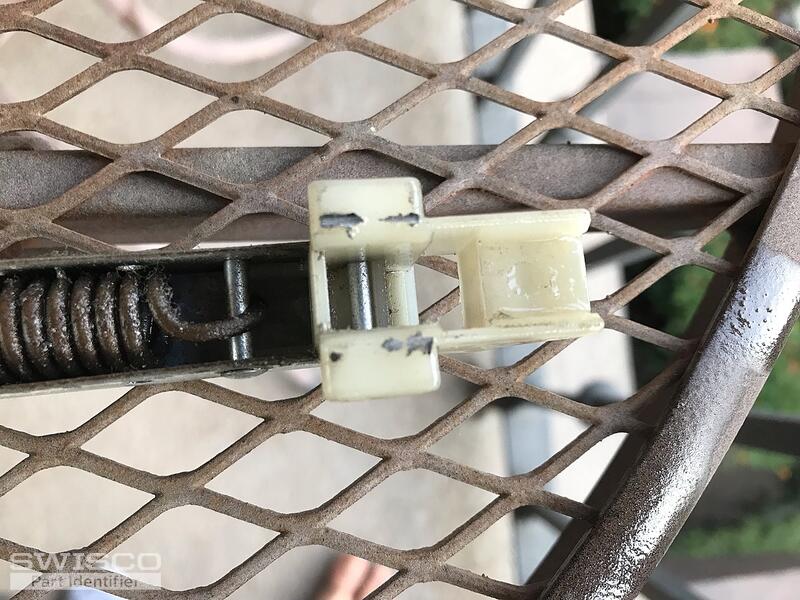

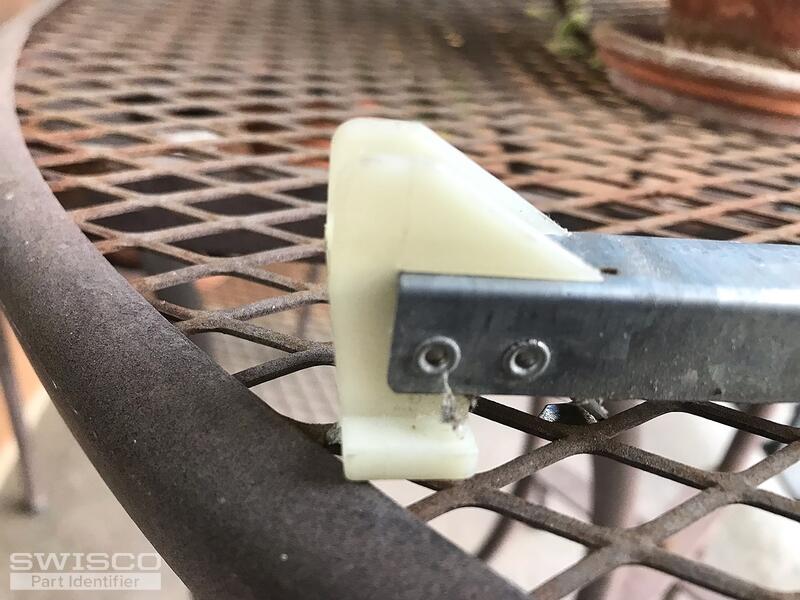

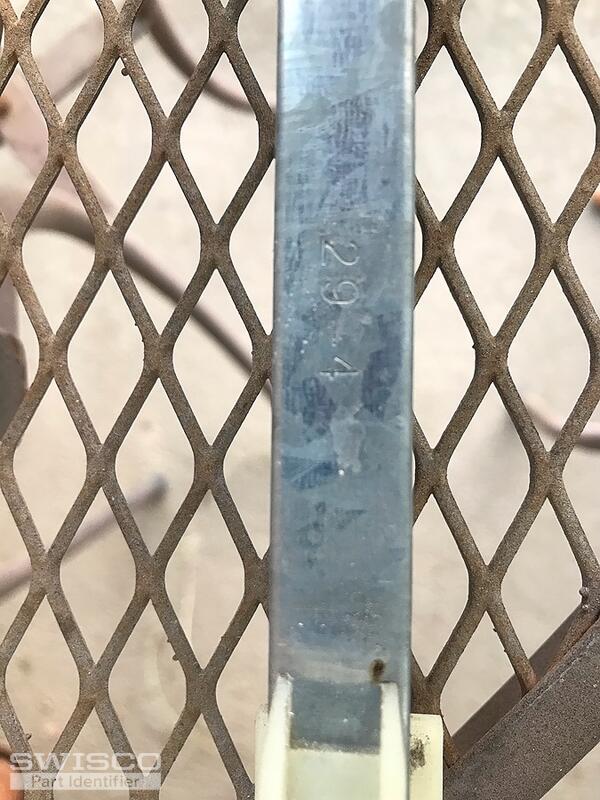

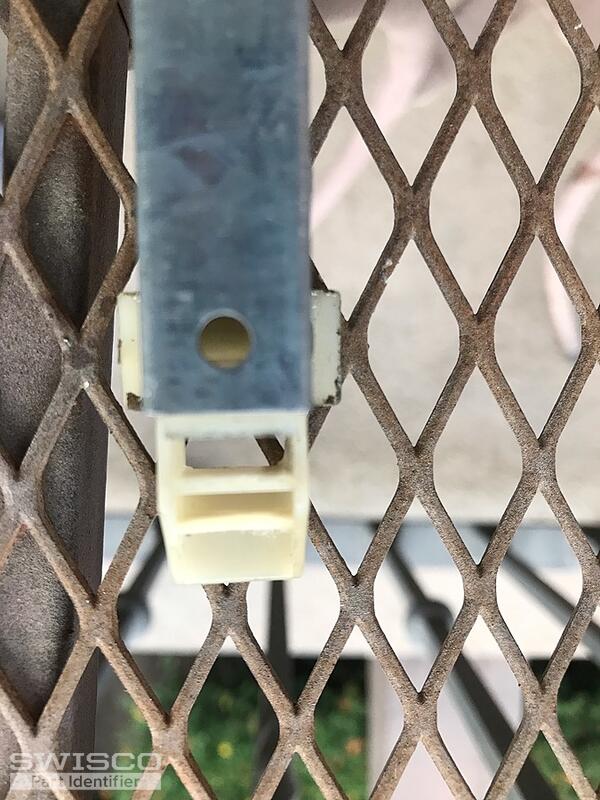

Hello, see attached photos. I am looking for a replacement. Depth ~0.5". Length of channel 30". Thank you for the help :).
Thumbnail of the uploaded file named IMG_9553.jpeg
Thumbnail of the uploaded file named IMG_9562.jpeg
Thumbnail of the uploaded file named IMG_9558.jpeg
Thumbnail of the uploaded file named IMG_9556.jpeg
Thumbnail of the uploaded file named IMG_9554.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2940 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A handy person from Los Angeles says:
Thank you very much! I appreciate the expert help.
