29 5 EW CMC 10

A quick learner from Fort Meyers, FL says:
October 14, 2021

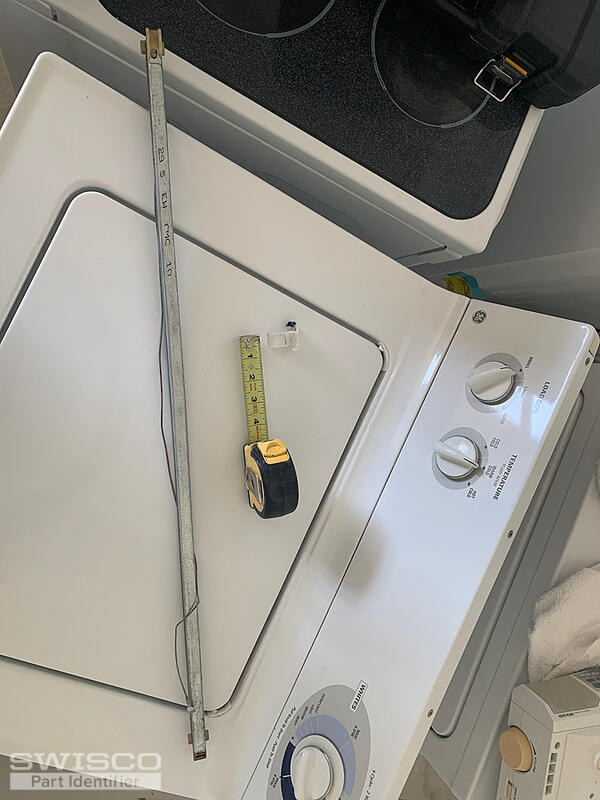

The above is the writing that appears on the side of my broken ballast.
Thumbnail of the uploaded file named Window ballast.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 19, 2021

Hello,

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2950 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


1
A quick learner from Fort Meyers, FL says:
November 9, 2021

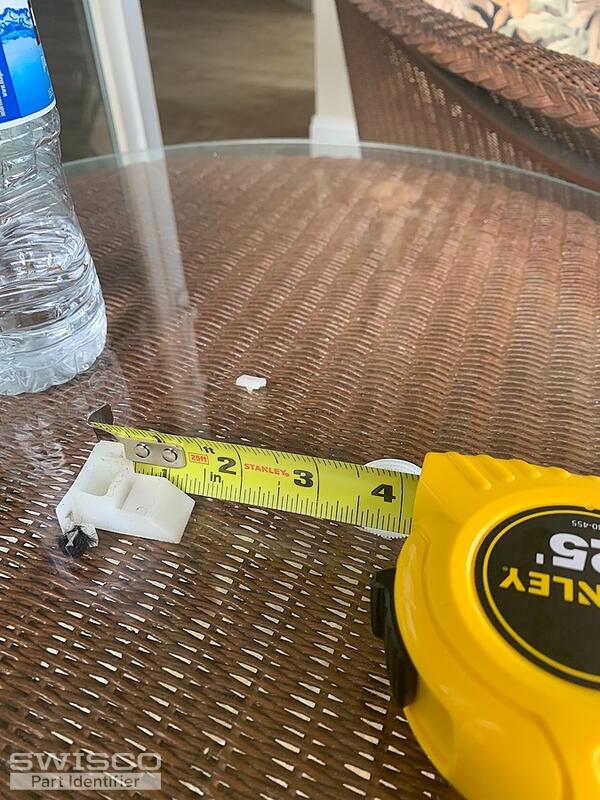

Hi. Thanks for sending me the replacement ballasts/weights. They fit fine. However, it appears as though I need also need new to top pieces similar to the one in the below photo. They measure 7/16 " at the bottom. Do you have this item (I hope)? Assuming that you have them, I need four.
Thanks for all of your help.
Bob
Thumbnail of the uploaded file named FE173E4F-2118-4CB1-B7CF-61B49D4BE96D.jpeg
Profile picture of Casey
Casey from SWISCO responded:
November 10, 2021

The part in your photo is called a top ssh guide, which resembles the 18-178 . Take a look and see how the dimensions compare to yours.

A quick learner from Fort Meyers, FL says:
November 10, 2021
Perfect. Thank you!
