A home owner from Cape Coral, Florida says:
February 8, 2021
I need to replace 4 window balances. They are marked 2830 and also 28C. The length of the metal channel is 29". The width of the channel is 1/2". Each sash weighs 19 lbs. The top shoe appears to be a 19-005. The bottom shoe appears to be A 7/8" winged channel balance shoe #15-029. Photos are attached. Also the 1/2" top sash guide measures 1 1/2" tall and the top of it measures 15/16" x 5/8".
Thumbnail of the uploaded file named 20210208_161219.jpg
Thumbnail of the uploaded file named 20210208_161212.jpg
Thumbnail of the uploaded file named 20210208_162335.jpg

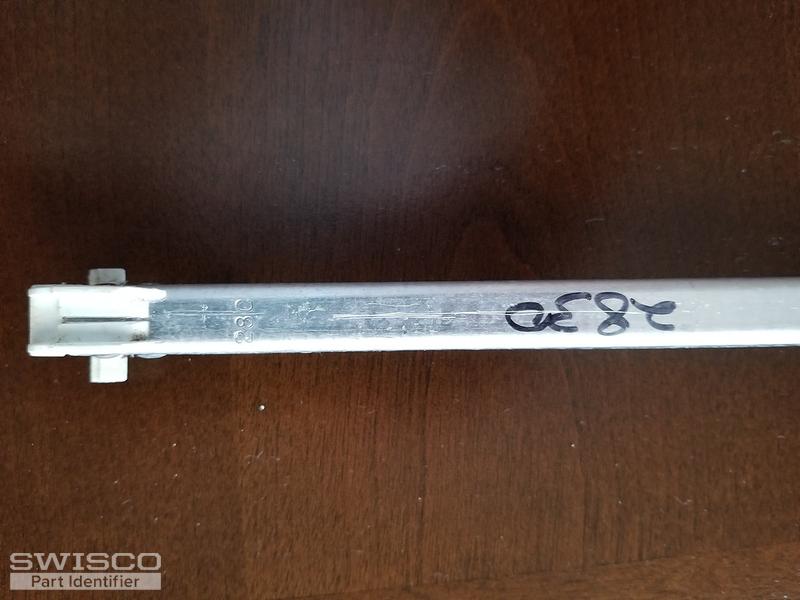

Thumbnail of the uploaded file named 20210208_161414.jpg

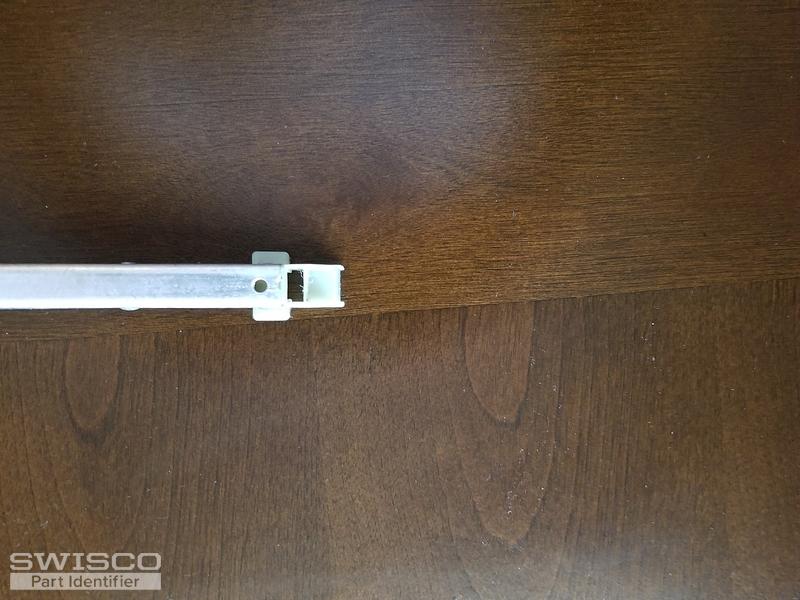

Thumbnail of the uploaded file named 20210208_161419.jpg
Profile picture of Bob
Bob from SWISCO responded:
February 11, 2021

Thanks for posting. We can furbish (4) 29" balances, stamped, 2830, and with the 19-005 Top and 15-029 bottom attached via a custom order. I just sent you an email with a custom link to order just that. If you need the Top Sash Guides as well, I will need a clearer picture of one from the front and side. Many thanks.
Winged Channel Balance Shoe, 7/8" Depth
Winged Channel Balance Shoe, 7/8" Depth
15-029
$0.82
Channel Balance Top, Winged
Channel Balance Top, Winged
19-005
$0.74
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
