29" channel balance (no ID on part)

Quick Learner from Sarasota, FL

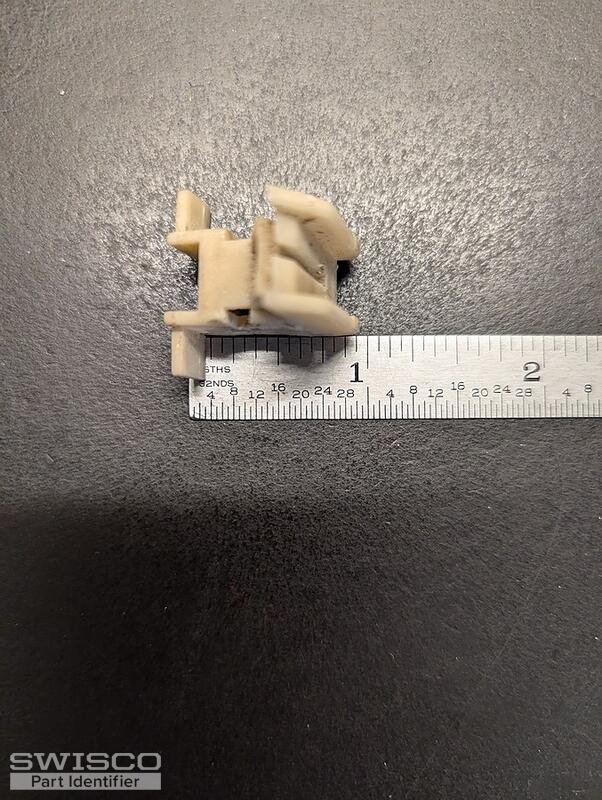

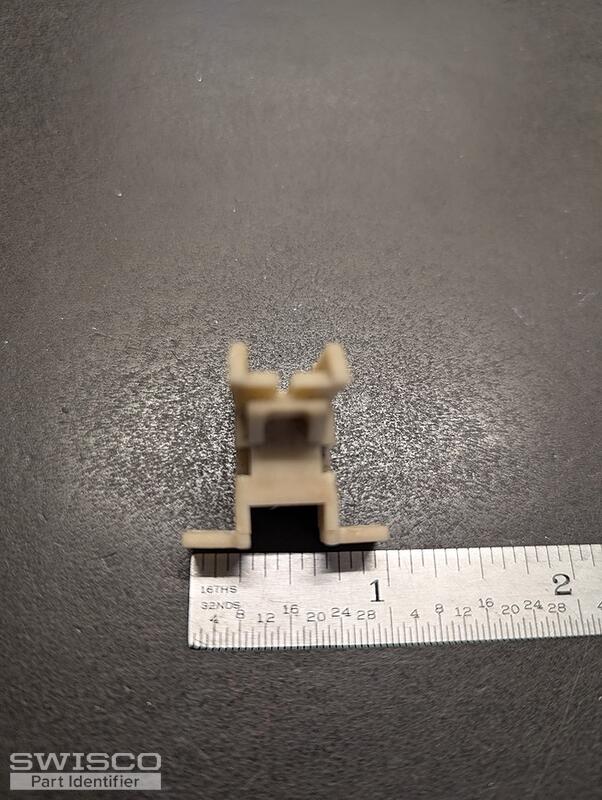

Need help identifying correct balance, particularly the shoe as it's geometry is a little different than all the shoes on your website. Window weight is 18 lbs.
Any help is most appreciated.
5 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! I am confident we can provide you with a replacement for the balance you have here. Although, I'll need to see a photo of both the top and bottom attachments from the balance to identify it. I'll also need to see the shoe from a front facing view (the angles in your photo shoe the top, side, and the back).

Please feel free to reach out with any questions you might have in the meantime.

Quick Learner from Sarasota, FL

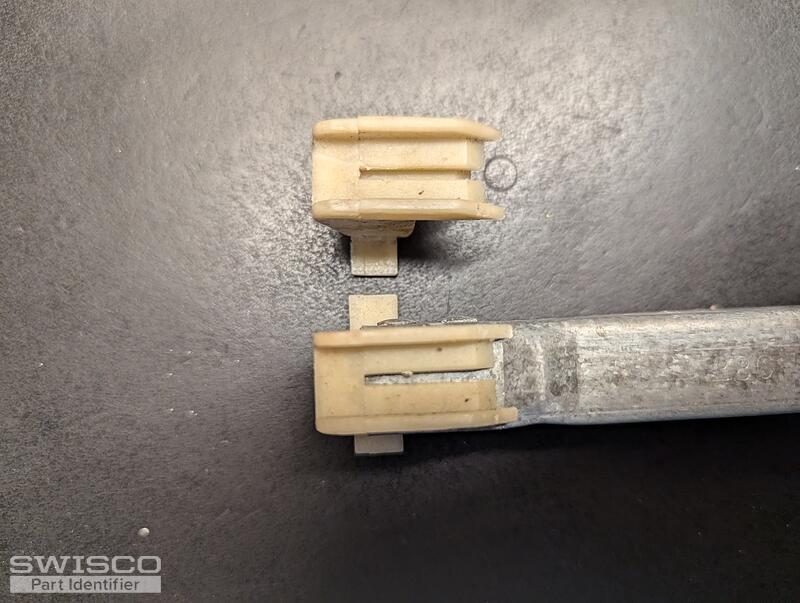

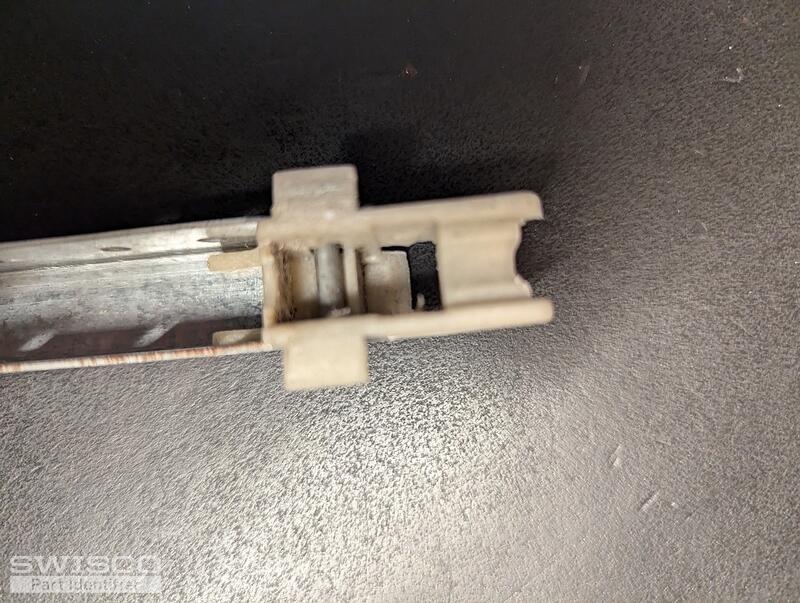

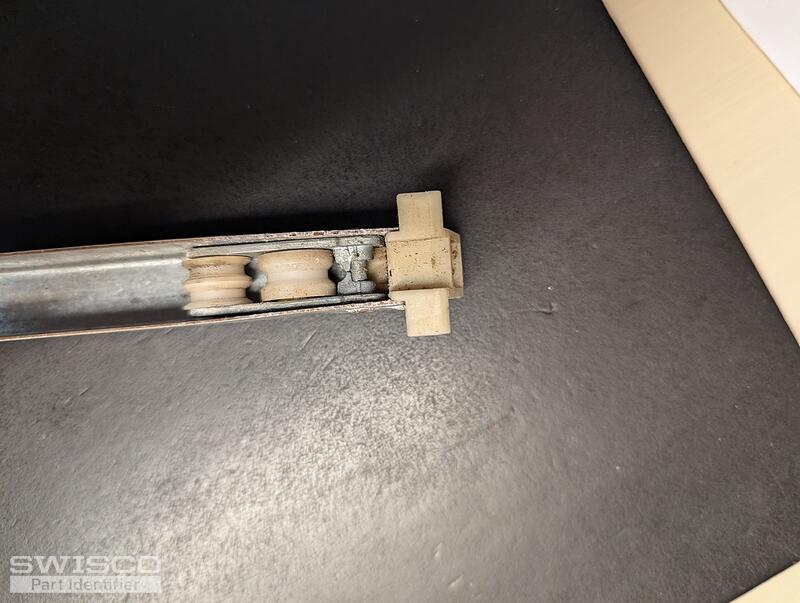

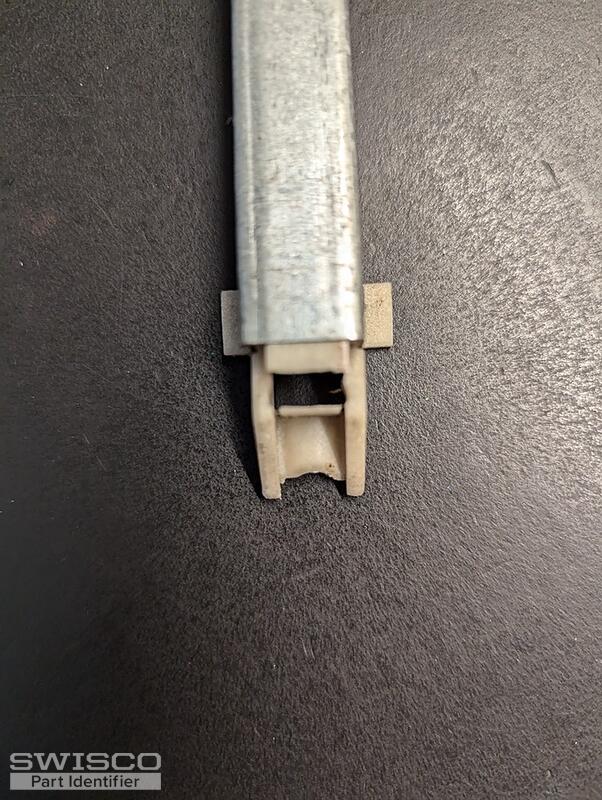

I hope these pics are sufficient for identification purposes.
4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photo. The balance you have here will need to be a custom assembly, made with the 19-005 top and 15-029 shoe (which has a 7/8" depth).

I'm happy to provide you with an order link for them, I'll just need to know the exact number of balances you intend to purchase. There is a quantity minimum of (2) for custom assemblies.

Please feel free to reach out with any other questions.

Quick Learner from Sarasota, FL
Please provide quote for 2 balances. Thanks.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for confirming! I've forwarded a link with a quote for (2) of these balances. You'll be able to use this link to review the quote and place the order from your online cart.

Please feel free to reach out with any questions you might have.

Have a great weekend!
