29 inch window channel balance

Start a new Discussion

Home Owner from San Antonio

Apr 8, 2020 10:30 pm

Need to replace a broken channel balance. Part number in photo. DB J03 28 HD

Window is a Series 165-SH window.

1 user uploaded image

7 Replies

Bob from SWISCO

Apr 10, 2020 8:38 am

Thanks for posting. This looks like a ribbed channel balance. Can you show us any clips, hooks, or attachments at either end of the balance? From there, we'll do our best to narrow down the possibilities. Many thanks.

Home Owner from San Antonio

Apr 14, 2020 5:03 pm

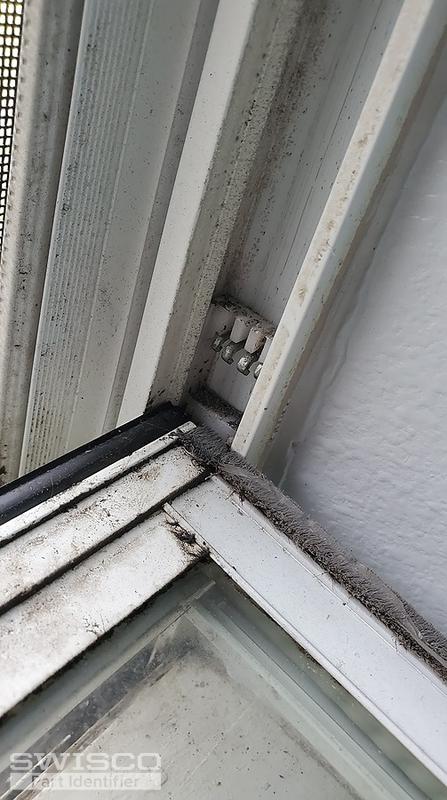

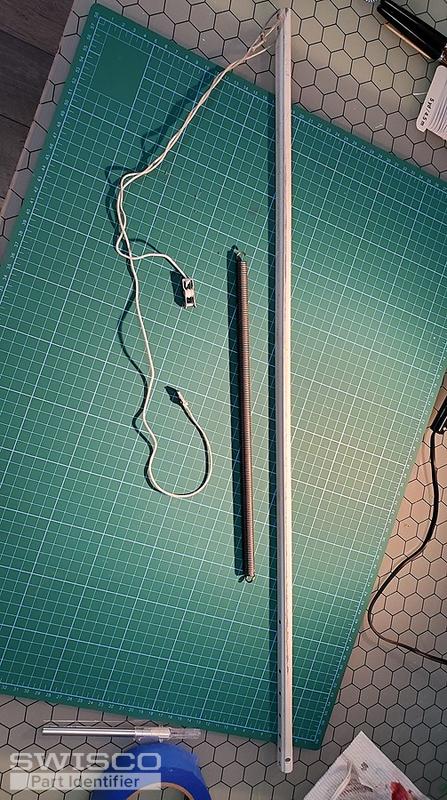

I've gone ahead and added photos of the channel balance and the shoe in the window.

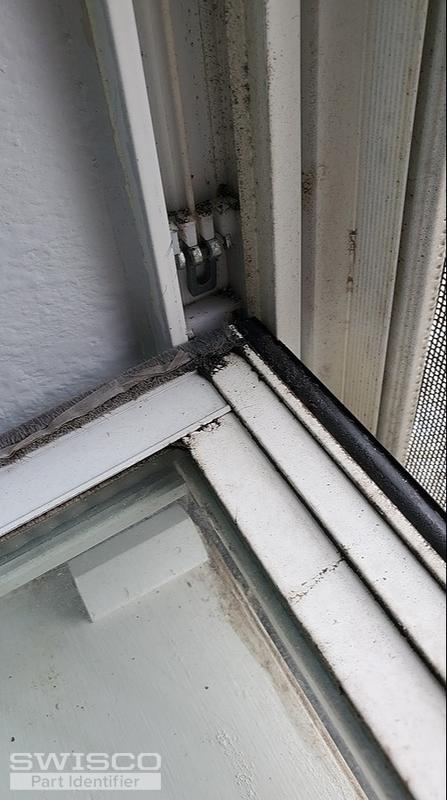

Left side.jpg is a picture of the working side.

5 user uploaded images

Bob from SWISCO

Apr 17, 2020 2:12 pm

We're getting there. Can you show me a closer picture of that clip that connects to the pivot shoe? From there we should be able to get this going. Thanks.

Home Owner from San Antonio

Apr 23, 2020 8:51 pm

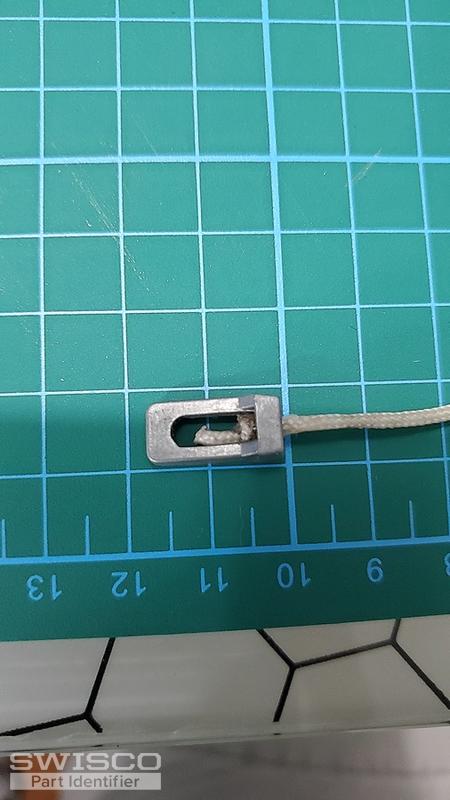

Attached is the clip picture.

1 user uploaded image

Paul from SWISCO

Apr 27, 2020 7:56 am

Thank you for your patience while we looked into this. I believe you can use our S770-29 channel balance to replace your old hardware. I know that the metal channel is a slightly different style than your original, but it should still work the same. I don't think you'll have any problem installing it in your window track.

Also, based on your old stamp of 28H, you'd want to select our 29D stamp option for the Series 770, when prompted.

Please let me know if you had any questions.

Home Owner from San Antonio

Apr 27, 2020 8:59 am

Thanks for the help!
