29 inches 28B channel balance

Home Owner from windermere fl

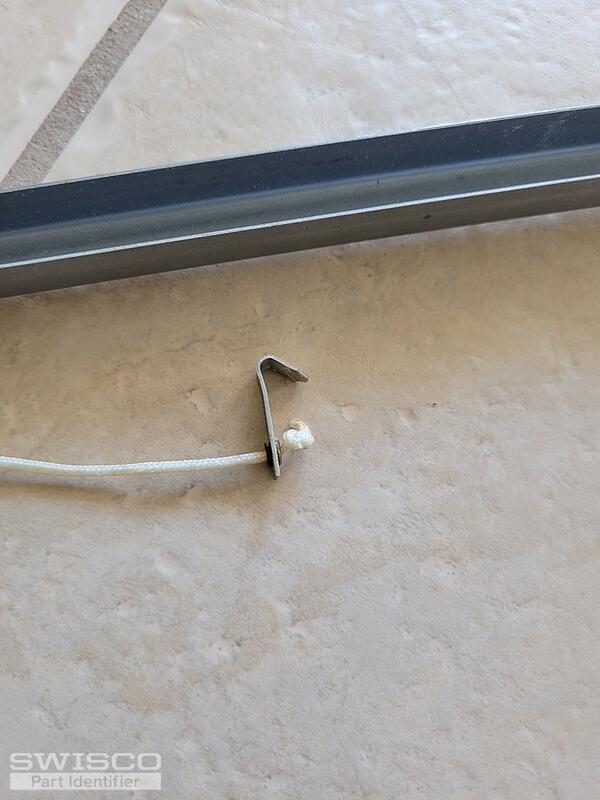

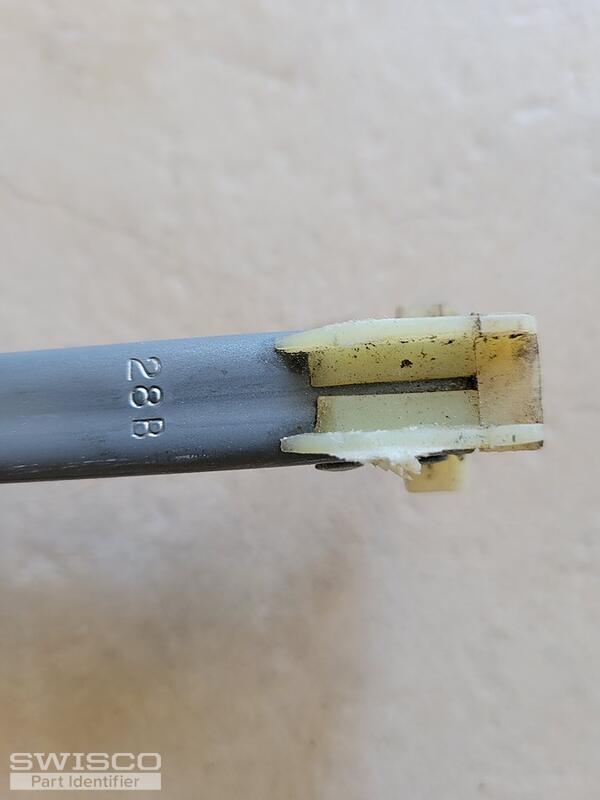

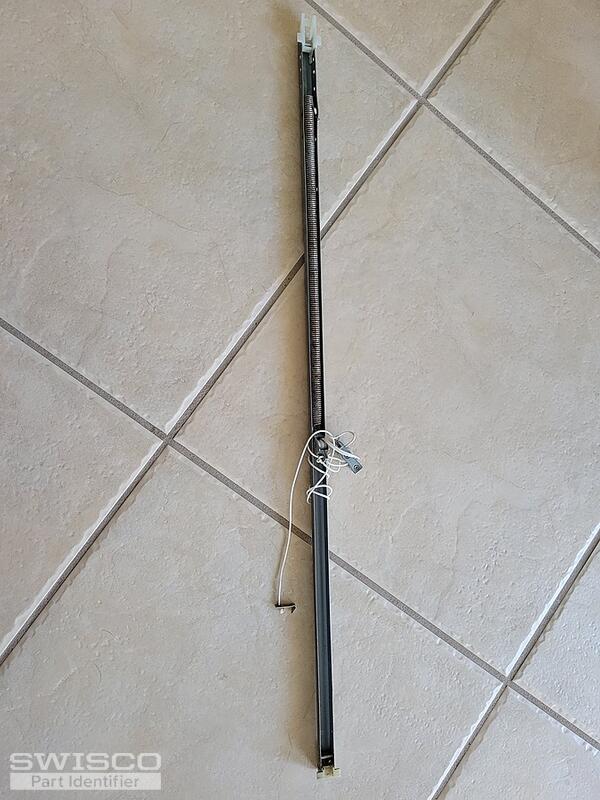

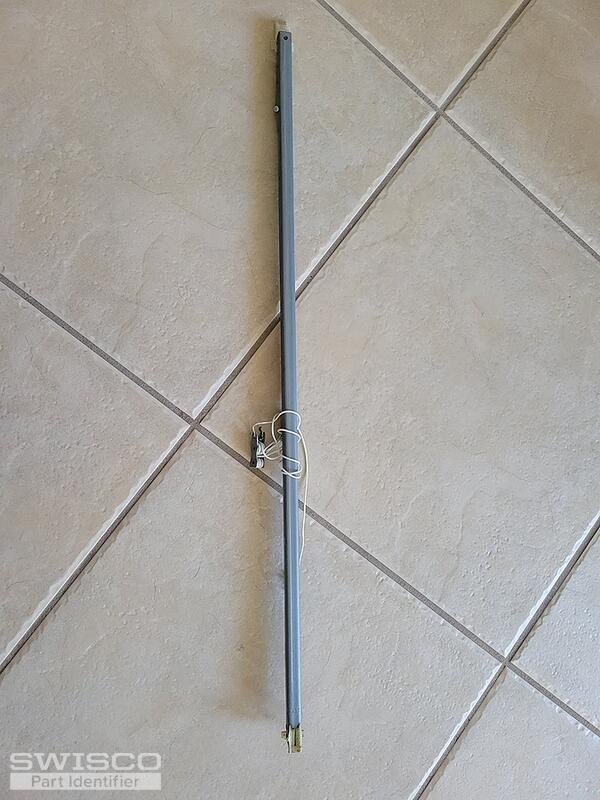

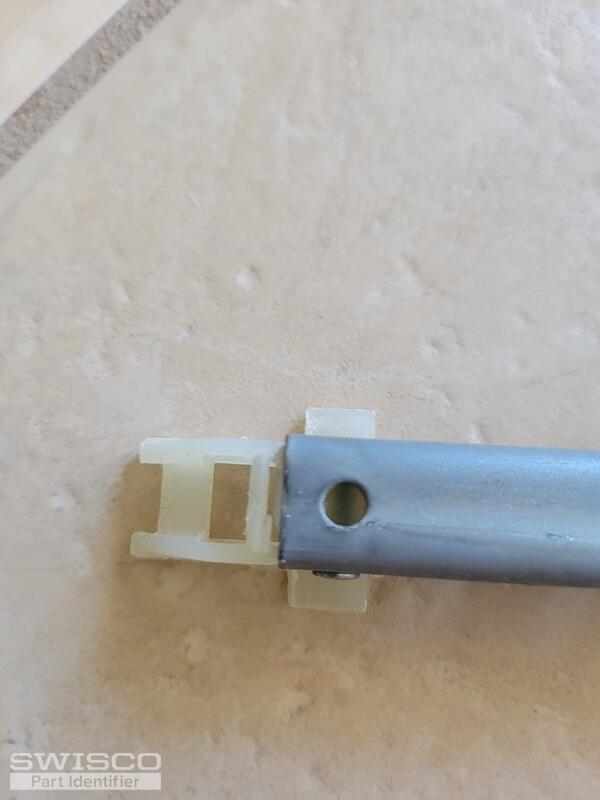

need to replace original balances. 29 inches long and stamped 28B
5 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting!

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will need a 29" balance with a 2820 stamp option, meaning your window sash weighs between 12-16 pounds.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Please let me know if you have any questions.
