2930 Channel Balance for a Non-Tilt Lawson Window

Handy Person from Weston, FL

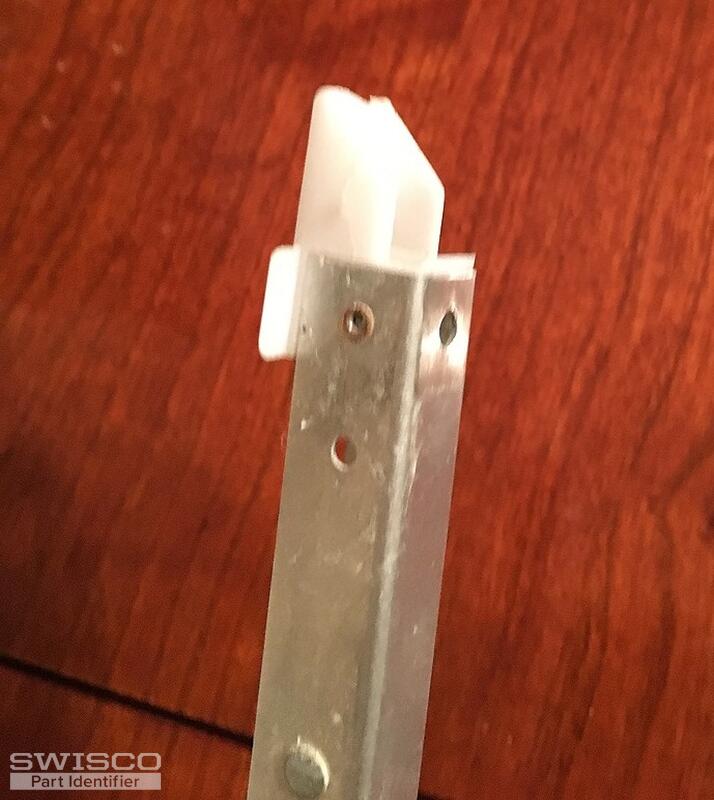

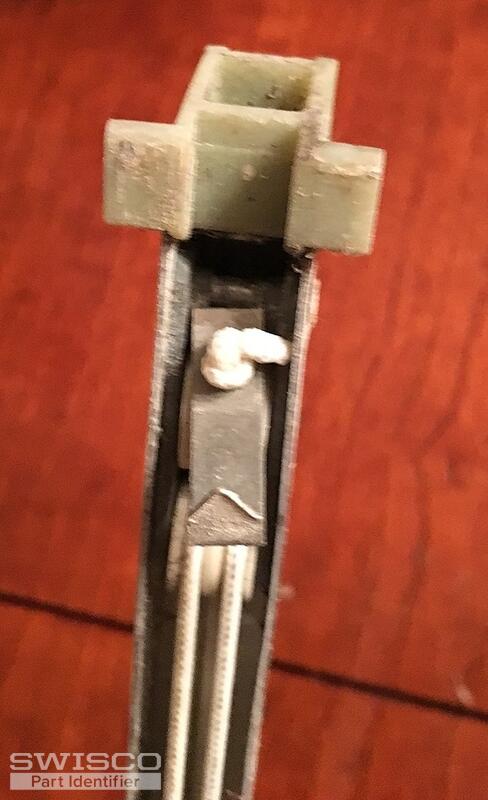

I need help identifying the Series for my 2930 Channel Balance for a Non-Tilt Lawson Window. Photos attached.

Thanks
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello and thanks for contacting SWISCO. This looks like either our S380-30 or S385-30 with a stamp option of 2930. The only difference between these two balances is the 'depth' of the bottom nylon shoe. With the Series 380 this depth is at 1"; with the Series 385 the depth is at 1-3/32". Compare these dimensions with your old part to see what makes the most sense.
