Quick Learner
May 14, 2024 12:45 pm
Hello i needed 2 of these please

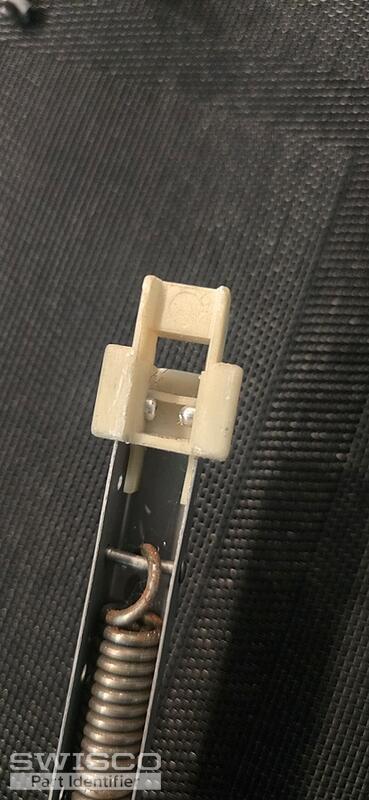

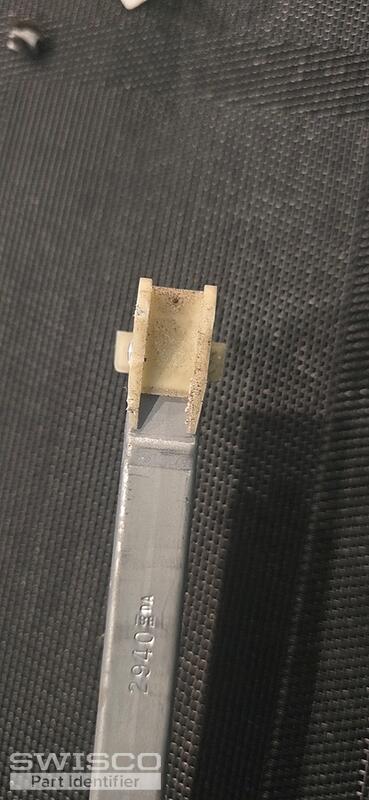

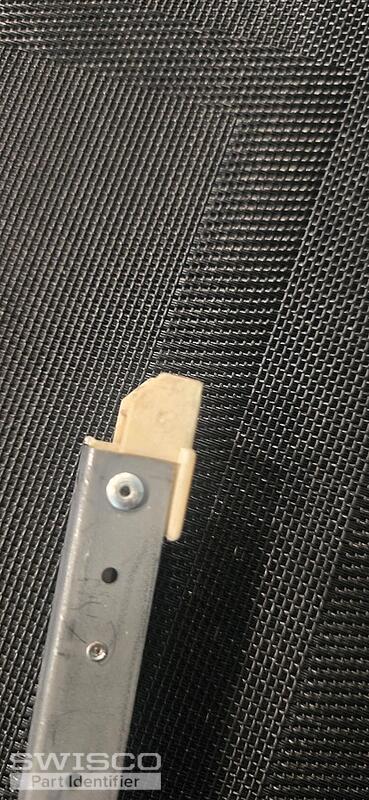

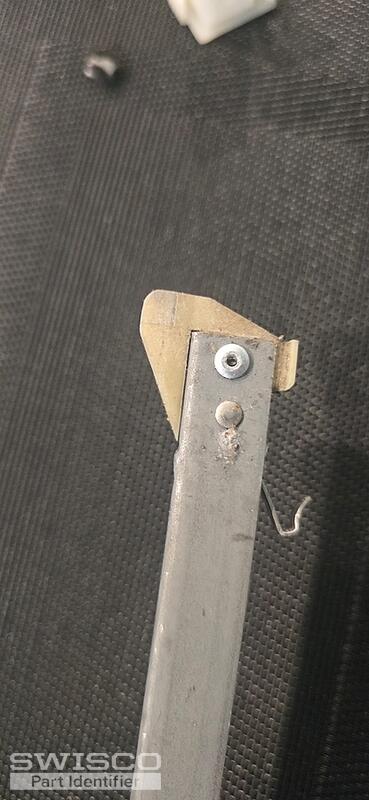

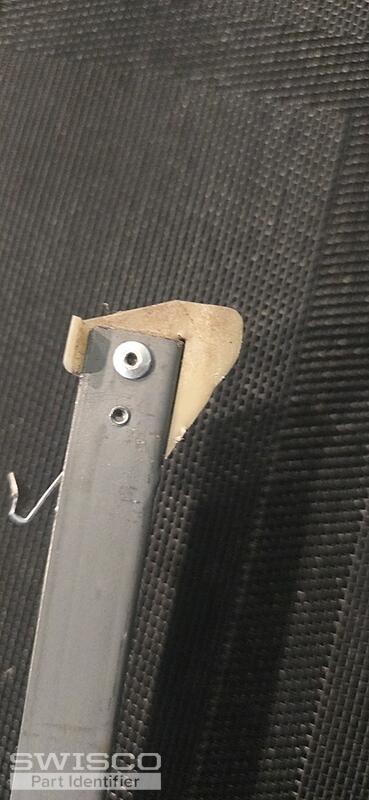

5 user uploaded images
1 Replies
Hello,
With this combination of attachments, you could have either the S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You'll also need 2940 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.
