2940 and 2930
Quick Learner from Littleton, CO
Apr 28, 2021 10:24 am

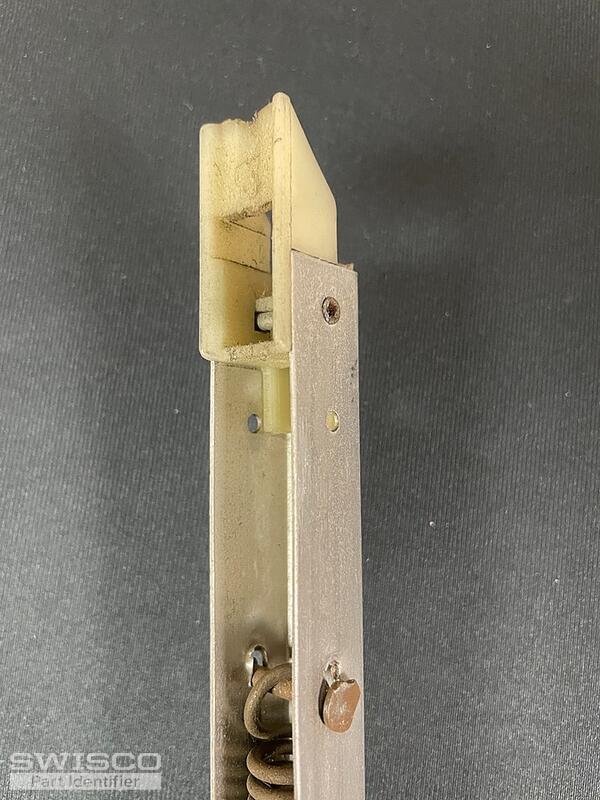

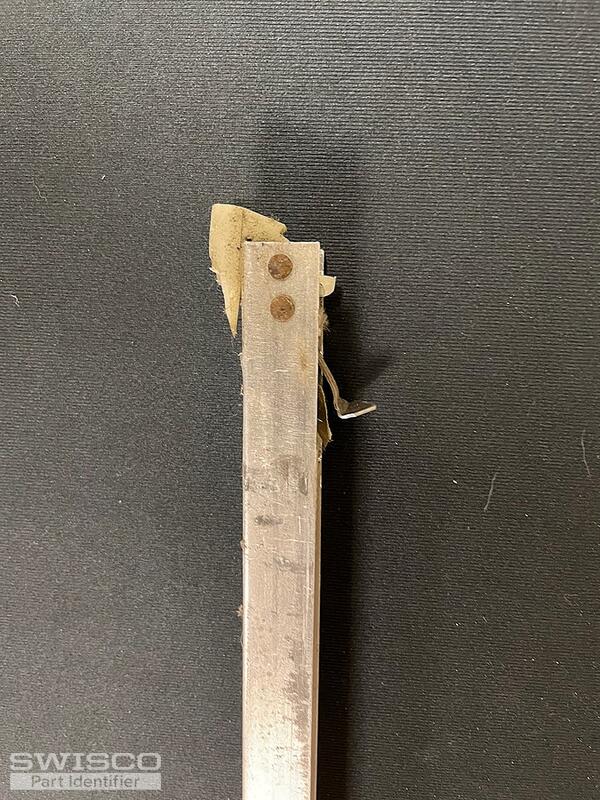

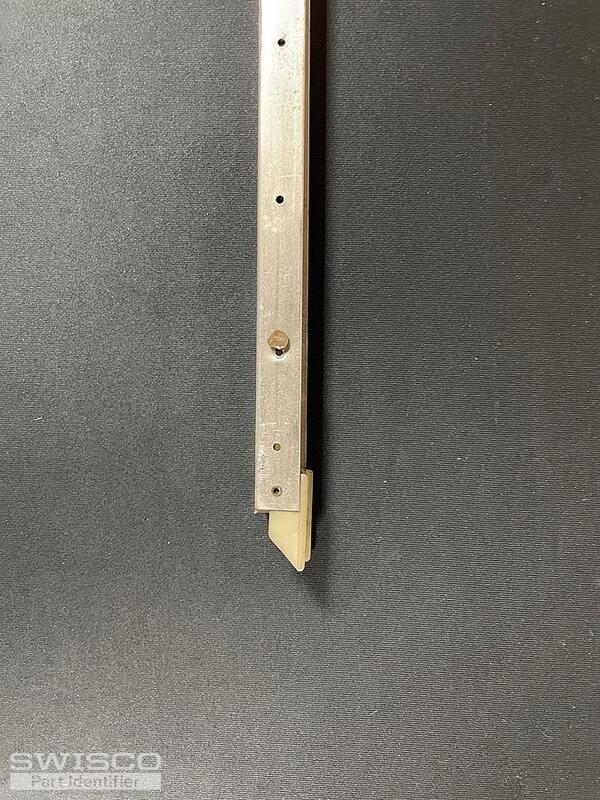

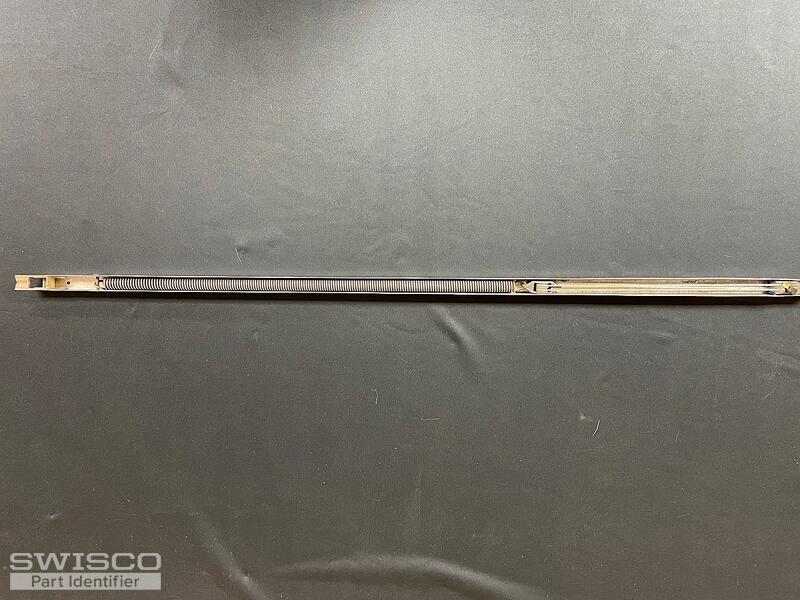

these parts are from 2 different windows, the steel channel is 30" in length. I need 4 channels total. Please let me know what I should order. Thanks!
5 user uploaded images
4 Replies
Emily from SWISCO
Apr 28, 2021 11:22 am
Hi there!
We can help but we'll need to see your bottom nylon fitting from a different angle to compare to our inventory.
Thank you!
Quick Learner from Littleton, CO
Apr 28, 2021 11:37 am

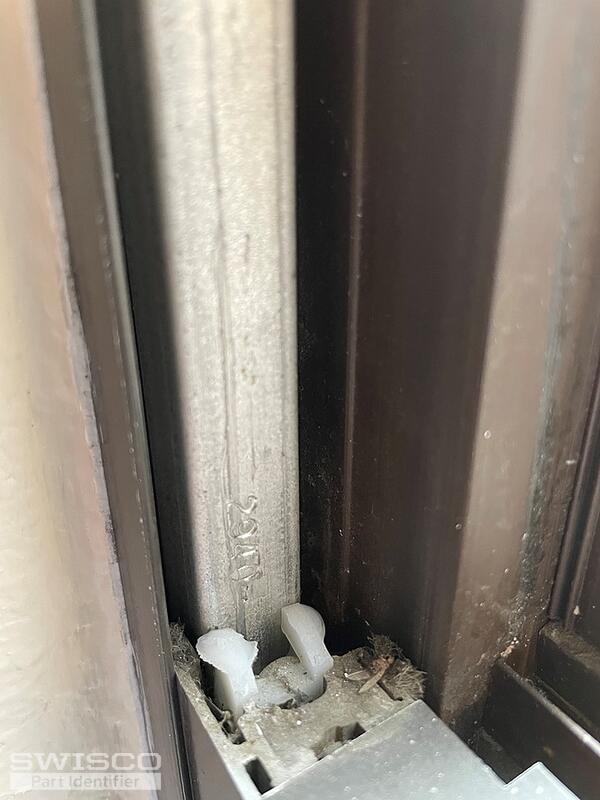

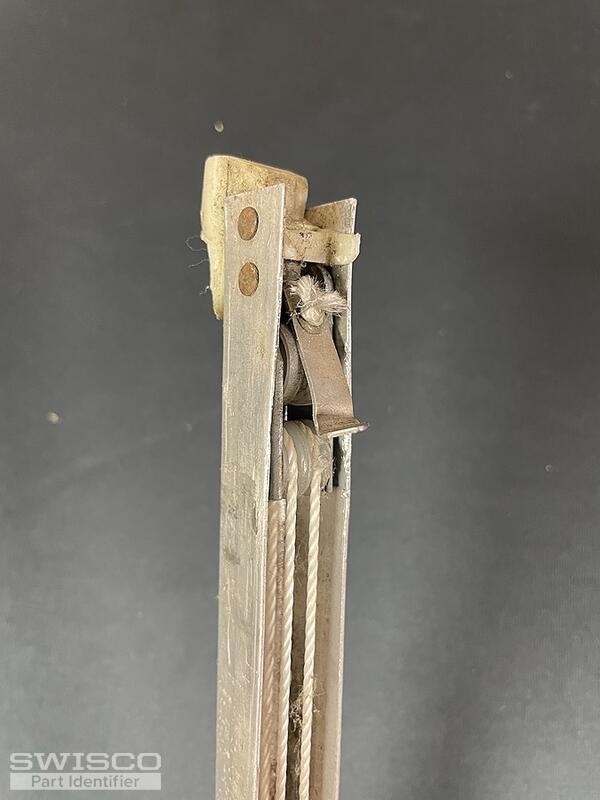

Please let me know if these pics are helpful, if not I can send more. Thanks!
2 user uploaded images
Emily from SWISCO
Apr 29, 2021 9:08 am
Thanks for the additional pictures!
It looks like you have either our S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need to remove and weigh your sash to choose the appropriate spring strength option. There's a chart on the S351 and S390's product page that shows you which option you'll need based on the weight of your sash.
If you have any further questions just let us know.
Comparison of the S351 and S390 balance shoes.
