30" channel balance

Quick Learner from Melbourne, FL

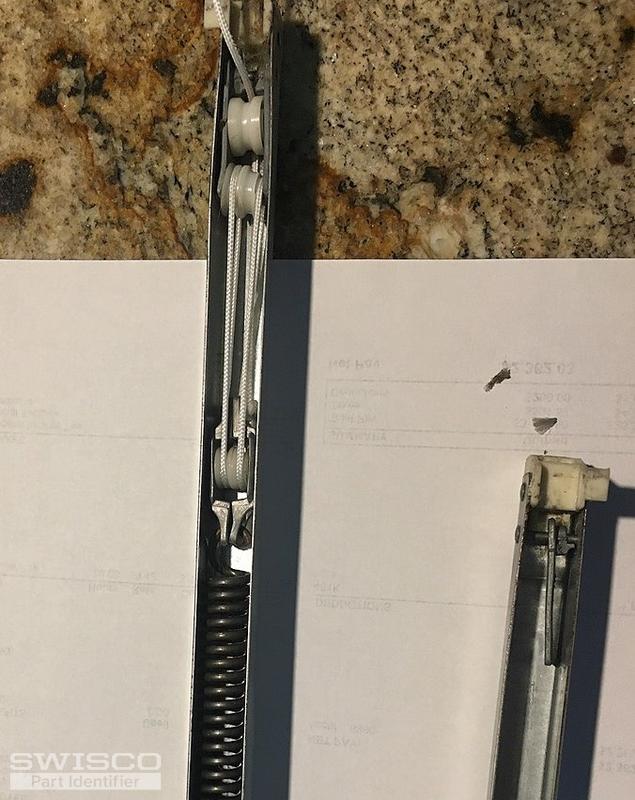

Didn't see an exact match. 377 seems close, but my shoe has only 1 tab, unless the other one broke off.

4 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

I am quite certain the other wing simply broke off the bottom nylon shoe, in which case the S377-30 seems promising. Just go over all the dimensions, particular of the top attachment (our 19-018), to ensure they match your old hardware. You'll need to pick a stamp option, which is usually determined by the stamp code on the metal channel. If there is none, or you are uncertain, obtain the exact weight of your window sash. You can then match that exact weight with one of the weight ranges listed alongside each stamp option on the product page.

Reply to Thread
Current Photos:
