30" channel balance

Question

hello,

First of all let me say that you have one of the most helpful websites that I've encountered in the entire field of home repair. Thanks for that.

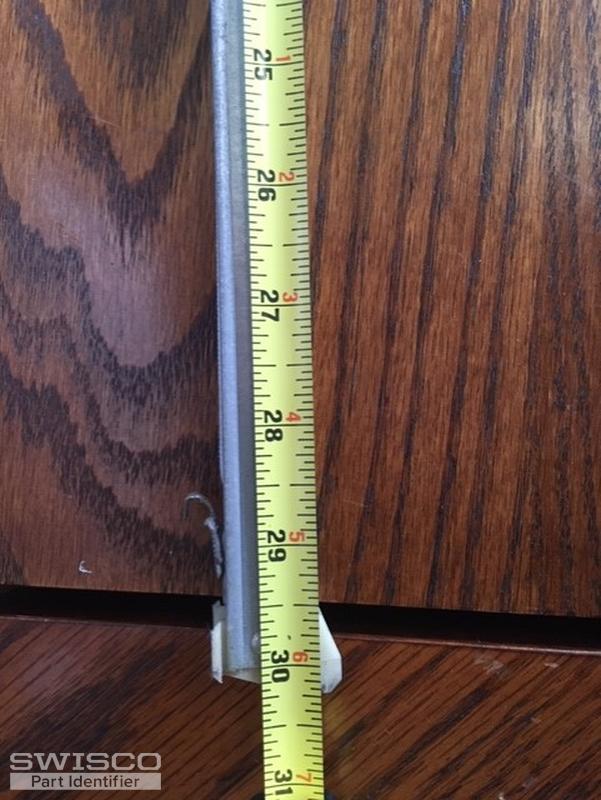

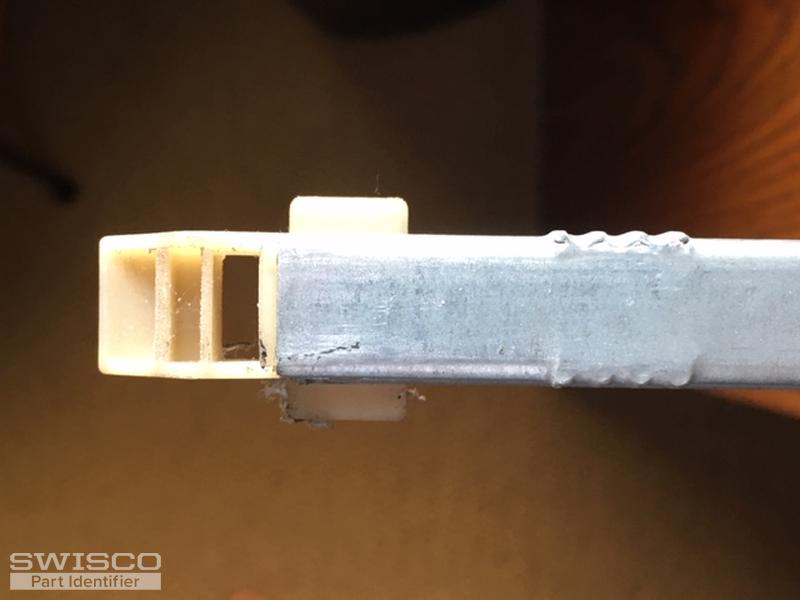

I need to replace the channel balance on a 33" wide sash window. The only markings on the balance are in the attached photo: 29 3 LS CALDWELL. There are no other stamps or markings on the balance.

Thanks for your help!

Casey · Accepted Answer

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2930 spring strength option for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
