30" channel balance

A quick learner from Florida says:
Looking # for parts to replace channel balance. Not sure about the weight. Pictures attached
Thumbnail of the uploaded file named 16106667600523145053967348810090.jpg
Thumbnail of the uploaded file named 16106668147585104797977972879408.jpg
Thumbnail of the uploaded file named 16106668494193931027042367261232.jpg

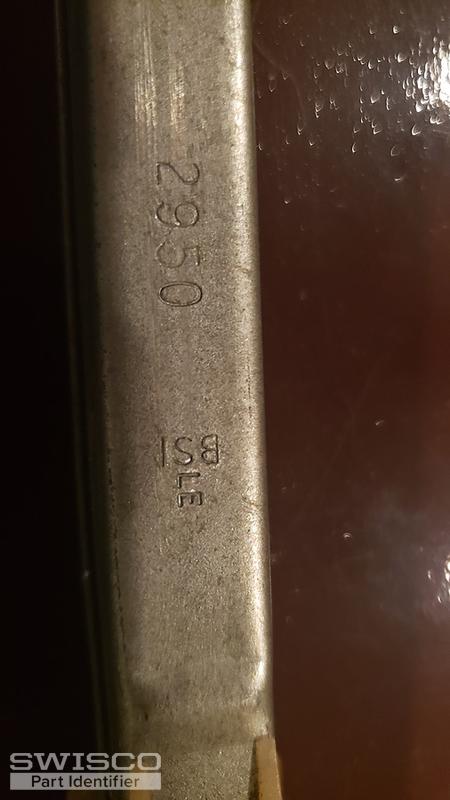

Thumbnail of the uploaded file named 16106668832527583552671896515209.jpg

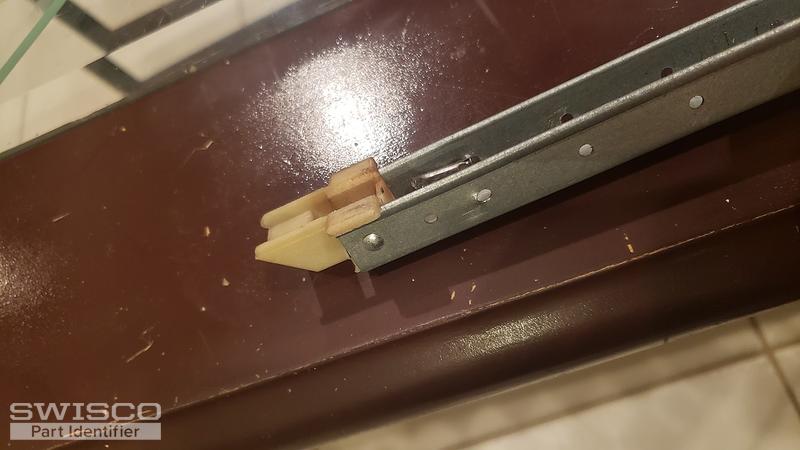

Thumbnail of the uploaded file named 16106669159947630547528195428678.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hello there. I'm confident we can replace this, but that stamp only tells us the spring weight. Can you show me a clear picture of the bottom nylon fitting as well? From there I should be able to narrow down your replacement options. Many thanks.

A quick learner says:
Thank you for quick reply, attached additional pics

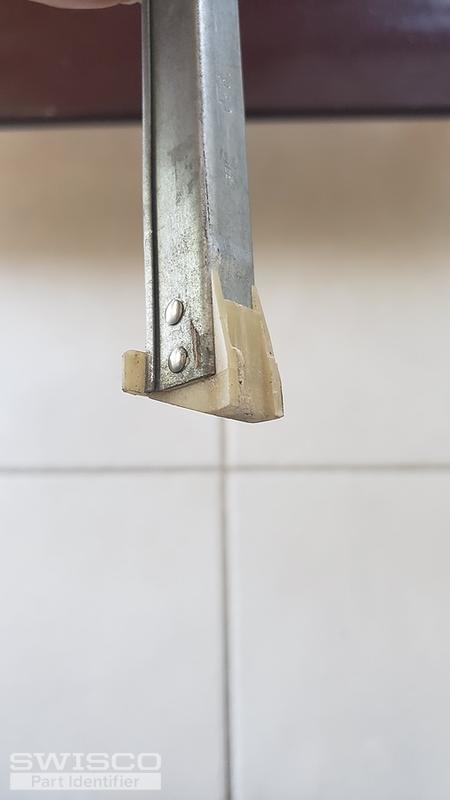

Thumbnail of the uploaded file named 1610728978366560211158254778629.jpg

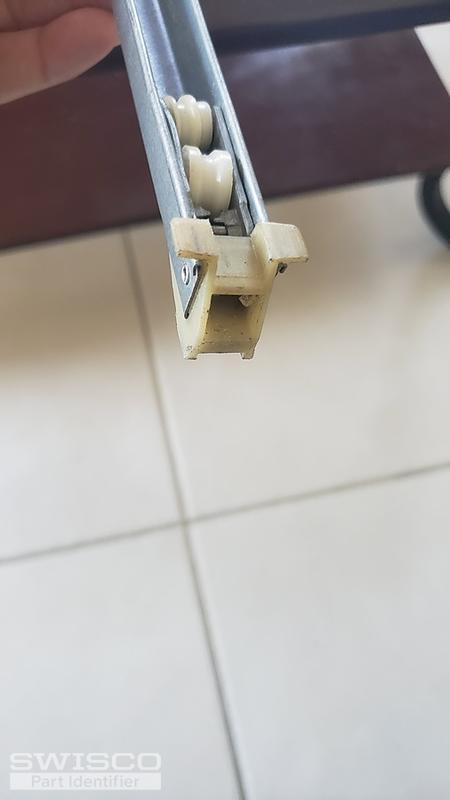

Thumbnail of the uploaded file named 16107290150387867430136836375909.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing back. This looks like either a 15-005 shoe or 15-029 shoe to me. The difference is in the depth, or the 'heel-to-toe' measurement perpendicular to and just below where metal channel ends. For the 15-005, this measurement is 1". This is the shoe that comes by default attached to our Series 380 Channel Balance, so if that's the shoe you have, that is the balance Series you need. The 15-029 though has a depth of 7/8". If that's what you have, none of our stock items use this shoe, but we'd be happy to build it for you via custom order. Let me know and we'll go from there.

A quick learner says:
Will this additional pictures help identified the exact bottom shoe?

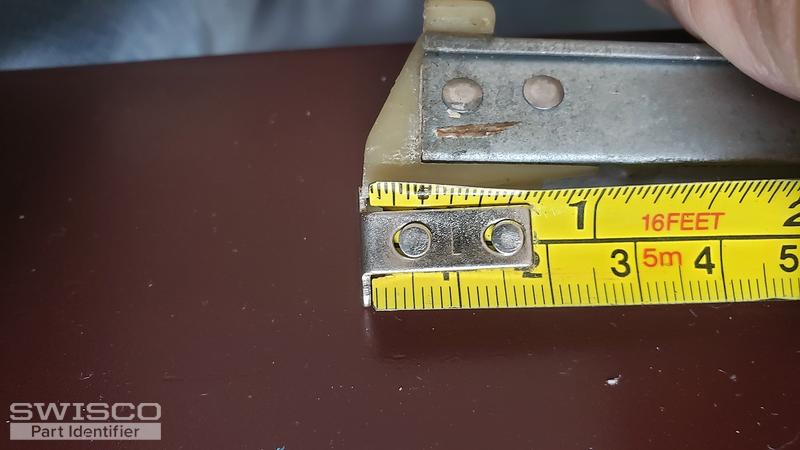

Thumbnail of the uploaded file named 16107355797601580373430222464137.jpg

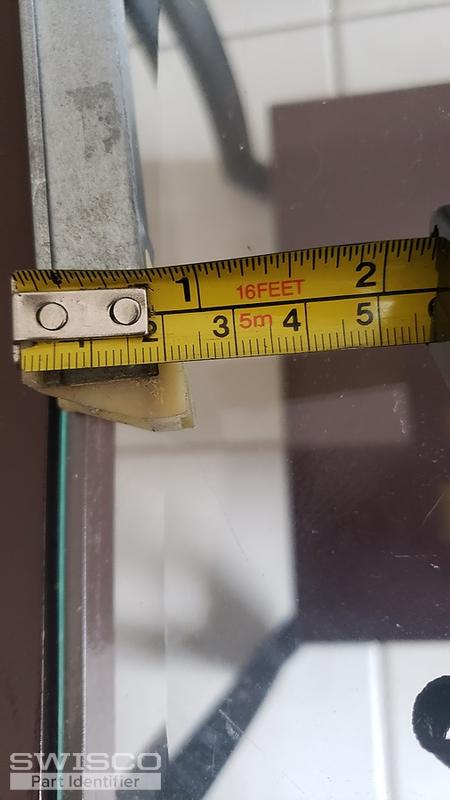

Thumbnail of the uploaded file named 1610735750955407470382342005246.jpg
Profile picture of Bob
Bob from SWISCO responded:

I'm afraid it's a bit tough to read measuring tape from a picture. The illustration below might help. It shows the depth of the Series 380 (1") as well as the similar Series 385 (1-3/32"). I didn't think you had the Series 385, but again, pictures can be deceiving for details this tiny, so it's best to measure out as the below image shows to confirm. Do your best, and let me know what you find.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
