30 inch channel balance

Quick Learner from Land O lakes, Florida

Apr 23, 2024 8:20 pm

Good evening, I am looking for a H-LC25/35-52 x96 channel balance. There are no markings on the channels. Please see attached photos.

Thanks, Moe

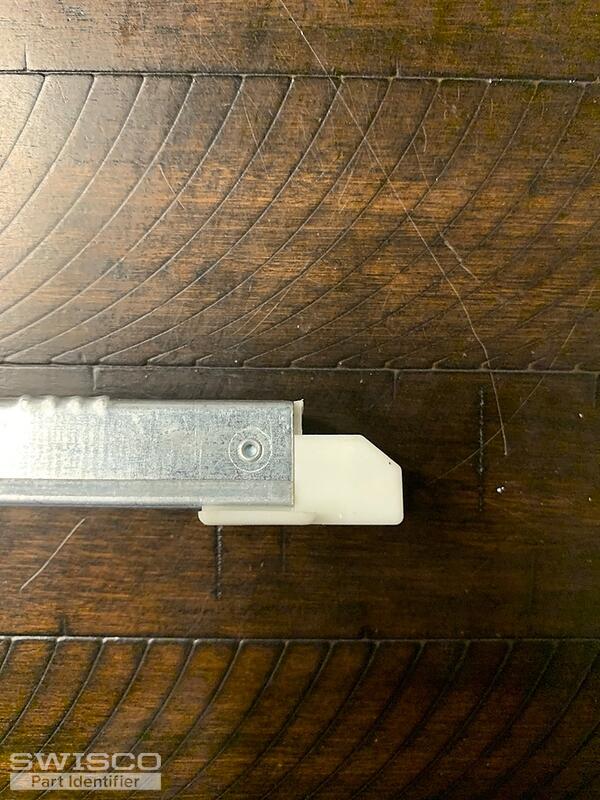

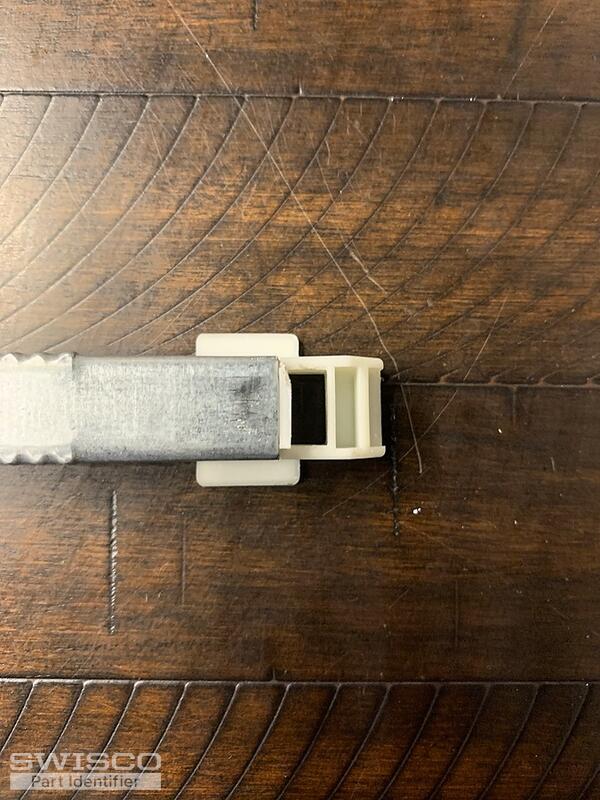

5 user uploaded images

4 Replies

Lauren from SWISCO

Apr 24, 2024 12:17 pm

Hi Moe, thank you for posting,

To further review, can we see a picture of the inside of the metal channel where the pulley system and spring engage?

Since there are no markings, we will need to know the weight of the window sash that these balances support. The sash will need to be removed and placed on a bathroom scale. Thank you!

Quick Learner from Land O lakes, Florida

Apr 24, 2024 2:46 pm

Hello Lauren,

Thanks for the quick response. The sash weighs 26.2 pounds. Please see attached pictures as requested.

Regards,

Moe

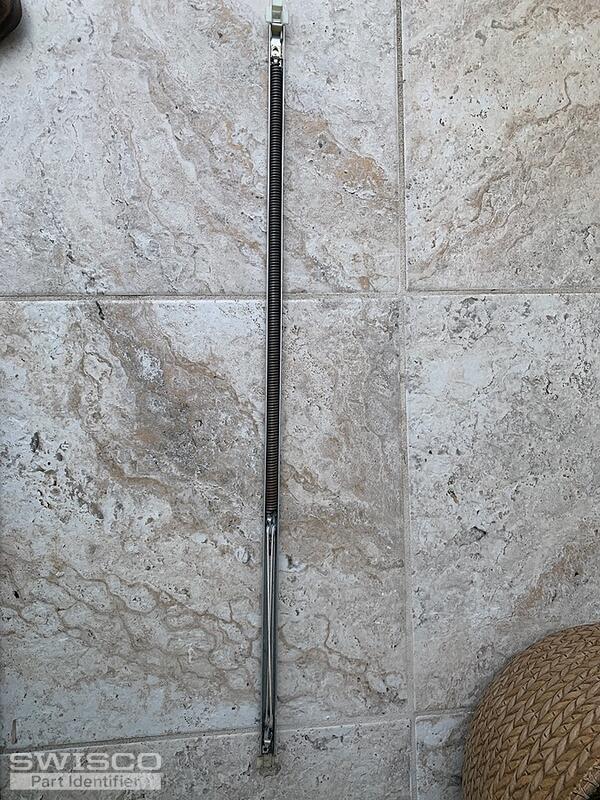

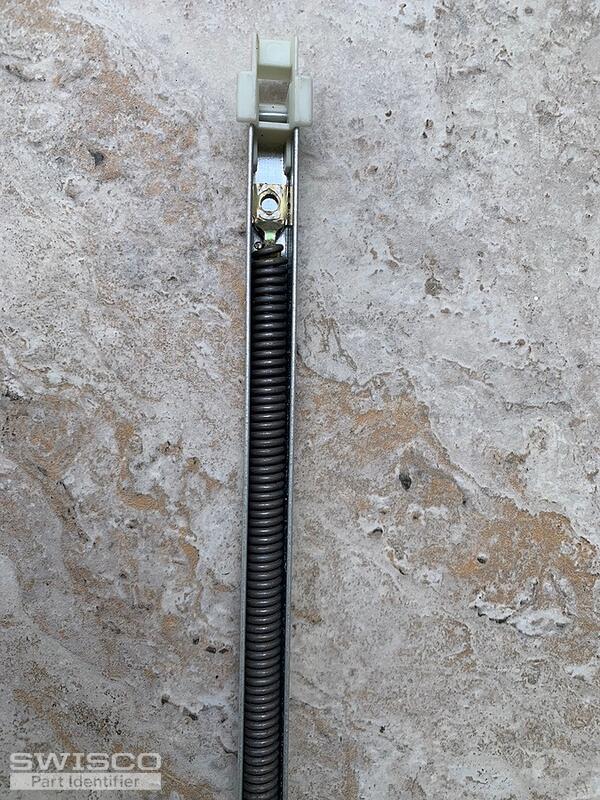

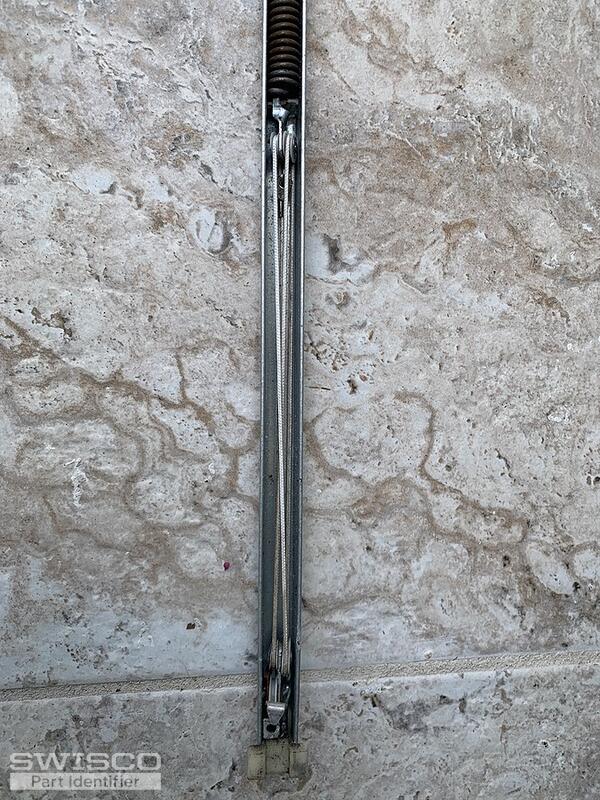

3 user uploaded images

Lauren from SWISCO

Apr 24, 2024 3:31 pm

Thank you,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

When determining the length, make sure you are only measuring the metal channel excluding the nylon attachments. If it is 30" as mentioned, you will need a 30" balance and a 2940 stamp option that can support a 26.2 pound sash weight.

Please review and let me know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.
