30 inch channel balance replacement needed

Quick Learner from Jacksonville FL
I'm looking for the proper channel balance to replace these.

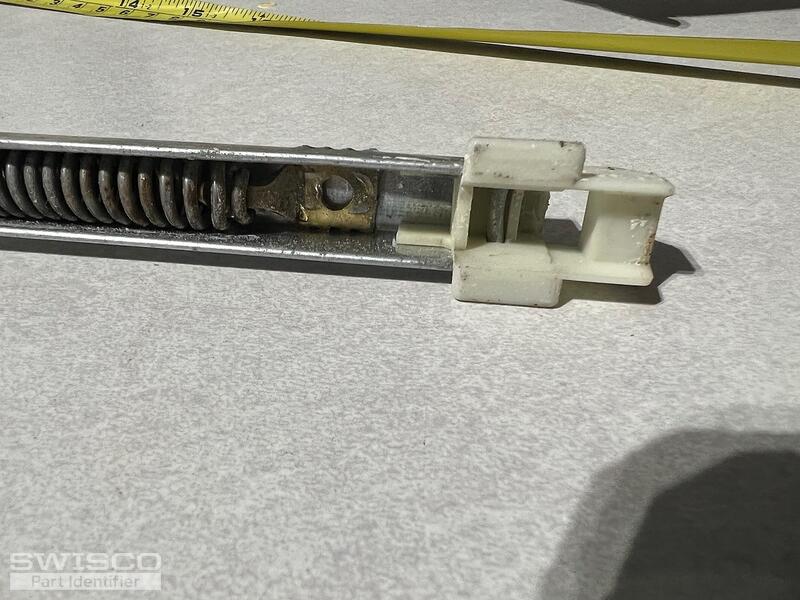

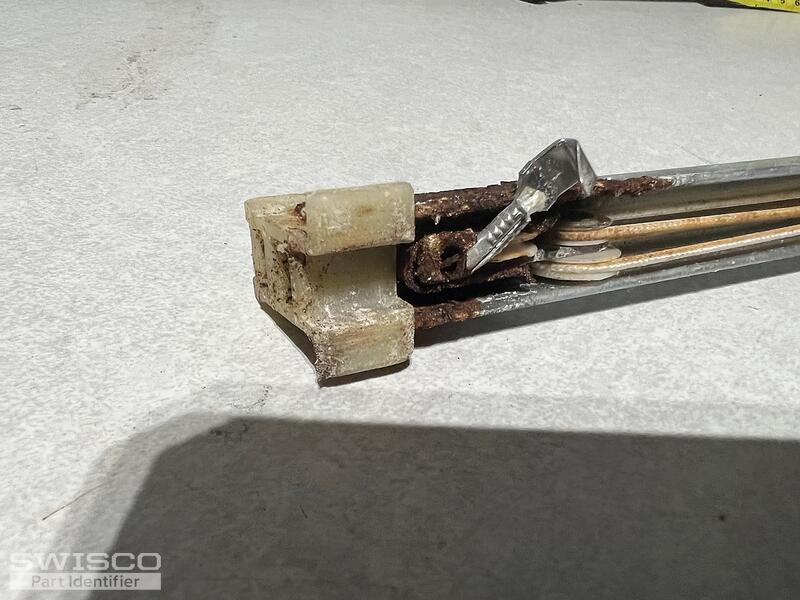

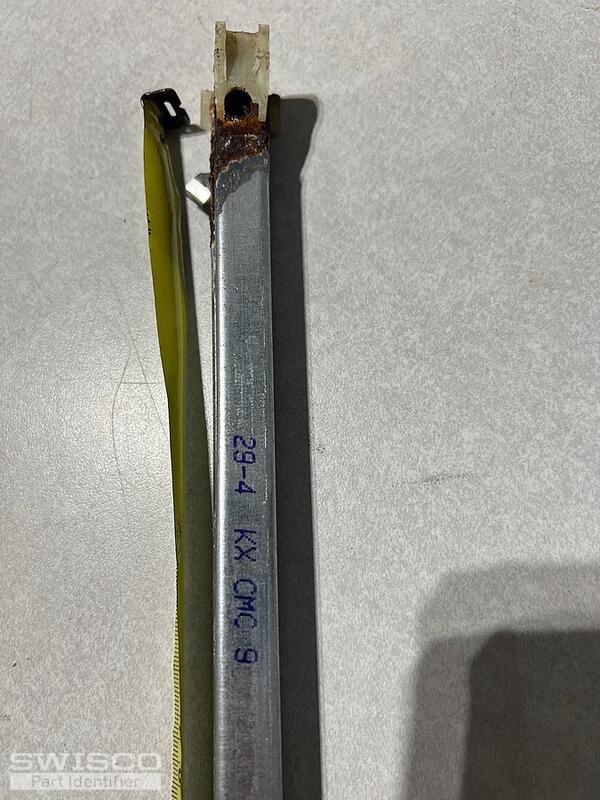

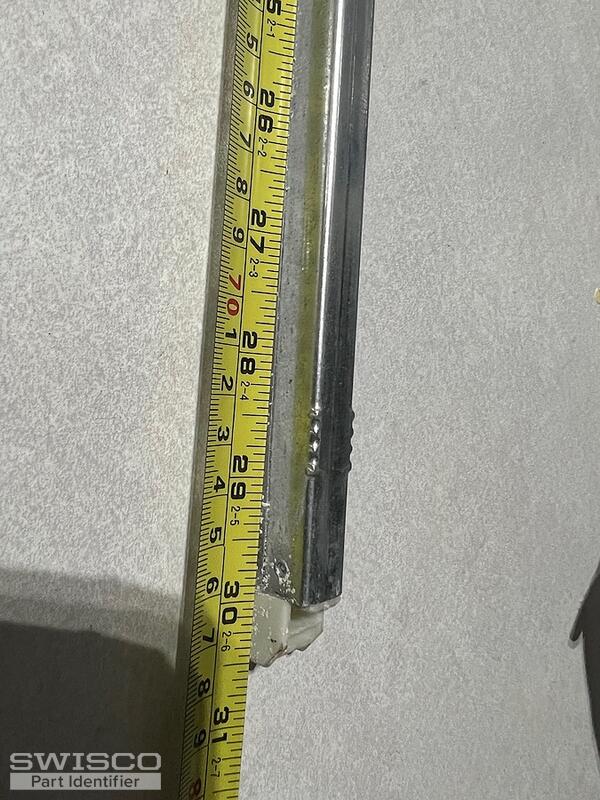

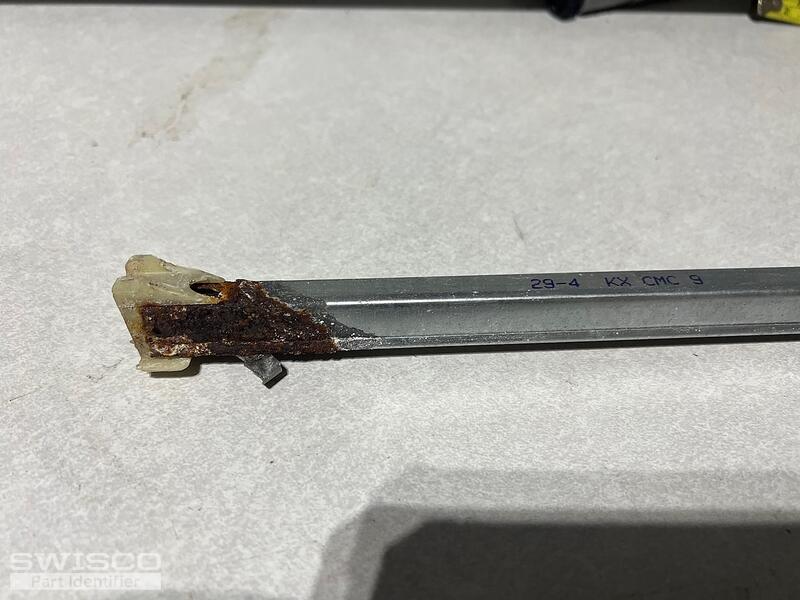

5 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting!

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will need a 30" balance with a 2940 stamp option.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Please let me know if you have any questions.
Reply to Thread
Current Photos:
