30 inch channel balance and window locking mechanism

A quick learner from Naples fl says:

I need channel balances and window locks

thank you

Peter

Thumbnail of the uploaded file named IMG_2076.jpeg
Thumbnail of the uploaded file named IMG_2077.jpeg
Thumbnail of the uploaded file named IMG_2078.jpeg

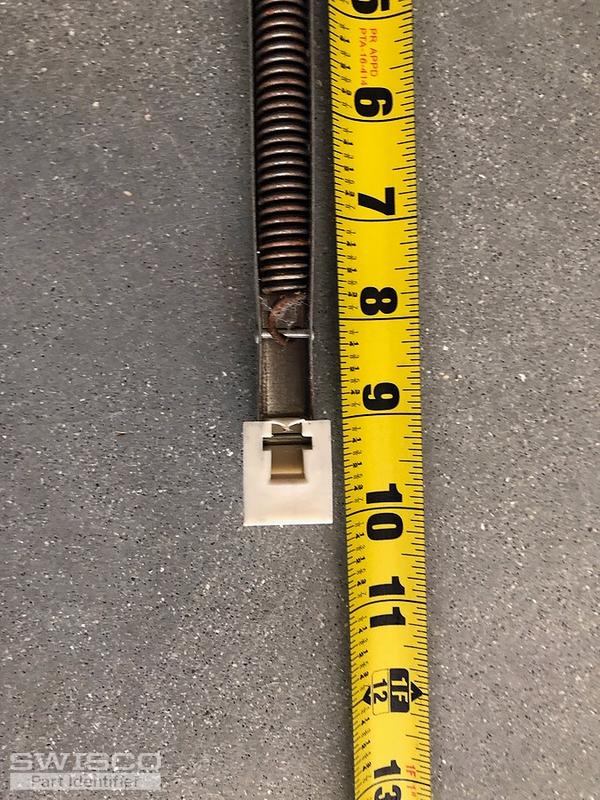

Thumbnail of the uploaded file named IMG_2079.jpeg

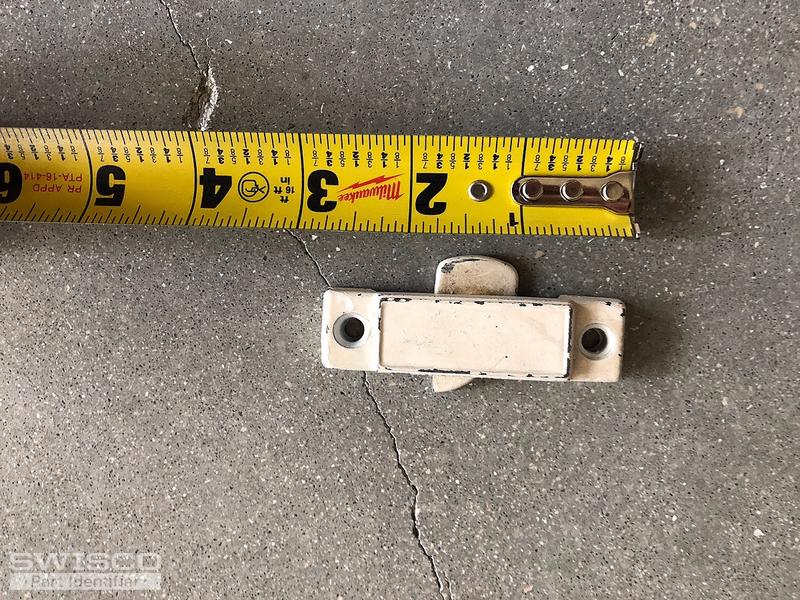

Thumbnail of the uploaded file named IMG_2080.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hey, Peter. Looks like your balance will have to be a special order. Specifically, it looks like you have a 19-041 top and 15-005 bottom nylon fitting. Does that look right to you? If so, can you tell me what the stamp on the metal channel reads? Can you also tell me how many you need? Once I know that, we'll email you an order link and price quote for that quantity.

The lock looks like our 90-005.

A quick learner from Naples fl says:
I think its stamped:

2930
BSI
KM

I need 2 channel balances

I also need 4 of the side clips

Thank You

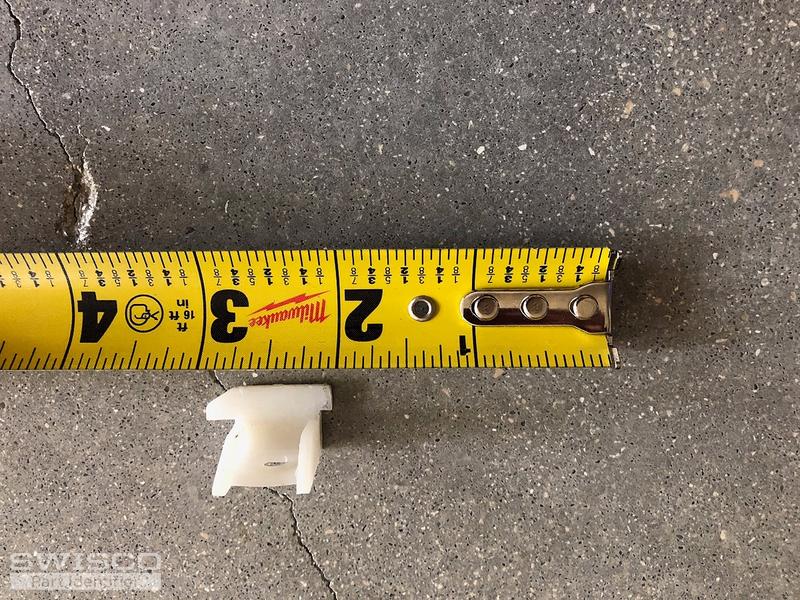

Thumbnail of the uploaded file named IMG_2081.jpeg

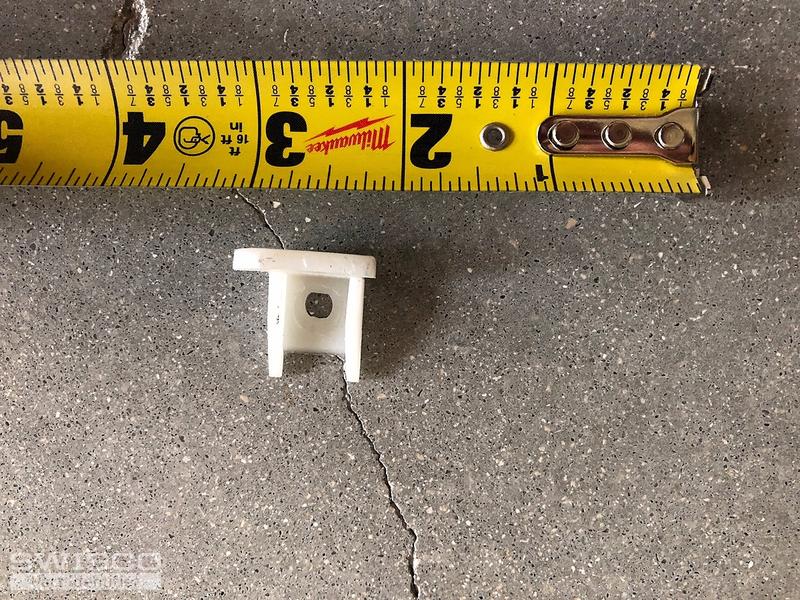

Thumbnail of the uploaded file named IMG_2082.jpeg

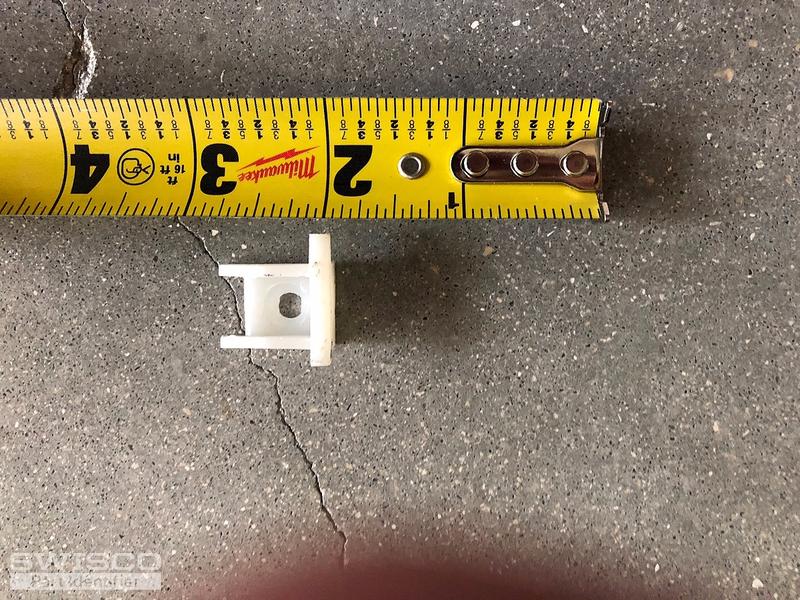

Thumbnail of the uploaded file named IMG_2083.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks! I'll go ahead and email that order link and price quote to you now. This will allow you to add the custom balance to your cart as if it were a stock product, allowing you to continue shopping for anything else as normal.

The side clip you show looks like a top sash guide; specifically, it looks like our 18-042.
