30 inches long, marking 2922DS BJ

Home Owner from Ron

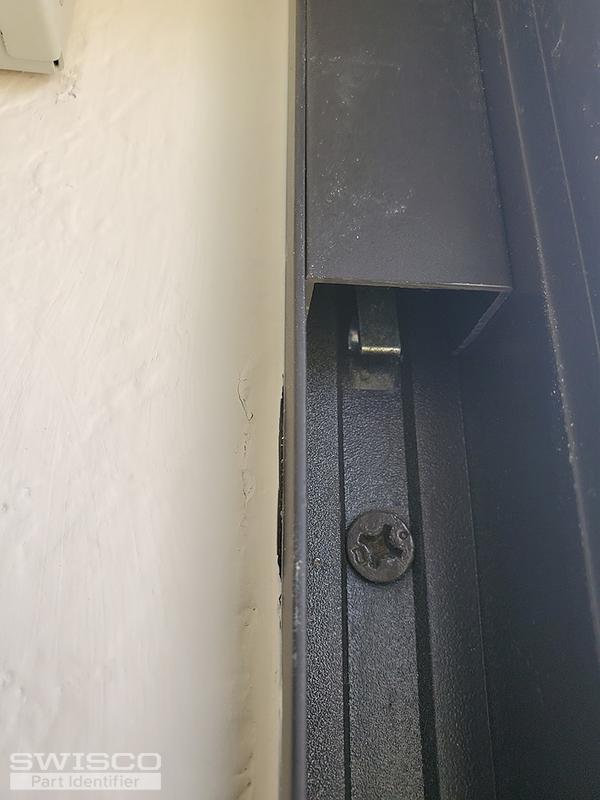

Need window balance bars. 30 inches long marking 2922DSBJ. See photos. Thank you Ron.

4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Home Owner from Ron
The window weighs 45lbs
Casey
Casey from SWISCO
SWISCO
Expert

In that case, you should be able to use a 2975 strength option for your replacement balances to support between 42 and 45 lbs.
