30.3 BSI

A quick learner from Irvine says:
Need replacement
Thumbnail of the uploaded file named EAAD6FC0-6D3B-48F5-9489-28439B42F902.jpeg
Thumbnail of the uploaded file named 30 3  BSI
Thumbnail of the uploaded file named C14B616E-A10B-43B1-B7C1-41D13D53E85F.jpeg

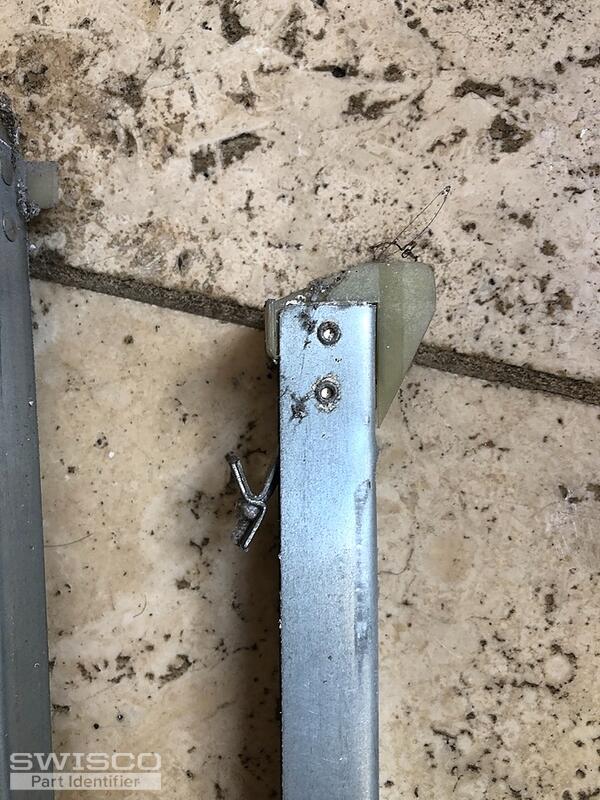

Thumbnail of the uploaded file named 595C16FF-49E9-4C69-BF33-7FDEBEF7B09C.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-31 or S385-31 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3030 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from Irvine says:
The window is heavy to pull up for the current spring strength, can I increase it to make it easier for pulling up and down?
Profile picture of Casey
Casey from SWISCO responded:

In that case, I would recommend weighing the window sash on a common bathroom scale and following the chart under the balance product description to confirm the correct strength option for your window.

A quick learner says:
it weight 25 lbs
Profile picture of Casey
Casey from SWISCO responded:

Then you'll need a 3040 strength option for your balances to support a sash weight between 23 and 28 lbs.
