30614 & 30893

Question

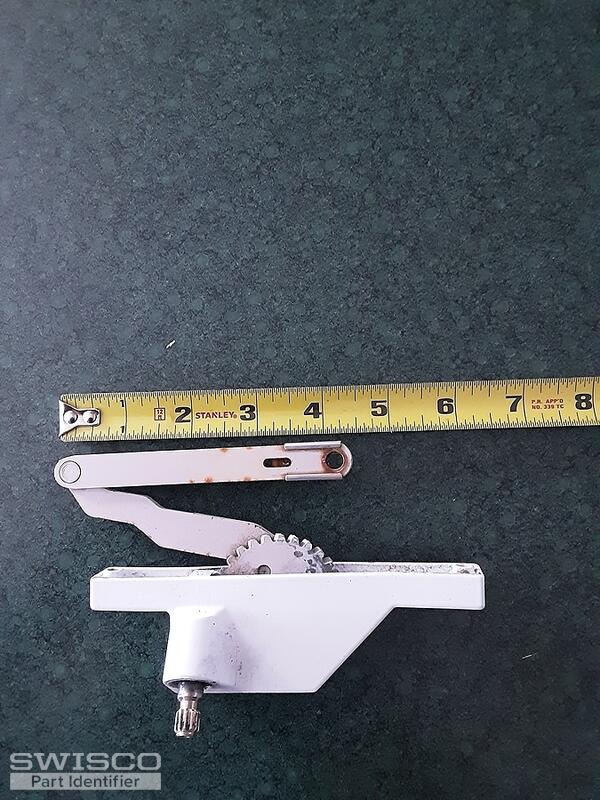

The sash Dyad cranks 5" 39-187 & 39-188 are an almost perfect match for my hardware including the 5" hole dimension. how ever the 5" arm length is a 1/2" to long, my crank has an arm dimension of 4 1/2". do you think it could work or will I have to drill another hole & trim it down?

Emily · Accepted Answer

Hello!

I'm afraid we've never been able to find a version of the 39-187 and 39-188 with a 4-1/2" arm. There are a couple solutions you can try, though both will require a little handy work.

The first is to adjust the bracket on the sash to which the old 4-1/2" long arm attached so that it will better work with the new 5" long arm.

The second is to drill out both arms, then put the old 4-1/2" arm on the new operator using our 62-014 rivet.
