30744 Stamp on top hinge/ 40941-A Stamp on Bottom Hinge, I will also need the window operator.

A contractor from 18017 says:

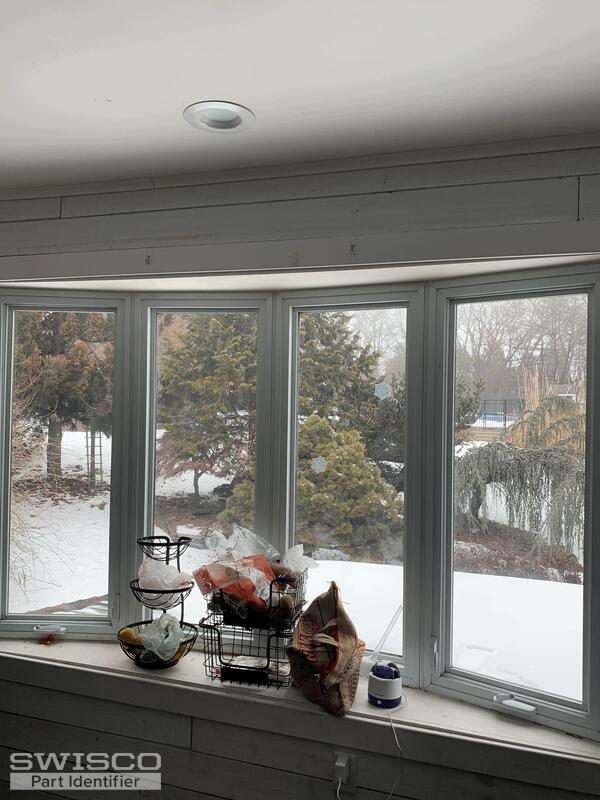

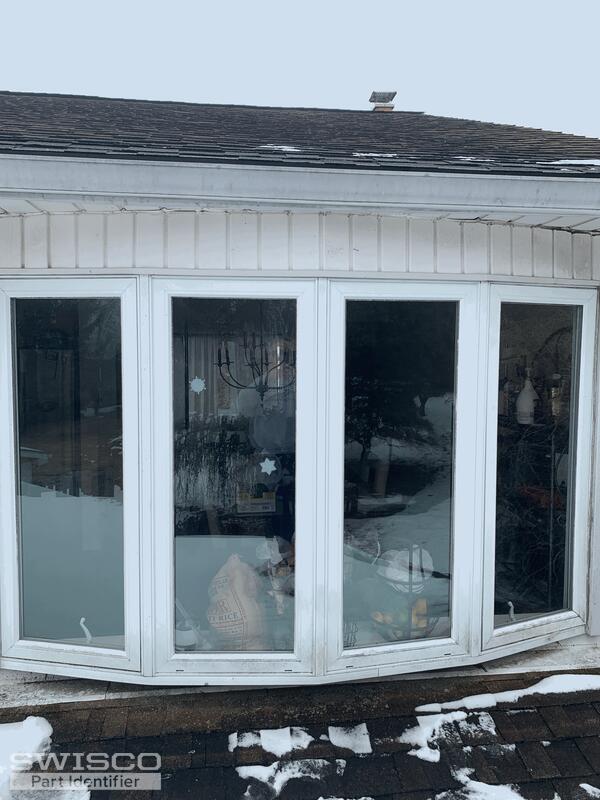

4 Window Bow Window, L & R are casements. Unable to ID the Manufacture, No remaining stickers. Installed approximately 1987.Pictures are from the R/H operable working window. L/H Hinge has broken & missing parts & screws and does not operate or close properly. Due to weather conditions, I chose to not disturb it at this time.

Obviously Truth Hardware. Can we ID the RH components to purchase the new hinges for the LH inoperable sash?

Please let me know if other info is needed.

PS The Windows have multi point locking.

Thumbnail of the uploaded file named tempImageHxhUEQ.gif
Thumbnail of the uploaded file named tempImageakxZpT.gif
Thumbnail of the uploaded file named tempImagebka3Bt.gif
Thumbnail of the uploaded file named tempImagerkgapk.gif
Thumbnail of the uploaded file named tempImageGUeVnR.gif
Profile picture of Tom
Tom from SWISCO responded:

Hello! I believe our 36-048 hinge can work perfectly fine for you, as long as you replace the top and bottom at the same time. The video at the end of this response will show you how.

As for the operators, you have older versions of our 39-220B and 39-221B . We also sell the 39-452 and 39-451 cover and handle kits separately.

How to Replace a 2-Bar Hinge Set on a Casement Window
How to Replace a 2-Bar Hinge Set on a Casement Window
VIDEO
WATCH >
How to install an Encore dyad operator
How to install an Encore dyad operator
VIDEO
WATCH >
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
