30841L parts assembly needed

Question

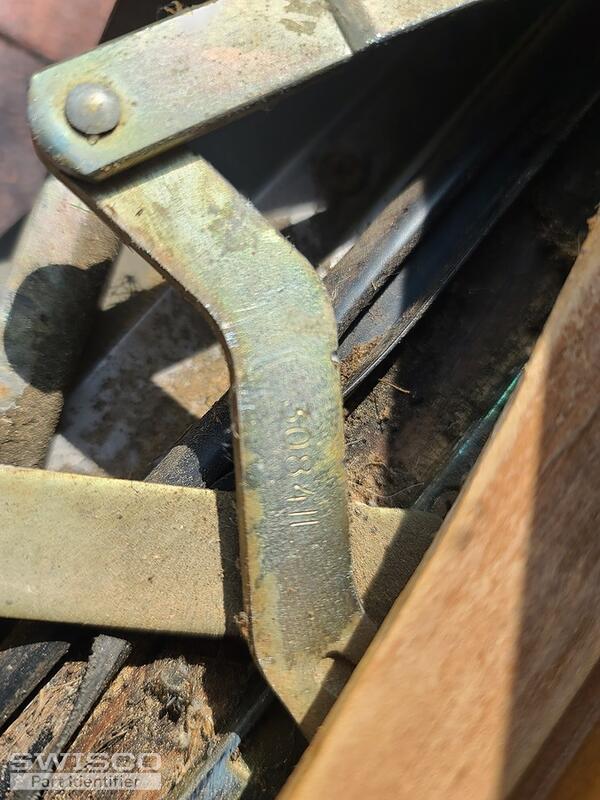

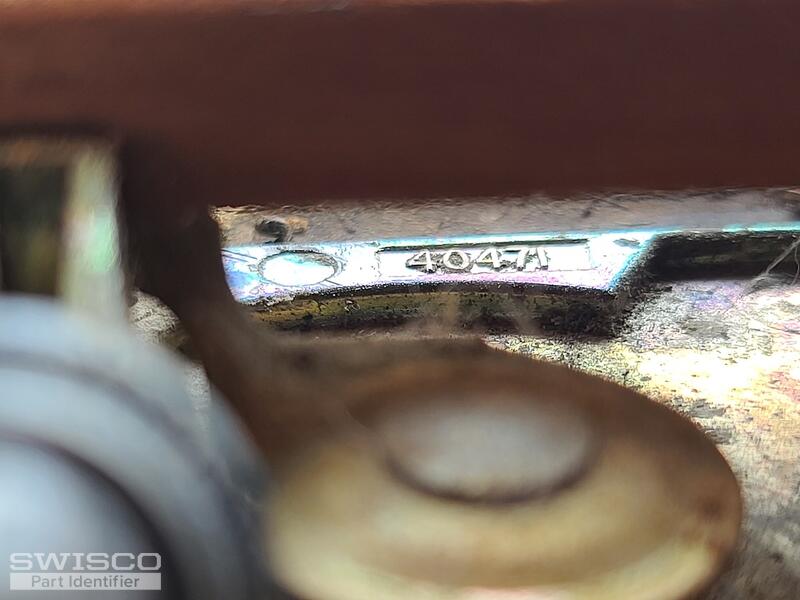

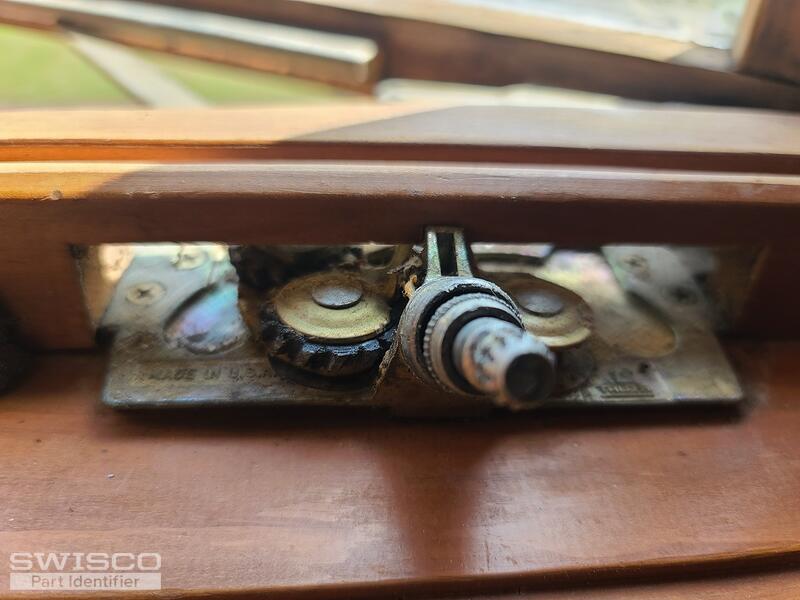

I found the part # 30841L on the arm, and 40471 on the base piece by the gears.. I believe it is a clay color, however I am not finding the operator cover in the clay color. I need the crank,assembly,and operator cover.

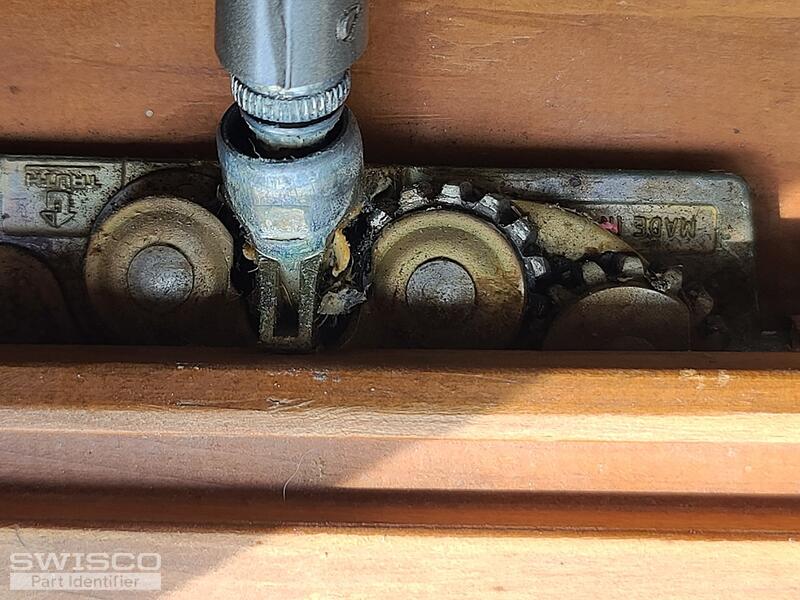

One last question- the crank is stripped for sure. Do I need to replace the arm operator AND crank? Or just one ? Thank you!

Jasmine · Accepted Answer

Hey there, thanks for posting! Your operator resembles our 39-031 Truth Dual-Arm Operator (the opposite handed version is part 39-032 ). Compare the dimensions from your existing operator to those shown on the diagram below.

Dimensions for 39-031

These operators are compatible with the 39-107 cover along with the 39-114 non-folding handle, like the one you have. There is also the more updated version of the non-folding handle, part 39-114L or the folding crank handle, part 39-205 . The last option is the 39-107FK , which is a folding crank and handle kit.

Take a look and see what you think!
