31 in 3030

A home owner from MO says:
Need replacement balances
Thumbnail of the uploaded file named 20221001_115952.jpg
Thumbnail of the uploaded file named 20221001_115934.jpg
Thumbnail of the uploaded file named 20221001_114810.jpg
Thumbnail of the uploaded file named 20221001_120003.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello there!

Your balance is a match for our S351-31 or S390-31 but the best option depends on the size of the bottom shoe. Our Series 351 has a 1" deep shoe and the Series 390 has a 1-1/8" deep shoe so you'll need to measure as shown below. You will also need the 3030 spring strength option, based on your 3030 stamp.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

A home owner from MO says:
Where do I find the spring strength info on old part. How does appear, numbers,letters etc. Thanks
Profile picture of Emily
Emily from SWISCO responded:

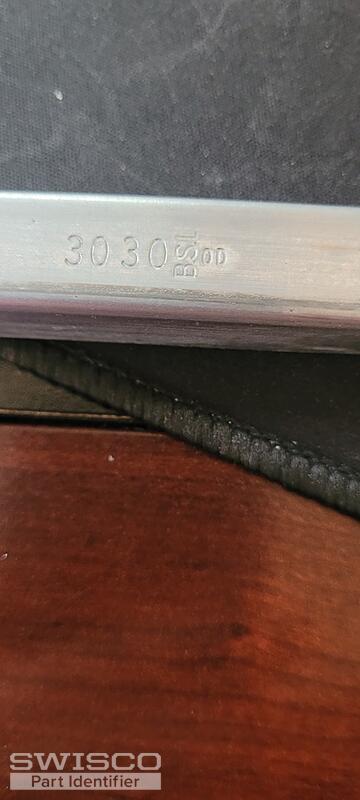

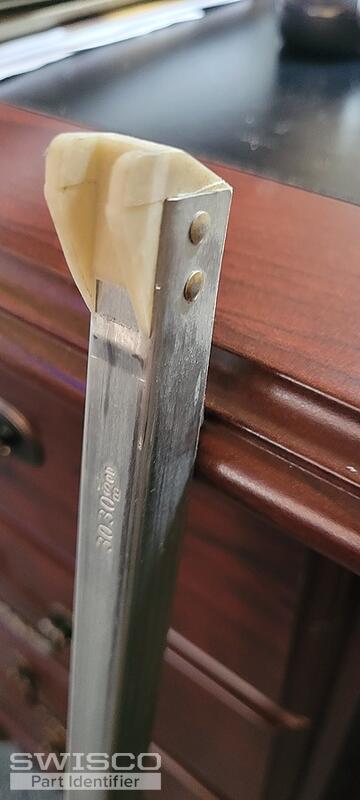

That would be printed on the metal channel. In your second picture in this discussion thread, there's a 3030 stamp which means you'd want the 3030 spring strength option.
