Entry Gard 31538A casement window operator replacement

Handy Person from ocean city, nj
May 18, 2012 4:02 pm

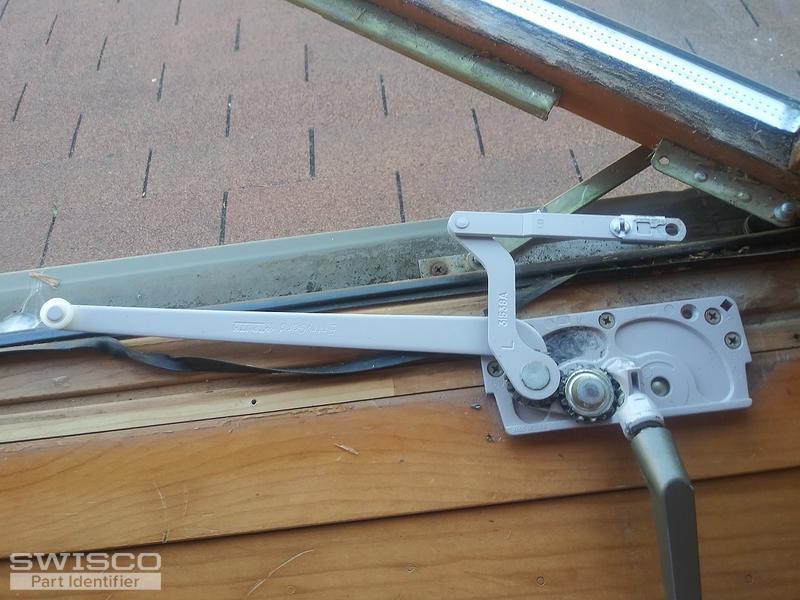

Hi, I need to replace the hardware on my beach house casement windows. 3 pictures are attached. window manufacturer unknown. casement operator has Entry gard, truth, 31538A on linkage and 45273 on fixture screwed into window frame near crank. windows open and close but are broken at the top hinge point. several windows are broken. please advise

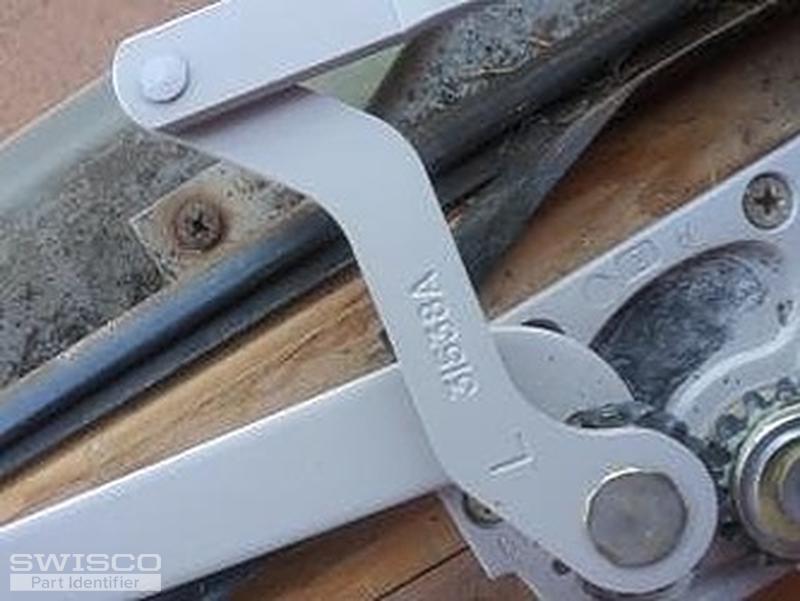

A customer submitted photo of a window operator.
3 Replies
Dave Sr.
Dave Sr. from SWISCO
May 21, 2012 10:54 am
SWISCO
EXPERT
Thanks for posting! Have you seen our 39-031 & 39-032 EntryGard operators? Do you think these may work for you? Please make sure to match up their dimensions to your own hardware.
Home Owner from sioux falls, sd
Sep 23, 2020 11:45 am
need window operators stamp on left unit is 31538A..long arm is 10.75. short arm is 4 7/16. looks to be your 39-031 for left unit. 30-032 for right unit. right units do not have a stamp on then. Had called and the operator requested pictures for conformation. In need for two right and two left units. all truth entry guard stamped. thanks kenny
1600824469818 20200922_102626
2 user uploaded images
Casey
Casey from SWISCO
Sep 24, 2020 8:50 am
SWISCO
EXPERT

Hello,

I agree that the 39-031 and 39-032 operators would be the correct replacements as long as the dimensions on our product page match up to your original hardware. Thanks for posting!
