The window sash weighs about 22 lbs.
If weighed without balances it was about 20 lbs.
(It is for a sash that is: 27 1/2" wide x 32 1/8" long.

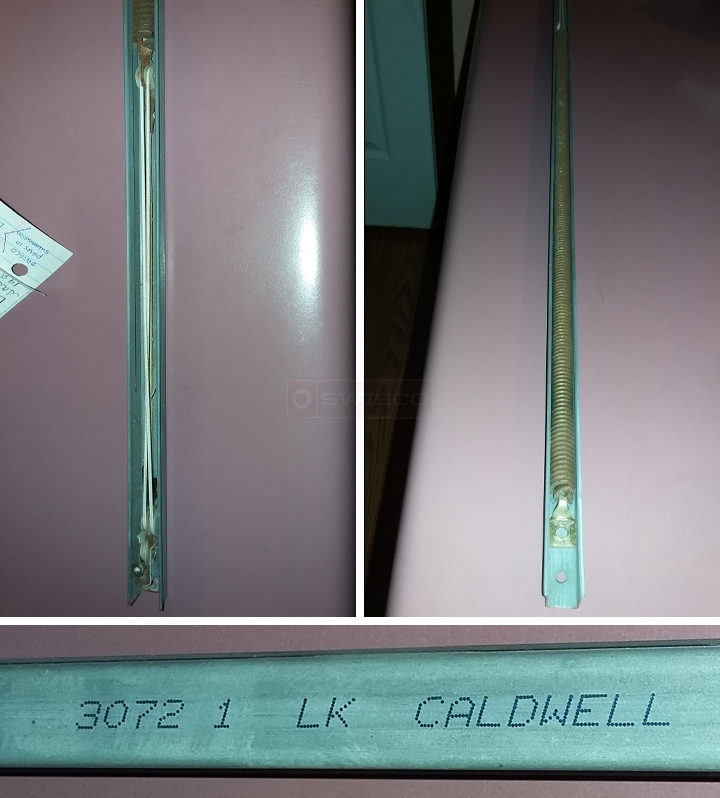

It says 3072 1 LK Caldwell on it. This is different than my other part inquiry. Thanks.
32 1/8" long Peachtree Balance Needed...
Home Owner from ILLINOIS
Nov 6, 2017 6:06 pm
I need assistance with a 32 1/8" long Peachtree Balance replacement.
The window sash weighs about 22 lbs.
If weighed without balances it was about 20 lbs.
(It is for a sash that is: 27 1/2" wide x 32 1/8" long.
It says 3072 1 LK Caldwell on it. This is different than my other part inquiry. Thanks.
The window sash weighs about 22 lbs.
If weighed without balances it was about 20 lbs.
(It is for a sash that is: 27 1/2" wide x 32 1/8" long.
It says 3072 1 LK Caldwell on it. This is different than my other part inquiry. Thanks.
4 Replies
Paul from SWISCO
Nov 14, 2017 10:49 am
To replace your original balance, order the S745-32 and choose stamp "31.25-4". However, this will replace a "3072" stamp for 24 to 28 pound sashes. If your sash is 20 pounds, you will want a lower option. Did you find that it was hard to close the window before, when your "3072" balance was still functioning? I'm wondering if your balance was too strong originally.
Quick Learner from IL
Nov 17, 2017 11:48 pm
Yes, the lower sash was very difficult to close with the "3072" balances. What balance do I need to make the window operate correctly. Thank you, Paul.
Paul from SWISCO
Nov 20, 2017 1:41 pm
I thought that might be the case. For a 20 pound sash, I recommend the S745-32 with 31.25-3 option. That's for sashes weighing 17 through 23 pounds.
