3240 3.S.I PA

A home owner from Reno, NV says:
August 30, 2022
1/2" straigh plain style 33" long channel.
1-1/8" winged bottom fitting.
28 lb. sash weight.
Thumbnail of the uploaded file named IMG_1683.jpg
Thumbnail of the uploaded file named IMG_1685.jpg
Thumbnail of the uploaded file named IMG_1686.jpg

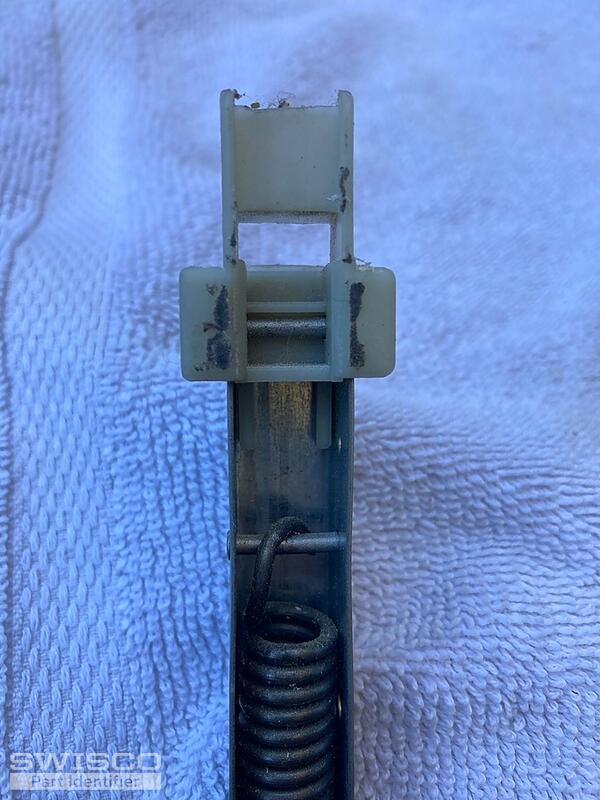

Thumbnail of the uploaded file named IMG_1687.jpg

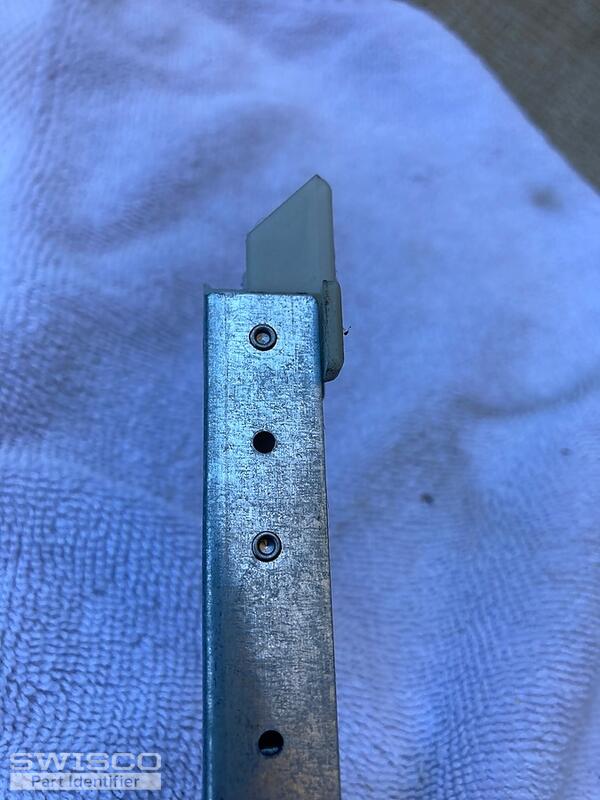

Thumbnail of the uploaded file named IMG_1688.jpg
Profile picture of Emily
Emily from SWISCO responded:
September 1, 2022

Hi there!

It appears you have either our S380-33 or S385-33 channel balance. The important difference between these two similar looking parts is the size of the bottom shoe. The Series 380 has a 1" deep shoe, and the Series 385 has a 1-3/32" deep shoe. Double check your measurement and refer to the image below to see which one matches up. You will also need the 3240 strength option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
33" Series 380 Channel Balance
33" Series 380 Channel Balance
S380-33
$11.52
33" Series 385 Channel Balance
33" Series 385 Channel Balance
S385-33
$11.52
