32"x40" double hung parts

Landlord from Michigan

Nov 10, 2020 1:54 pm

hello please ID parts needed and send me est
Cost plus frt.

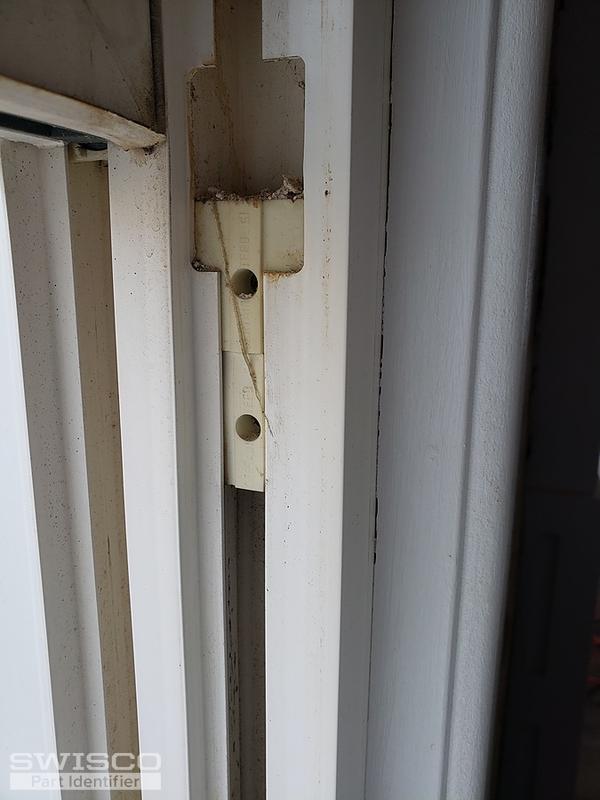

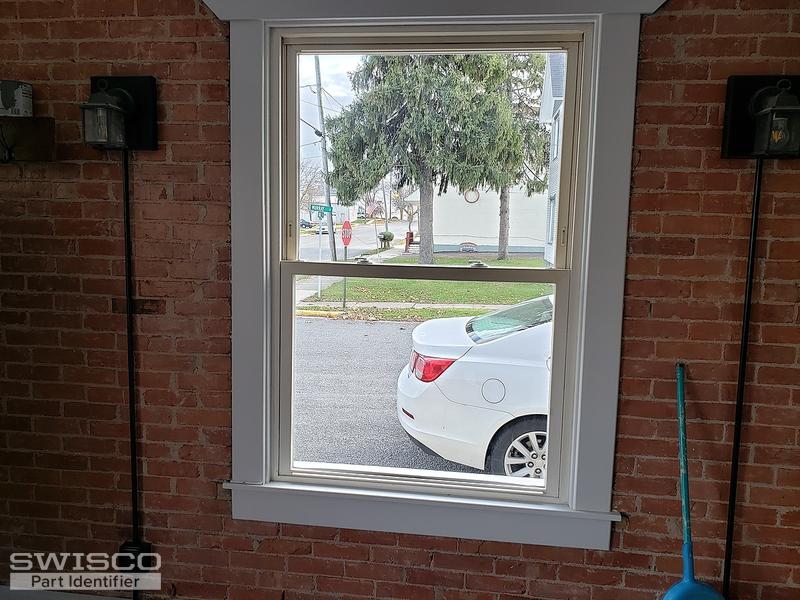

Window 32"x40" double hung lifts up but not down? Pivots,guide shoe,coils?

Thank you,
Doug

5 user uploaded images

4 Replies

Tom from SWISCO

Nov 16, 2020 2:32 pm

Thanks for posting, Doug. Looks like you have old Certainteed windows. With that in mind, I recommend the following parts: the 15-192 pivot shoe, the Series 170 and Series 171 coil springs, the 15-156 cover, 15-157 drum, and finally the 26-175 pivot bar. The video below will show you how all these parts work together.

Landlord from Michigan

Nov 17, 2020 10:23 am

Thank you for the reply, im having a problem finding out the springs weight number. As the windows will not close after opening. Is there a way to calculate the springs weight by the window size?30x40 double clad lower casement? Best Regards Doug

Tom from SWISCO

Nov 17, 2020 11:57 am

In my experience, there isn't a reliable way to determine spring strength from window size alone. There are a lot of variables that would still effect the weight of the sash, like what kind of glass is uses and how many panes are in there, the material used in its construction, etc. The best method is to get the number printed on the old springs. If that's not possible, then I need to know the exact weight of the sash instead. You can determine that by placing it on a scale.
