33 C BSI and 27 C BSI Channel Balancers

A home owner from Florida says:

February 3, 2018

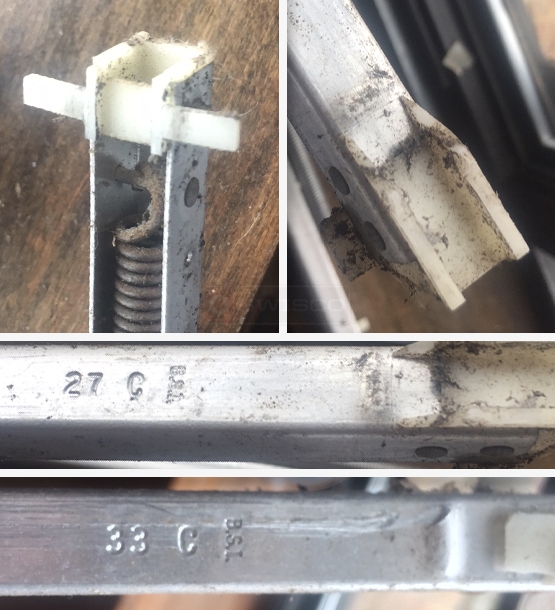

They are 1/2" channel balancers, two different lengths from separate windows. One is stamped with B.S.I. 27 C but measures 28" the other is stamped B.S.I 33 C but measures 34" long. Both balancers have the same end pieces, the T shaped adapter on the spring end is about 1 3/8" wide. The far side near the stamp measures 15/16" wide on the side with arms and 5/8" on the other side.

Please let me know what the corresponding balancers are so I can purchase ~20.

Thank you for the help,
Nicholas

Tom from SWISCO responded:

February 9, 2018

Thanks for posting, Nicholas. We can help replace this balance, though it will have to be specially made. I will be using a standard 1/2" wide channel balance but with our 15-005 bottom shoe and 19-037 top attachment installed. Does that look good to you? If so, can you confirm exactly how many of each you need? You said you needed around 20, but the way our order links work require an exact quantity. Once I have that, I'll email you the order link, which includes a price quote, for you to review.

A home owner from Florida says:

February 9, 2018

Thank you for the response, I will measure the shoe and ensure it is about the same and I will do a total on the balances I need by length.

I also need another part sold by swisco and I will put the part number and total amount needed so you can include them in that invoice if possible.

A home owner from Flordia says:

February 11, 2018

Tom,

For the balancers I will need
4x- 33C (34")
2x-15D (16")
12x- 27C (28")
with the 15-005 and 19-037.

I also need 10x Sash Guide pairs, Product Code 18-118.

Thanks

Tom from SWISCO responded:

February 16, 2018

Sure thing. I will email you three order links for each type of balance. You can use these links to add the special products to your cart, where you can then continue shopping.

Winged Channel Balance Shoe, 1" Depth

15-005

$0.74

Channel Balance Top, Rollyson

19-037

$1.19
