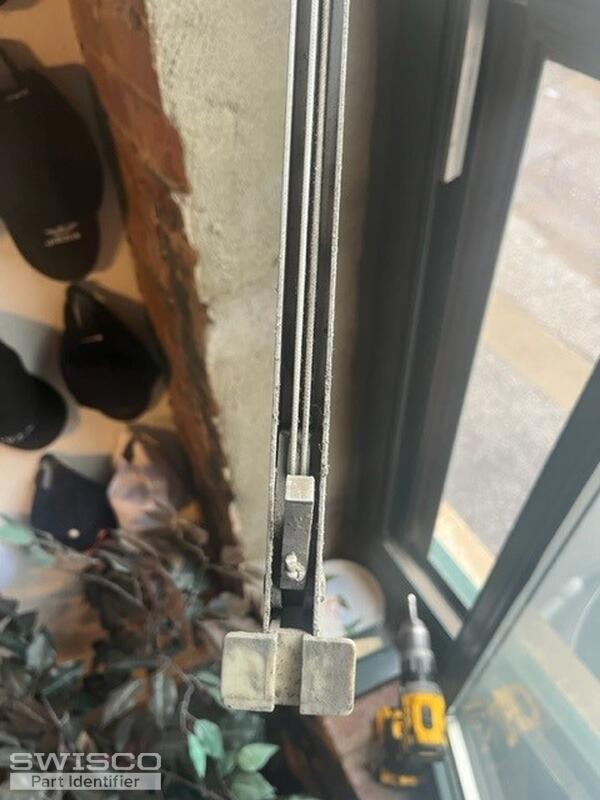

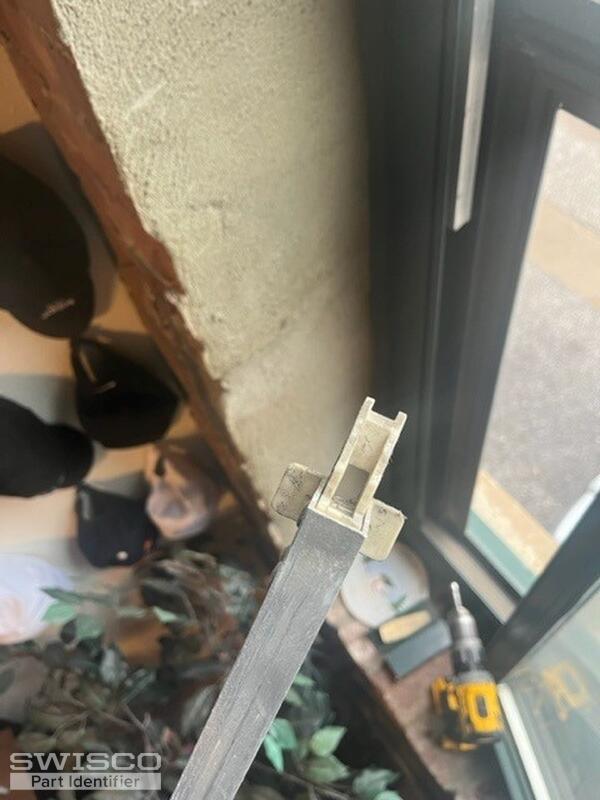

need a part number for this channel balance please. It's 33" long the weight was rubbed off. For aluminum sash single hung window. Also have a balance with a stamp that says 56-86L. need a part number for that as well. 1 3/16 wide, 1 3/16 deep.
Aluminum sash, single hung as well
33" balance
Contractor from Lawrence, Kansas
Nov 27, 2023 12:13 pm
5 user uploaded images
2 Replies
Tom from SWISCO
Nov 29, 2023 11:03 am
Hello! Thanks for reaching out to us. I think we can help with this balance, but it will have to be a custom order due to its configuration. What you have here is an extra-heavy duty balance assembly that's made for heavier grade windows.
Before we go any further, though, I'd like you to verify the stamp. I know you said that it rubbed off but it is an essential detail and we will need that before we proceed. If you can't make it out, then we will instead need to know the precise weight of the sash, down to the ounce.
As for the 56-86L balance, can you verify that this is the same configuration? I'd also like you to confirm the length of the metal channel for that application.
Finally, please tell me how many of each length you needed.
