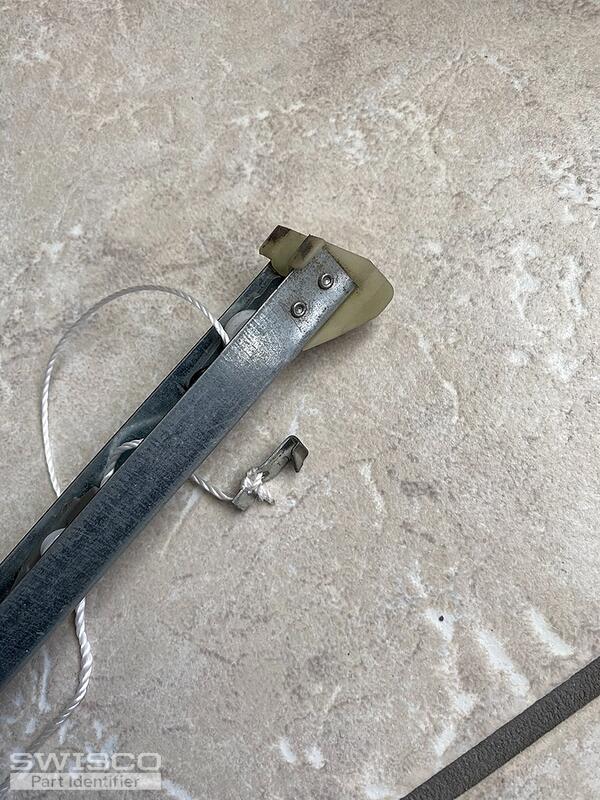

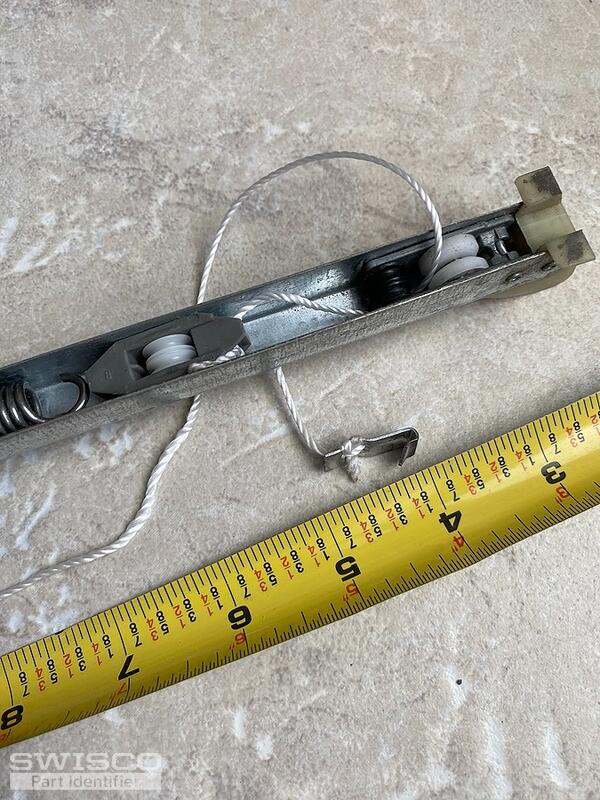

Measures 33", clip is 7/8", 1/2 inch wide.
33 inch Channel Balance - marking is 3230 (B.S.I.)
Quick Learner from Riverton, Utah
Jun 6, 2024 2:19 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Jun 7, 2024 12:51 pm
Hello,
With this combination of attachments, you could have either the S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You'll also need 3230 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.
Comparison of the S380 and S385 balance shoes.
