33 inch channel balance 32-4 LX CMC 11

Home Owner from Santa Maria, California
33 inch channel balance 32-4 LX CMC 11

Hello, i am looking for this part. My windows are milgard. Can someone help?
1 user uploaded image
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

I am confident we can replace these balances for you, but that stamp code only tells us the strength of the spring inside the balance; it says nothing about its identity. To know its identity, can you show us pictures of the nylon fittings on either end of the balance? From there, we'll do our best to narrow down what you need. Thanks.

Home Owner from Santa Maria, California

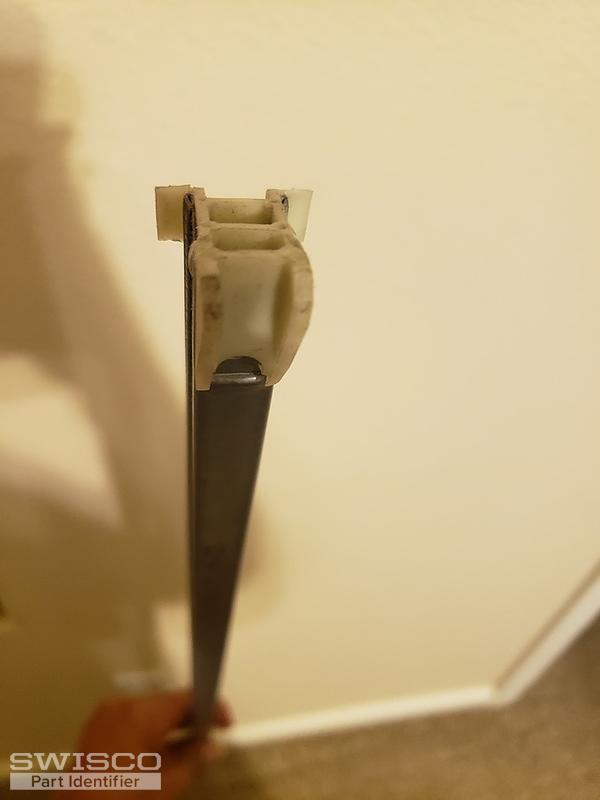

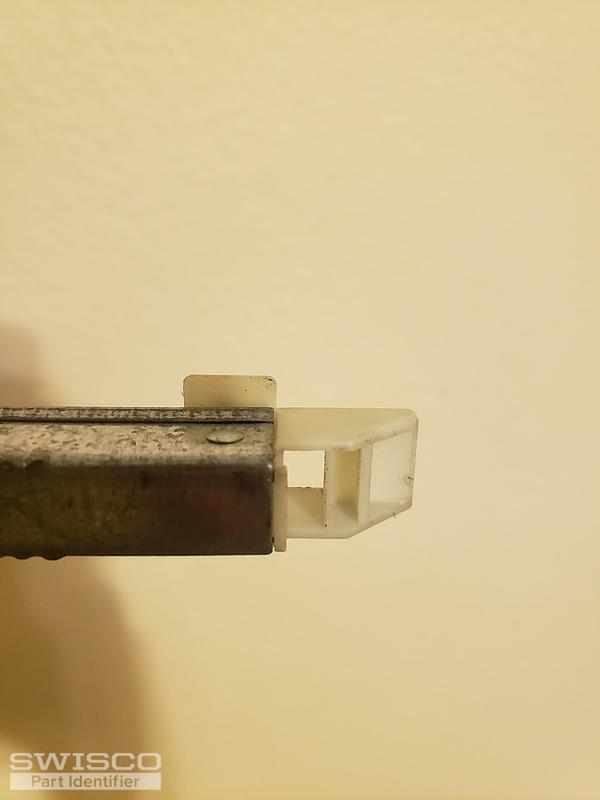

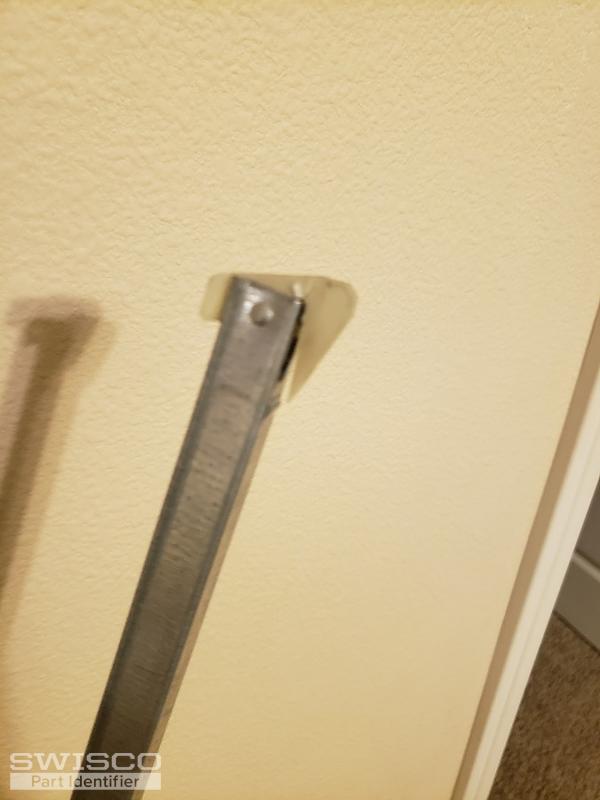

Sorry about that. This is my first DIY window repair. Here are some more pics. I hope they help. Let me know what else you need.
5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

No worries, thanks for getting back to me with these pictures. This looks like either an S380-33 or S385-33. The only difference between these two balances is the depth, or 'heel-to-toe' measurement, of the bottom nylon shoe, so compare both with your old hardware and see which matches what you need. In either, case you will need a stamp option of 3240.

Home Owner from Santa Maria, California
Thank you very much for your assistance. I believe i
The correct part was was the S385-33. I put in an order and hopefully will get it soon so I can fix my window. Thanks again
Bob
Bob from SWISCO
SWISCO
Expert

My pleasure. Let us know if you need anything else, and many thanks for your business--we appreciate it.
