33 inch (metal only), 1/2inch wide, 5/8inch deep, channel
Home Owner from Los Angeles, CA
Oct 10, 2022 5:51 pm
Hi, I'd like to order six of these items, if you have a match.

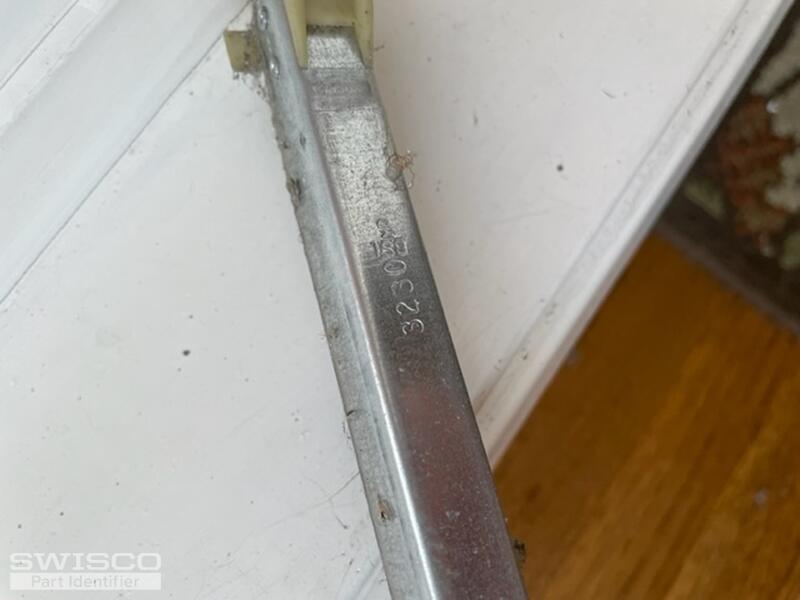

4 user uploaded images
3 Replies
Emily from SWISCO
Oct 12, 2022 3:33 pm
Hello there!
I recommend either our S380-33 or S385-33 channel balance based on what you show here. The best match will ultimately depend on the size of the bottom shoe. Our Series 380 comes attached with a 1" deep shoe, while the Series 385 comes attached with a 1-3/32" deep shoe. Measure as shown in the image below to determine the best fit. You will also need the 3230 spring strength option.
Comparison of the S378, S380 and S385 balance shoes.
Home Owner from Los Angeles, CA
Oct 17, 2022 3:00 pm
Hi,
Thanks for the details. I will place the order accordingly.
Richard
Thanks for the details. I will place the order accordingly.
Richard
