3330 Channel balance

A quick learner from Albuquerque says:

Window channel balance. See photos attached 34in stamped 3330

Thank you

Roseanne

Thumbnail of the uploaded file named 16DD93FD-867B-4777-9CFD-2EC4697D908A.jpeg
Thumbnail of the uploaded file named FE0CAB2D-EA88-4D0E-9FCF-57F9262BCC80.jpeg
Thumbnail of the uploaded file named F9740DB8-EB99-4DDB-8924-BC97285EF1E2.jpeg

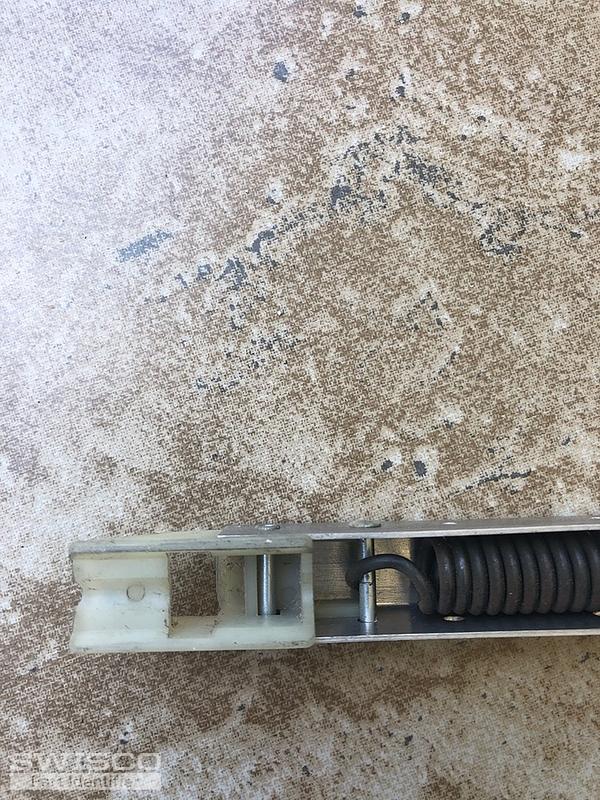

Thumbnail of the uploaded file named B5DEDBB2-BA2C-45B7-8124-21B30FED1C01.jpeg

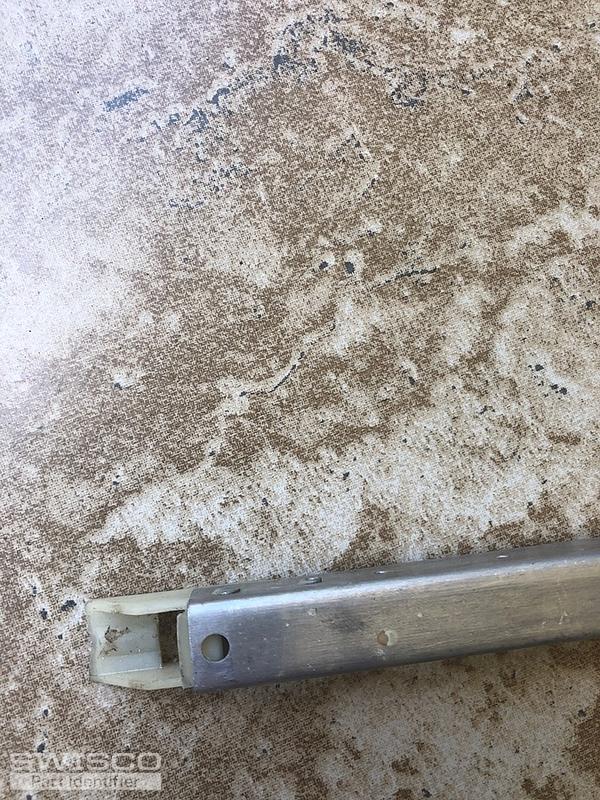

Thumbnail of the uploaded file named 16755585-E4EC-4123-862A-FDC55349B29D.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Hey Roseanne. Looks like the top of this balance has a nylon fitting with no wings (that is to say, tabs on either side) like our 19-002, while the bottom shoe has wings. This is like our Series 350 Channel Balance. However, this balance uses our 15-004 Bottom Nylon Shoe, which has a depth (or heel-to-toe measurement) of 1-3/32". It appears to me that your balance might have a shoe with a smaller depth than that, perhaps our 15-029 7/8" deep shoe. Please measure this to confirm what you need. If you need balances with the 15-029 shoe attached, none of our standard balances feature this, but we'd be happy to custom build them for you. Many thanks.

A quick learner from Albuquerque says:

Hello, yes it measures 7/8 in. I also need(4)22 in with a stamp#2130 and (18) 28in with a stamp#2730. With the same top and bottom attachments if possible?

Thank you,

Roseanne

Profile picture of Bob
Bob from SWISCO responded:

No problem, Roseanne. I just sent you an email with 3 custom links enclosed:

  • One to order (4) 22" balances, stamped 2130, with the 19-002 Top and 15-029 Bottom attached.
  • One to order (18) 28" balances, stamped 2730, with the same fittings attached.
  • One to order (2) of the 34" balances, stamped 3330, with the same fittings attached.

If you need a different amount on any of these, or have any questions prior to ordering, just let me know.

A quick learner from Albuquerque says:

Hello, The links you sent me have expired. will you resend me the links for (2) of the 34" balance,stamped 3330 With the same fitting attached.

(6) of the 28" balances, stamped 2730 with the same fitting attached.

thank you,

Roseanne

Profile picture of Bob
Bob from SWISCO responded:

Hey Roseanne. I just sent you an email with two custom links enclosed: one to order (6) 28" balances stamped 2730, and another to order (2) 34" balances stamped 3330. Both sets have the 19-002 Top and 15-029 Bottom attached. Let me know if you have any further questions before placing your order.
