Home Owner from Arizona

Nov 14, 2022 12:00 am

I need 2 replacement window channel balances

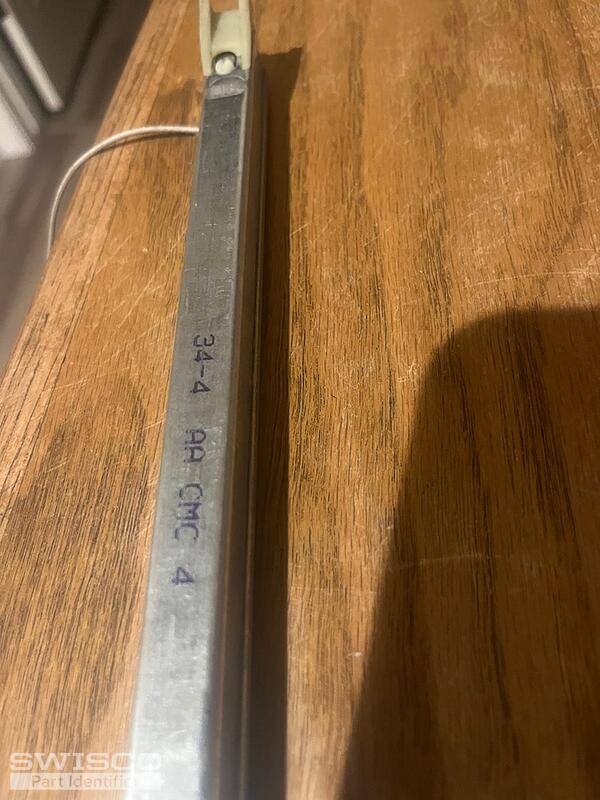

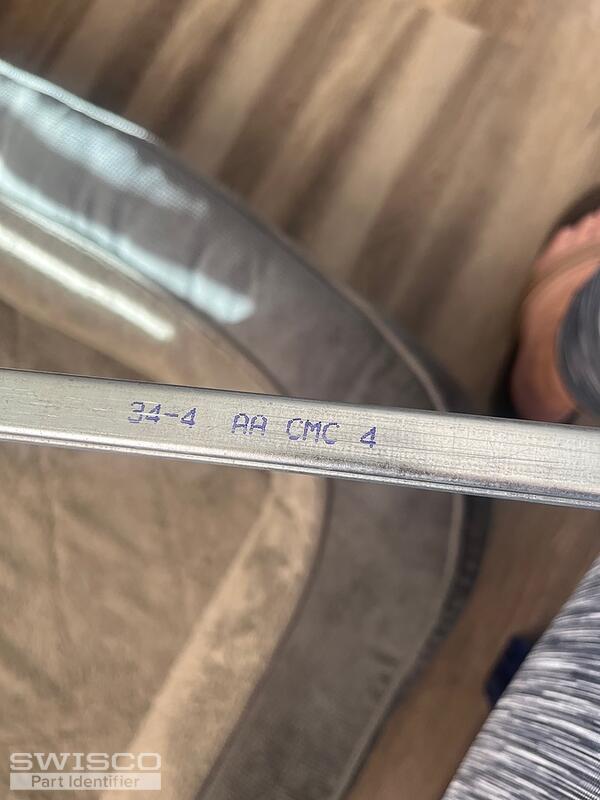

Stamp on current atrium window
34-4 AA CMC 4

Length 33"
Shoes 5/8" & 1 1/4"

Can you tell me which one I need to purchase please and thank you ?

1 user uploaded image

6 Replies

Emily from SWISCO

Nov 18, 2022 10:58 am

Hi there!

I'm afraid I can't identify your balance from this photo alone. I would need to see clear photos of the top and bottom fittings to determine a match. Your metal channel should also measure as 35", not 33". Can you confirm that you only measured the length of the metal channel?

Home Owner from Arizona

Nov 19, 2022 9:03 pm

I didn't measure wrong. It is 35".

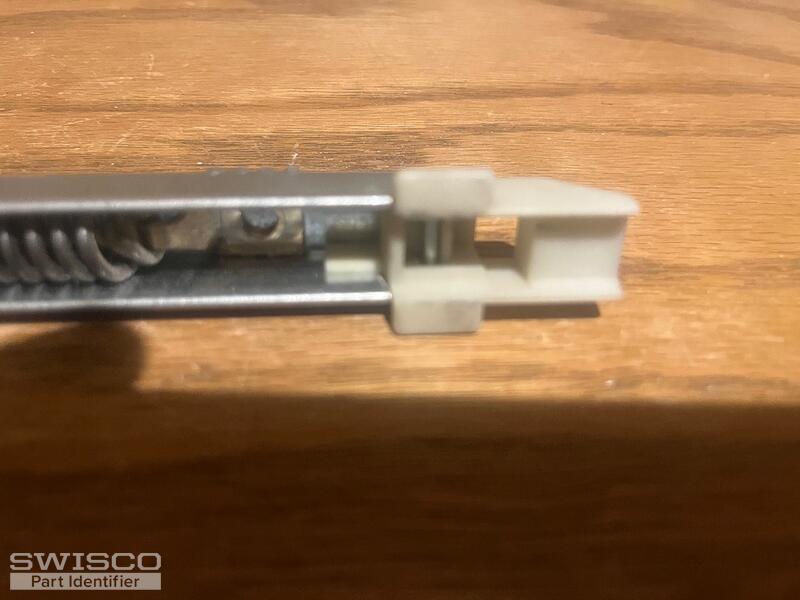

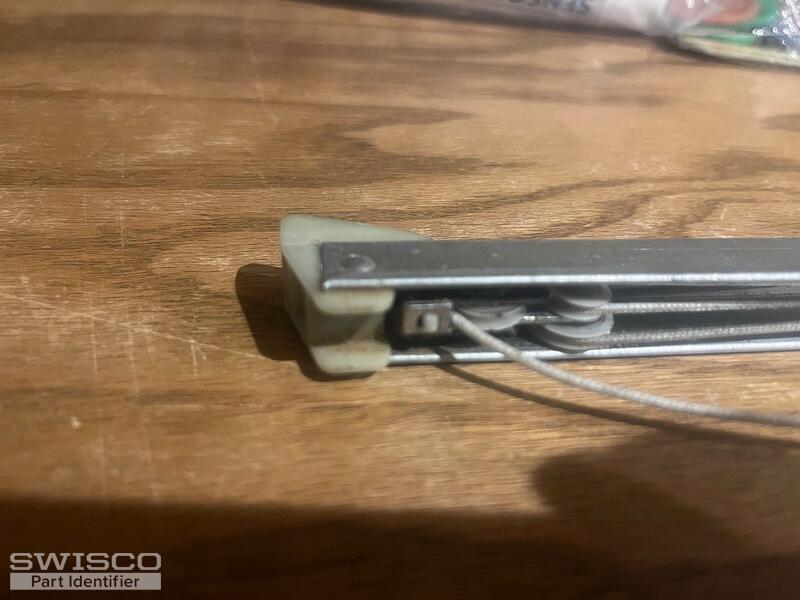

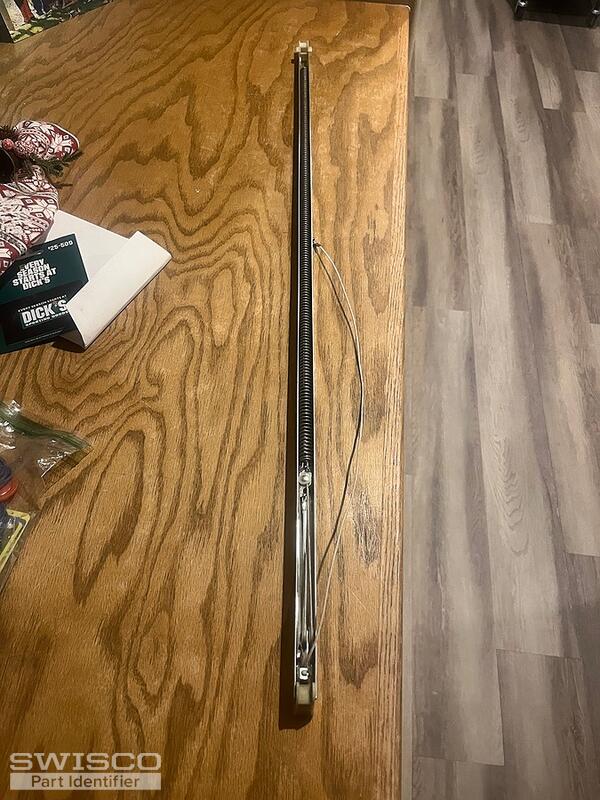

4 user uploaded images

Tom from SWISCO

Nov 21, 2022 10:36 am

Thanks for verifying. Based on the design of this balance, my first recommendation would be the S395-35. This comes with a 19-005 top and 15-001 bottom nylon fitting, so as long as those match up to your old fittings then you should be in good shape.
