35" Replacement balancer coil needed - for Milguard Window (2013)

A home owner from Albany, CA says:
November 22, 2020

Dear Swisco,

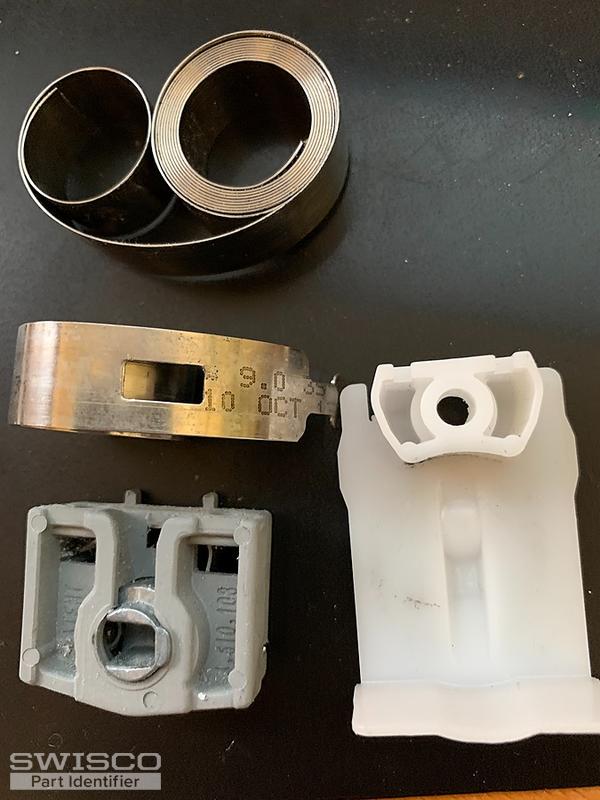

I'm replacing the coil balance in a Milguard Ultra fiberglass window (model 3285U - circa 2013).

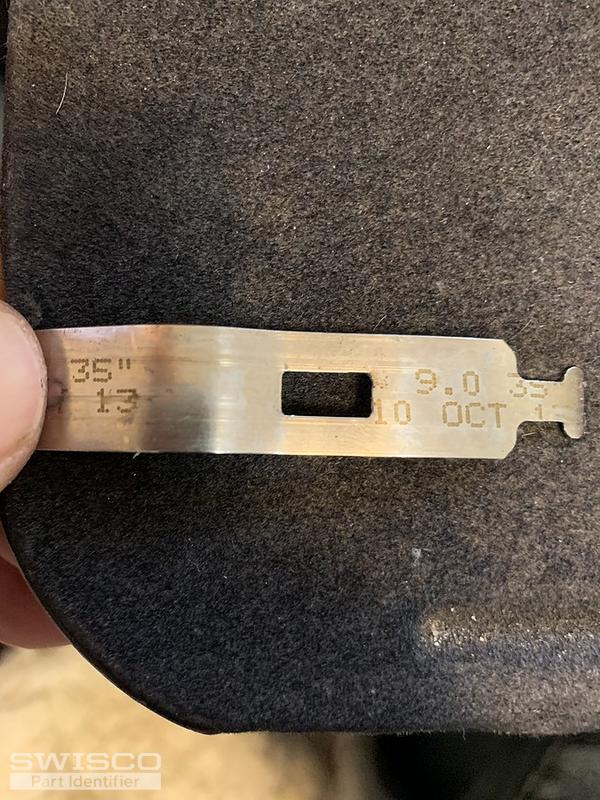

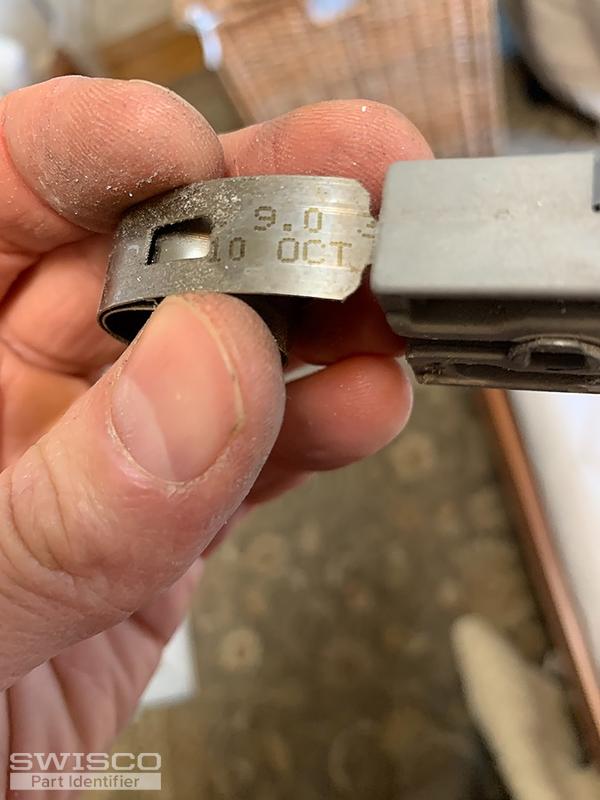

The coil is 1/2 wide and appears to be 35" long, based on the printing on the coil. The printing reads as follows:

9.0 35"

10 Oct 13

Can you tell me what replacement part to order?

Thanks in advance,

Zac

Thumbnail of the uploaded file named IMG_6597.JPG
Thumbnail of the uploaded file named IMG_6598.JPG
Thumbnail of the uploaded file named IMG_6599.JPG
Profile picture of Bob
Bob from SWISCO responded:
November 25, 2020

Hey Zac. This looks like our 15-191 Pivot Shoe, which can use the Series 160 1/2" Thick Coil Springs. A stamp of 9 indicates you need an S160-9 9 lb spring. If your original cover is undamaged there's no need to replace it; but otherwise, see our 15-150S. Let me know if you have further questions.
A home owner from Albany, CA says:
November 25, 2020
Bob - thank you so much! What a great service you provide.

- Zac
