36 in channel balance- non-tilt : SWISCO.com

Quick Learner from Tampa Fl

Mar 9, 2023 5:23 pm

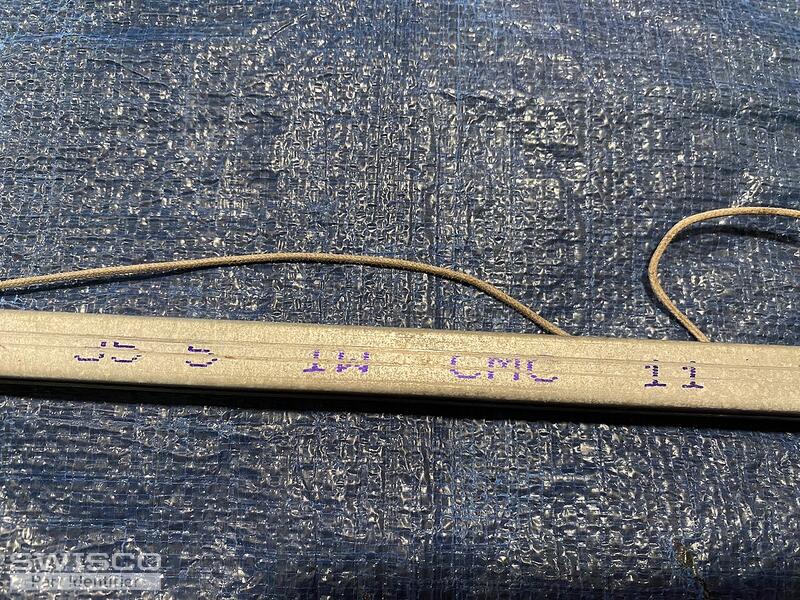

Marking on Seasonshield window: 35 5 IW CMC 11

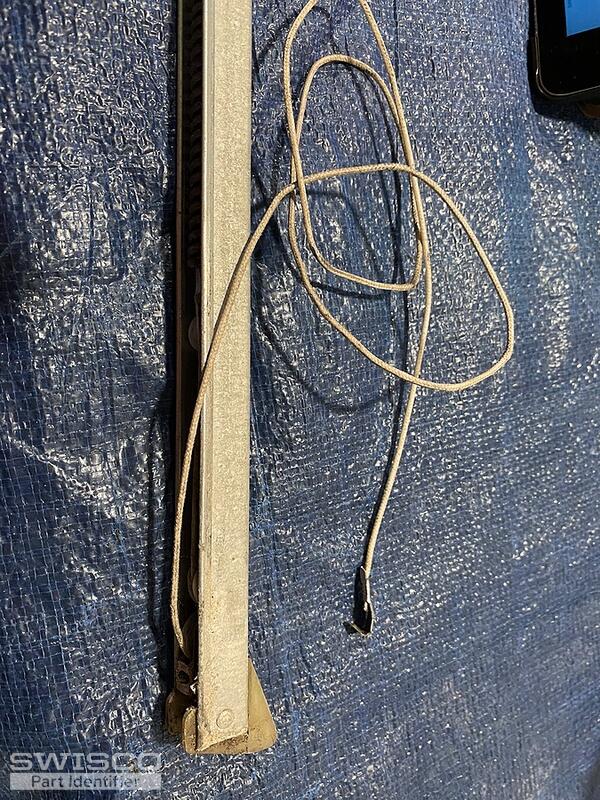

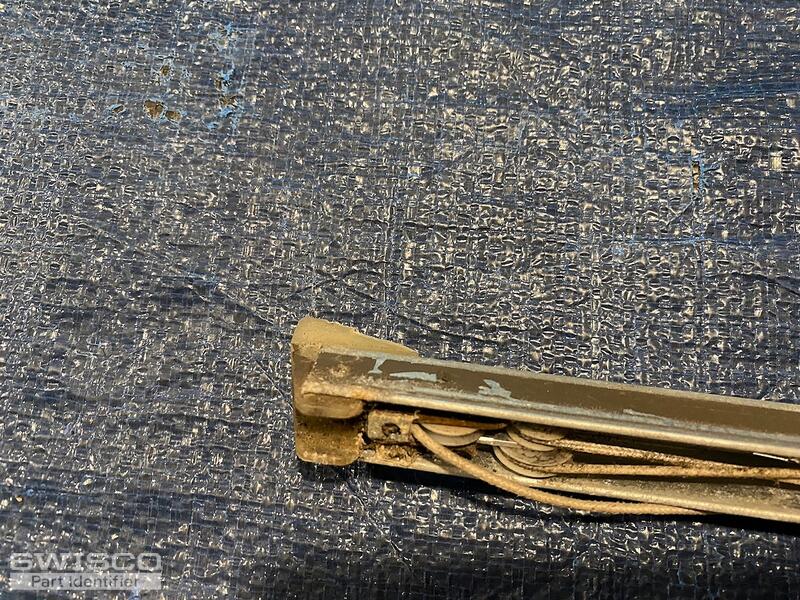

36 in length channel

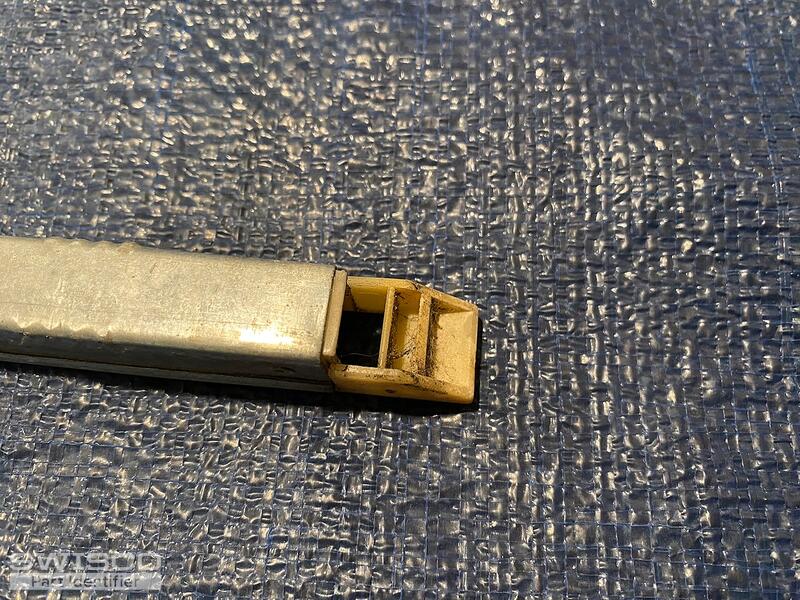

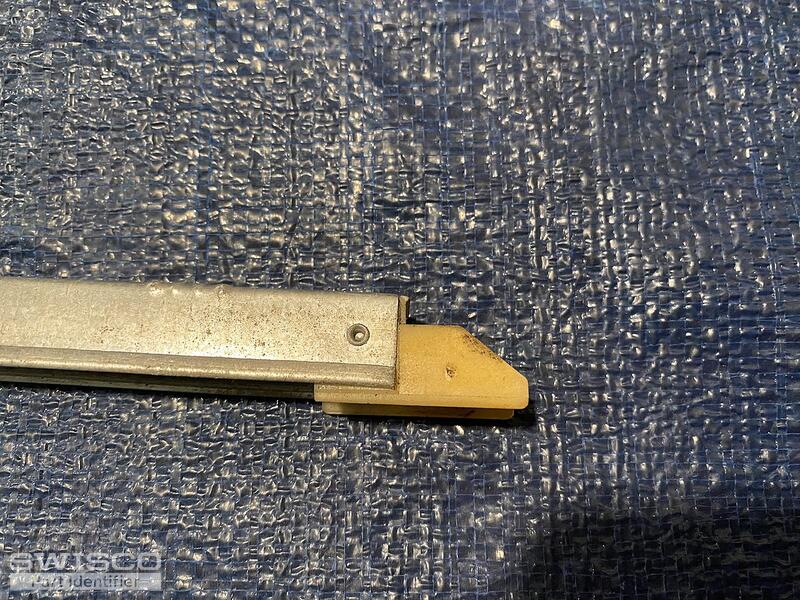

1 in bottom piece

5 user uploaded images

6 Replies

Lauren from SWISCO

Mar 10, 2023 8:47 am

Hello, thank you for posting,

Since the depth of the shoe is 1", please review the S351-36 channel balance with a 3550 stamp option. Review the overall style to confirm a good fit! Please let us know if you have any additional questions!

Comparison of the S351 and S390 balance shoes.

Quick Learner from Tampa Fl

Mar 10, 2023 2:36 pm

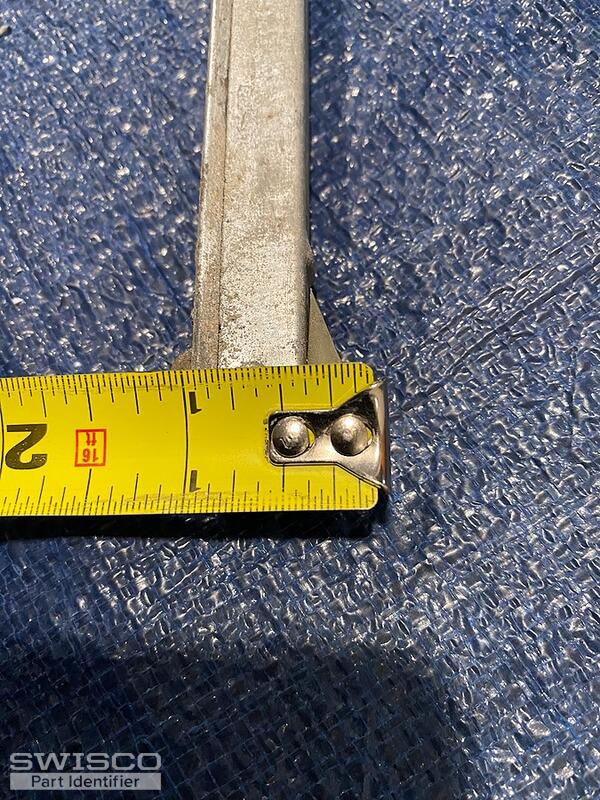

Or it may be an S390. The depth is 1 1/16". See picture. Otherwise the rest looks correct.

1 user uploaded image

Lauren from SWISCO

Mar 10, 2023 3:38 pm

Hello,

If your balance shoe measures over 1", we recommend the Series 390 as the shoe may been 1-1/8", but has worn down over time. Please review and let me know if you have any additional questions.

Quick Learner from Tampa Fl

Mar 10, 2023 4:01 pm

You have been very helpful. Thanks for confirming this part. I now need to check all other windows (different sizes), and put together a full list of needed replacement parts. I now know how to better determine the correct part. Once done, I will re-submit back to you for confirmation. Thanks

Lauren from SWISCO

Mar 13, 2023 3:09 pm

Sounds good! I was happy to help, of course. We'll be here to help whenever you're ready.
