3750337 STANLEY upper sliding closet door fixtures

Home Owner from U.K.

Jan 29, 2020 6:02 pm

Hi there

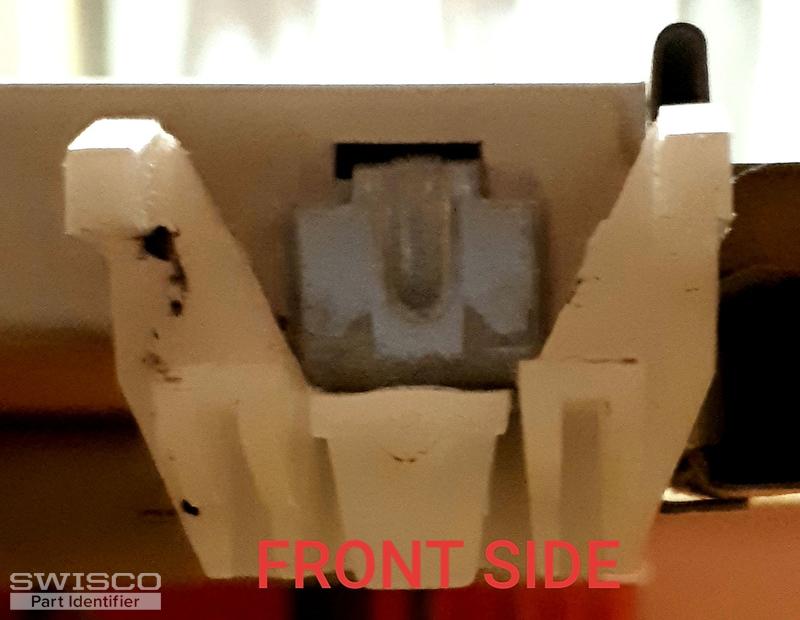

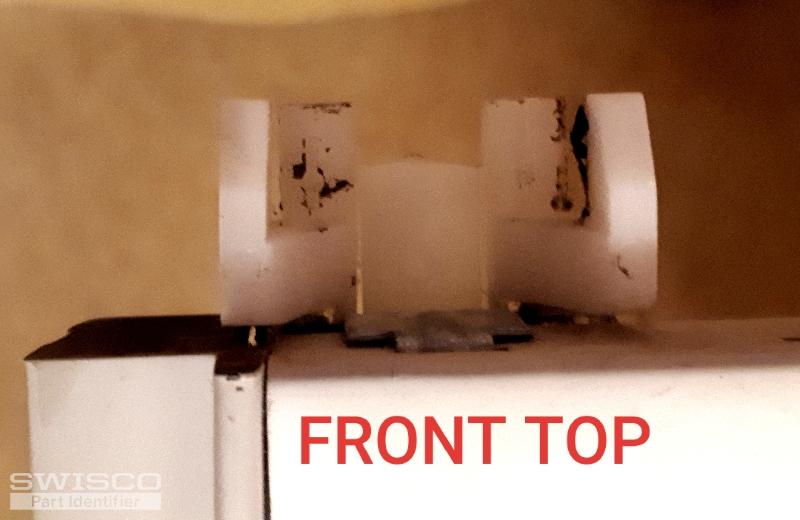

We have old closet doors which seem to have Patent 3750337 STANLEY upper sliding closet door fixtures. I'm not sure if there is a part missing as they have come off their track and there is no obvious spring or clip to re-attach them but they don't seem to be broken. I can't find an original installation manual diagram so I'm not really sure how they attach?
Can you help at all?
Many thanks

5 user uploaded images

4 Replies

Bob from SWISCO

Jan 30, 2020 10:54 am

Thanks for posting. This exact guide isn't made anymore, but I believe that you can use our 23-093 to replace it. I know the design is different but it should function the same way. Let me know what you think.

Home Owner from U.K.

Jan 31, 2020 1:54 am

Thanks for the reply. I'm wondering how easy these brackets are to get on and off? They seem to slide underneath the door frame and clip down. The door itself is only 1/4" hardboard so you cant screw into it.

Tom from SWISCO

Jan 31, 2020 11:27 am

That's right, these just hook in. They can be set pretty firmly in place so it might take some elbow grease to take them out. I usually use needle nose pliers and sort of wiggle them out.
