38-078 casement lock

A landlord from Creston Ohio says:
Dave P.

Attached are the dimension and picture of the current window lock. we are looking at removing one in room for easy opening of one window in our school. We will need around 30 of them let me know if the item number 38-078 would work to replace this.

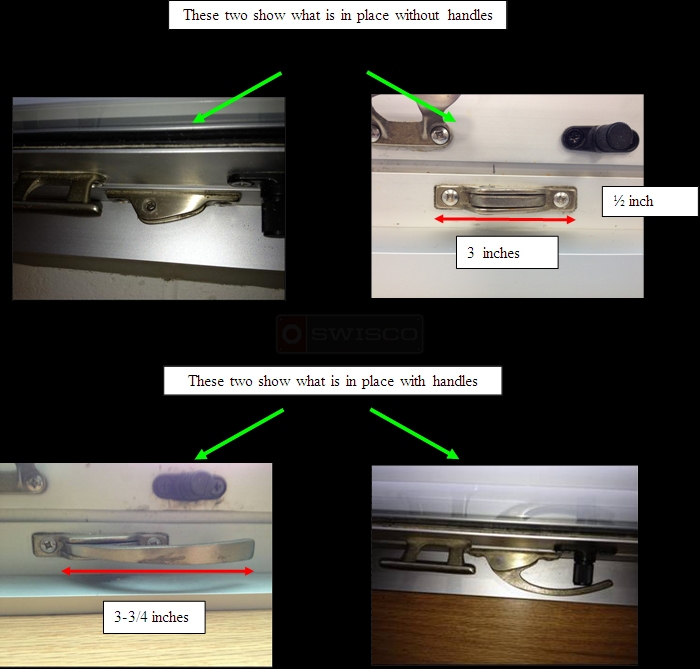

A customer submitted image of their casement window lock.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
Hey, thanks for posting. I'd be happy to help you find a replacement for this hardware. I don't think our 38-078 would be a good match, since it looks like you have a commercial window. Could I see a few pictures of your lock removed from the window? That might give me a better idea of what you have. Thanks!
A landlord from Creston Ohio says:
Here is the lock removed from the window.

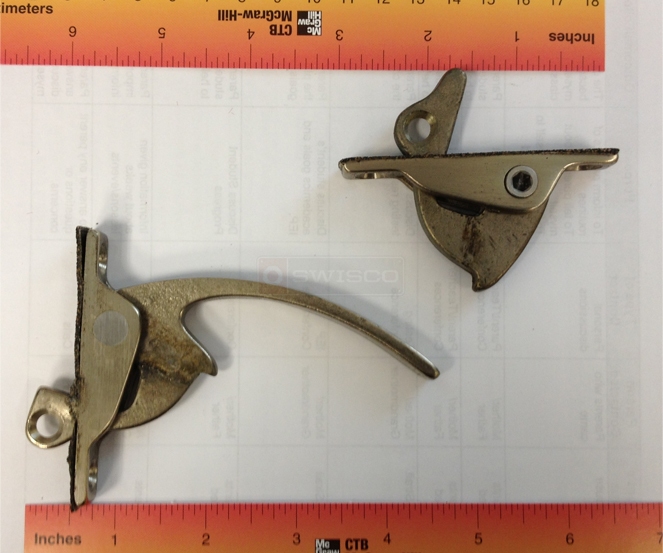

A customer submitted image of their window lock.
Profile picture of Tom
Tom from SWISCO responded:
Thank you for the images! We are currently investigating some possible replacements, but we just need a bit more information. Take a look at the image below.

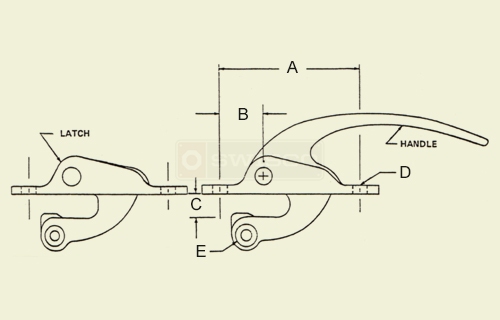

A SWISCO diagram of dimensions needed.


Could you give me the dimensions for your lock as shown in this diagram? I'll need A, B, C, D, and E. Thank you!
