39-012

A home owner from Smyrna, Georgia USA says:
October 16, 2019

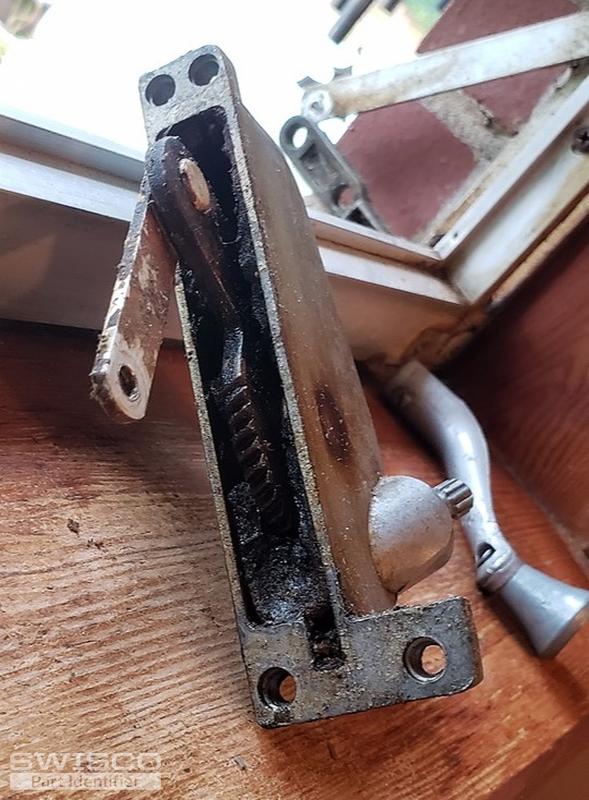

the measurements all seem to match. question about the 3/8 hole- mine is threaded to accept threads on bolt/screw. Are there threads in that hole? if not I possible could do a work around or less you have the exact match.
Thumbnail of the uploaded file named 20191015_133334.jpg
Thumbnail of the uploaded file named 20191015_133343.jpg
Thumbnail of the uploaded file named 20191015_172719.jpg
Thumbnail of the uploaded file named 20191015_135206.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 22, 2019

Thanks for posting. Looking at your photos we believe you have an older style Air-Control window. Take a look at 39-061 operator used on Keller windows. It has the threaded hole in the link arm and the same 1-1/8" bottom hole locations. Also take note you operator has two holes at the top of the housing. The 39-061 top hole is Off set so it should line up with one of the holes at the top. Let me know what you think!
A home owner from Smyrna, Georgia USA says:
October 25, 2019
thank you so much. I will try 39-061, if it works will order a few more ;)
A home owner from Smyrna, Georgia USA says:
November 6, 2019
Worked out great! Thx
Profile picture of Casey
Casey from SWISCO responded:
November 7, 2019

Great! We are happy to hear that everything worked out the way it should have.
