Will the 39-016 Fit for my Pan Am window

Start a new Discussion

Handy Person from Buford, GA

Nov 28, 2017 9:57 pm

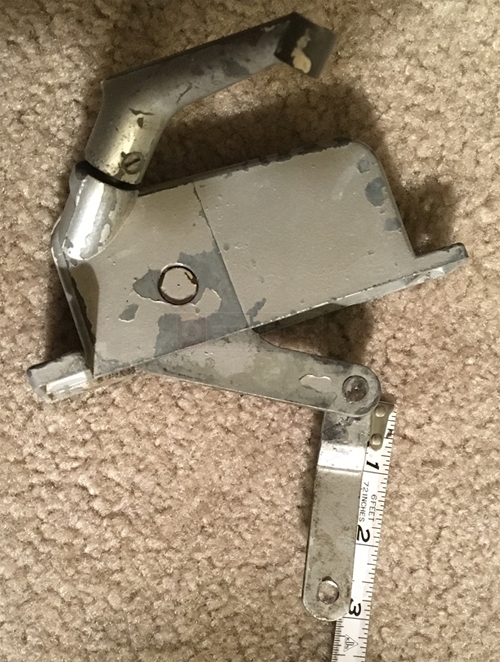

I am replacing a LH Type II operator on a Pan Am window. Please see picture where the hole-to-hole arm length is 2 3/4

4 Replies

Tom from SWISCO

Dec 4, 2017 12:16 pm

We may be able to help. Can you just show me a picture that shows this operator's hole pattern? That would be a huge help. Can you also confirm your dimensions? It looks like your post was cut off, so I'm not sure if you had more.

Handy Person from Buford

Dec 4, 2017 9:35 pm

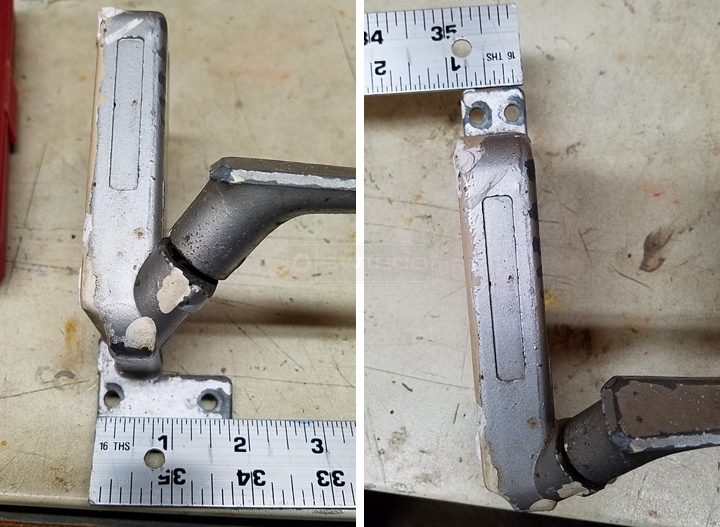

Attached are two pictures. It is a standard Type II hole patterns.

Yes, the post was cutoff. The end arm is 2 3/4" hole-to-hole. The hold is threaded with 5/16 threads.

User submitted photos of a window operator.

Dave Sr. from SWISCO

Dec 7, 2017 1:29 pm

I agree, it seems the 39-016 operator used by Pan Am matches yours. I also recommend a shoulder screw like our 33-067, along with a 33-206 washer. If you also need mounting screws, see our 33-081.
